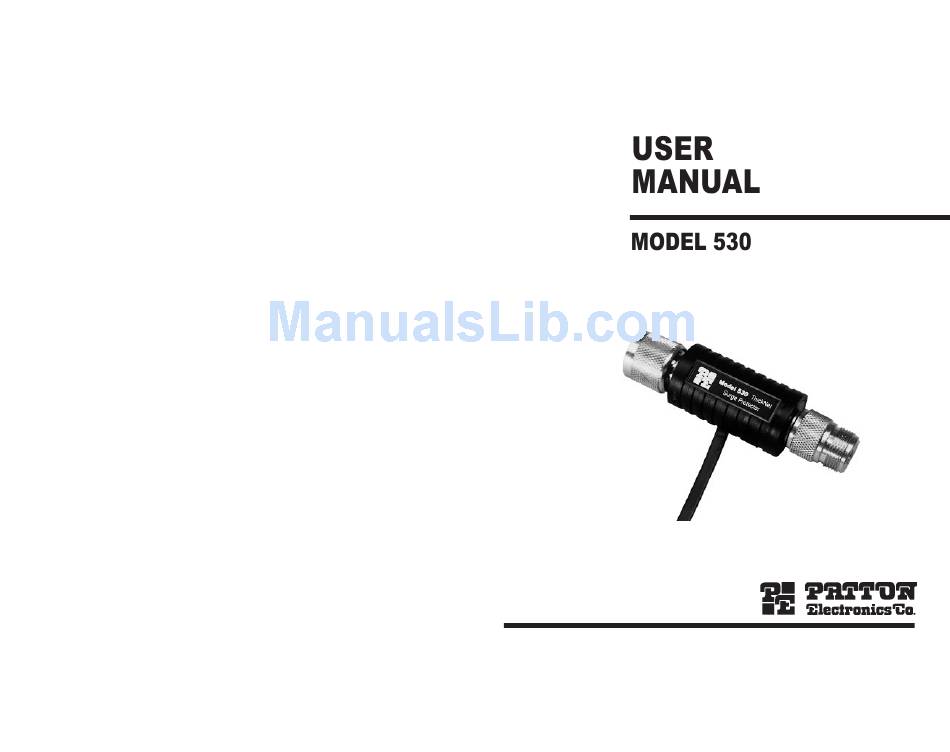

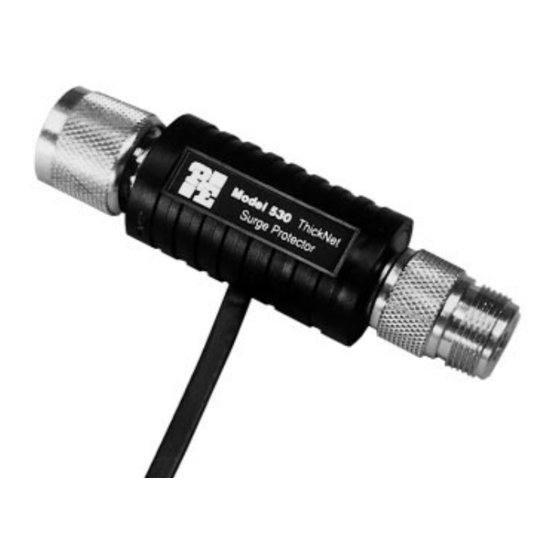

- Page 1 Ethernet (ThickNet) Surge Protector SALES OFFICE Part# 07M530-B (301) 975-1000 Doc# 074311UB TECHNICAL SUPPORT Revised 1/13/94 (301) 975-1007 http://www.patton.com...
- Page 2 Thank you for your purchase of this Patton Electronics product. Patton's Model 530 is easy to install and should give you years of This product has been thoroughly inspected and tested and is warranted trouble-free service. Here are a few simple instructions to help you get for One Year parts and labor.
- Page 3 SPECIFICATIONS Interface: Ethernet (IEEE 802.3, Thicknet), N-type coaxial Size: 2.0" long x 1.0" diameter Circuit: Bipolar, solid state, bi-directional protection on N-type connectors Response Time: Less than 5 nanoseconds Input Capacitance: 18 pF Clamp Voltage: 25 volts at 100A (8/20 µ waveform) Surge Current: 400A (8/20 µ...
