- Page 1 USER M A N UA L MODEL 531 Ethernet (ThinNet) Surge Protectors Part# 07M531-B SALES OFFICE Doc# 074051UB (301) 975-1000 Revised 12/18/96 TECHNICAL SUPPORT (301) 975-1007 http://www.patton.com...

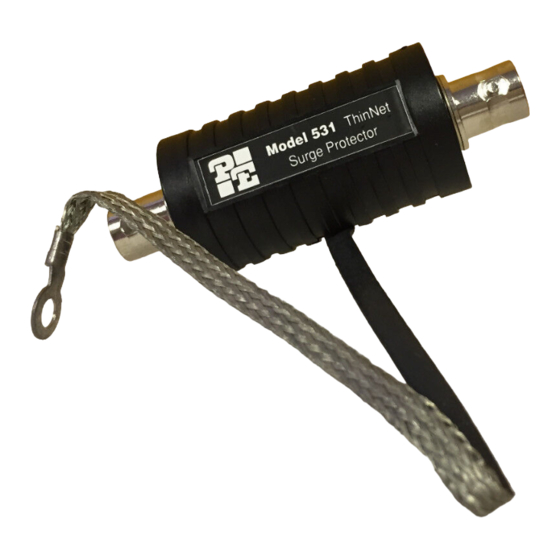

- Page 2 The Model 531 connects directly between incoming ThinNet data cables and LAN I/O ports. By shunting all threatening voltages to the chassis ground, the Model 531 ensures the integrity of the data in your LAN and protects connected equipment from lightning induced energies, AC power induction, electrostatic discharges and ground potential differences.
- Page 3 3.0 INSTA L L AT I O N Patton's Model 531 units are easy to install and should give you years of trouble-free service. Here are a few simple instructions to help you get things hooked up right: Standard Model 531 MF: 1.
- Page 4 APPENDIX A PATTON MODEL 531 SPECIFICATIONS Interface: Ethernet (IEEE 802.3, ThinNet) BNC coaxial Size: 2.0" long x 1.0" diameter Circuit: Bipolar, solid state protection on BNC connectors Response Time: Less than 5 nanoseconds. Input Capacitance: 18 pF Clamp Voltage: 25 volts at 100A (8/20 µ waveform ) Surge Capacity: 400A (8/20 µ...
