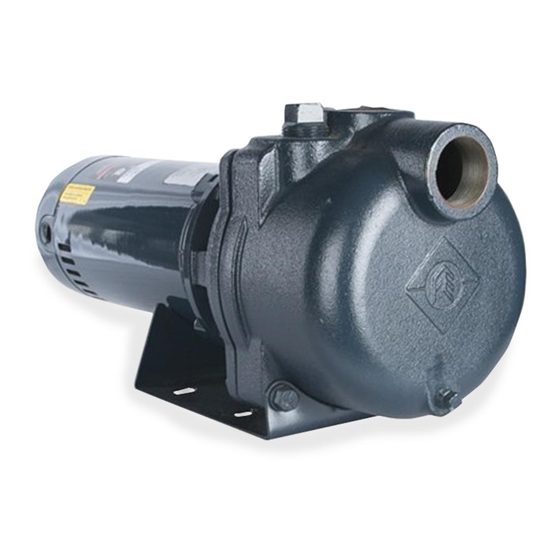

Self priming sprinkler pump
Table of Contents

Advertisement

Available languages

Available languages

Quick Links

BEFORE YOU START
BEFORE INSTALLING PUMP, BE SURE TO READ
THIS OWNER'S MANUAL CAREFULLY.
REFER TO PRODUCT DATA PLATE(S) FOR
ADDITIONAL OPERATING INSTRUCTIONS AND
SPECIFICATIONS.
C A U T I O N
• Keep work area clean, well-lit and uncluttered.
• Keep safety labels clean and in good condition.
• Replace missing or damaged safety labels.
• Wear safety glasses while installing or performing
maintenance on pump.
• Adhere to the guidelines of the National Electric Code
(NEC) or Canadian Electric Code (CEC), and any other
state and local codes for ALL electrical installations.
Check with the appropriate agencies or contact a
licensed electrician.
Most water system problems result from improper
installation. It is suggested that you read this
manual carefully before installing your pump. The
"TROUBLESHOOTING SECTION" will assist you in
locating and eliminating the cause of any trouble you
may encounter after installation. Check and make
available all the tools you will need to install your pump.
Required tools may include wrenches, pipe sealant, pipe
fi ttings and nipples, screwdriver, etc.
Self Priming Sprinkler Pump
OWNER'S MANUAL
Be sure to have available proper and adequate wiring
material to complete the installation correctly.
READ AND FOLLOW SAFETY INSTRUCTIONS
This is the safety alert symbol. When you see
this symbol on your pump or in this manual, look
for one of the following signal words and be alert to the
potential for personal injury:
warns about hazards that
D A N G E R
serious personal injury, death or major property damage
if ignored.
warns about hazards that can cause
W A R N I N G
serious personal injury, death or major property damage
if ignored.
warns about hazards that will or can
C A U T I O N
cause minor personal injury or major property damage if
ignored.
NOTICE indicates special instructions, which are
important but not related to hazards.
Carefully read and follow all safety instructions in
this manual and on pump.
WA R N I N G
W A R N I N G
HAZARDOUS PRESSURE: Do not run
pump against closed discharge. Release all system
pressure before working on any component.
C A U T I O N
Do not run pump dry. Fill pump with
water before starting or pump will be damaged.
The motor on this pump is guaranteed by the
manufacturer and in event of failure it must be returned
to an authorized service station for repairs. Motor
warranty is void if repairs aren't made by an authorized
repair station.
will
cause
WA R N I N G

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TurfBOSS TB15CI and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Franklin Electric TurfBOSS TB15CI

  • Page 1 BEFORE YOU START BEFORE INSTALLING PUMP, BE SURE TO READ THIS OWNER’S MANUAL CAREFULLY. REFER TO PRODUCT DATA PLATE(S) FOR ADDITIONAL OPERATING INSTRUCTIONS AND SPECIFICATIONS. C A U T I O N • Keep work area clean, well-lit and uncluttered. •...
  • Page 3: Electrical Safety

    ELECTRICAL SAFETY Make sure all ELECTRICAL POWER IS C A U T I O N OFF before connecting any electrical wires. Capacitor voltage may be hazardous. W A R N I N G To discharge motor capacitor, hold insulated handle screwdriver BY THE HANDLE and short capacitor terminals together.
  • Page 4: Pre-Installation Check

    PRE-INSTALLATION CHECK • Pump must not be more than 25 feet above the surface of the water. • Use as few elbows and fi ttings as possible to reduce friction and maximize fl ow. • Be sure pipe, fi ttings, and foot valve are clean and free of debris.
  • Page 5 Multi-shallow Well Points (Figure 2) The multi-point shallow well confi guration consists of two or more wells as a water supply. The wells should be at least fi ve feet apart. The wells may be spaced as a straight line (two or more wells), a triangle (three wells), or a square (four wells).
  • Page 6 A. Suction Port Connection (Figure 4) Step 1: Attach the foot valve or well point to pipe assembly and lower pipe and foot valve until it is at least fi ve feet below the water level. If you are using a well, temporarily clamp the pipe to the well casing to prevent the pipe from sliding into the well.
  • Page 7: Installation Records

    INSTALLATION RECORDS To keep an accurate record of your installation, be sure to fi ll out the data below: Date of Installation: Model No. Depth of Well (ft): Depth to Water (ft): Inside diameter of Well: Suction Pipe Size: Suction pipe length (ft): Discharge pipe length (ft): Motor: Volts:...
  • Page 8: Maintenance

    Step 3: Connect the incoming power supply wires to the motor terminal. Step 4: Replace and secure motor cover. NOTE: Single phase motors rotate counterclockwise only (when facing suction port) and cannot be reversed. MOTOR NOTICE: A motor operating under normal conditions maintains its rated performance, assuming a clean, dry motor with proper ventilation.
  • Page 9 Priming Port NOTICE: While this will drain the pump, it will not necessarily drain all other parts of the piping system. If there are any concerns with the proper procedure or necessity of draining the suction plumbing, contact your contractor. B.
  • Page 10 Identifi er* TB1CI 305396901 305396901 305394901 305396901 305394901 305396901 305394901 305396901 305396901 305398901 6E,G 4C,G 3C,G Repair Part Order Codes by Model Number TB15CI 305390901 305491901 305392901 305396902 305392901 305396902 305393901 305394902 305396902 305394902 305396902 305394902 305396902 305395901 305396902 305397901...
  • Page 11: Appendix Ii - Troubleshooting

    G. Gravelly noises inside pump (cavitation) Cause: Pump running over capacity (NPSHR exceeds NPSHA) Remedy: Call your Franklin Pump Systems dealer. Cause: Suction pipe is too small or length of pipe is too long. Remedy: Use a larger diameter pipe.
  • Page 12: Appendix Iii - Performance Curve

    APPENDIX III - PERFORMANCE CURVE 2 HP 1.5 HP 1 HP M PH...
  • Page 13: Appendix Iv - Friction Loss Tables

    APPENDIX IV - FRICTION LOSS TABLES 1” Schedule 40 pipe 1.049 in. i.d. / Type L Copper tube 1.025 in. i.d. Friction Loss Ft Hd./100’ of pipe Velocity Ft/S Steel C=100 C=140 0.74 0.60 0.32 1.11 1.26 0.68 1.49 2.14 1.15 1.86 3.24...
  • Page 14 Franklin Electric Co., Inc. warrants its new products to be free of defects in material and workmanship for a period of 1 year from date of installation or 2 years from date of manufacture, whichever comes fi rst, WHEN installed in clean, potable water applications.
  • Page 15: Manual Del Propietario

    ANTES DE COMENZAR ANTES DE INSTALAR LA BOMBA, CERCIÓRESE DE LEER CUIDADOSAMENTE EL MANUAL DEL PROPIETARIO. CONSULTAR INSTRUCCIONES DE OPERACIÓN Y ESPECIFICACIONES EN LA(S) PLACA(S) DE DATOS DEL PRODUCTO. C U I D A D O • Mantenga el área de trabajo limpia, bien iluminada y desobstruida.
  • Page 17: Seguridad Eléctrica

    SEGURIDAD ELÉCTRICA CUIDADO Cerciórese que todas las FUENTES ELÉCTRICAS ESTÉN APAGADAS antes de conectar cualquier cable eléctrico. AVISO El voltaje del condensador puede ser peligroso. Para descargar el condensador del motor, sujete un destornillador con mango aislado POR EL MANGO y los terminales cortos del condensador juntos.
  • Page 18: Instalación

    VERIFICACIÓN ANTES DE LA INSTALACIÓN • La bomba no debe de estar a más de 25 pies sobre la superfi cie del agua. • Use el mínimo posible de codos y conexiones para reducir la fricción y maximizar el fl ujo. •...
  • Page 19 Puntos de Múltiples Pozos llanos (Figura 2) La confi guración pozo llano de múltiples puntos consiste en dos o tres pozos como fuente de agua. Los pozos deben estar por lo menos a cinco pies de distancia entre sí. Los pozos tienen que estar en línea recta (dos o más pozos), en triángulo (tres pozos), o en cuadrado (cuatro pozos).
  • Page 20 A. Conexión del Bocal de Succión (Figura 4) Etapa 1: Conectar la válvula de pedestal o el punto del pozo a la tubería y bajar el tubo y la válvula de pedestal hasta que queden por lo menos a cinco pies abajo del nivel del agua.
  • Page 21 REGISTROS DE LA INSTALACIÓN Para mantener un registro adecuado de su instalación, cerciorarse de llenar los datos siguientes: Fecha de la instalación: Nº de modelo Profundidad del Pozo (pies): Profundidad del Agua (pies): Diámetro interno del Pozo: Tamaño del tubo de succión: Longitud del tubo de succión (pies): Longitud del tubo de salida (pies): Motor:...
  • Page 22 Etapa 3: Conectar los cables de entrada de fuerza al terminal del motor. Etapa 4: Recolocar y sujetar la tapa del motor. NOTA: Los motores monofásicos giran solamente de la derecha hacia la izquierda (de frente para el bocal de succión) y no se pueden invertir. MOTOR AVISO: Un motor que funciona en condiciones normales mantiene su desempeño nominal,...
  • Page 23 AVISO: Aunque este proceso drene la bomba, no necesariamente drenará las demás partes de la tubería. Si existe alguna preocupación sobre el procedimiento adecuado o necesidad de drenar la tubería de succión, entre en contacto con su contratista. B. Desmontaje de la Bomba (Apéndice I y Figura 9) Para tener acceso a los componentes internos de la bomba, revisar el diagrama explotado de la bomba...
  • Page 24 Códigos de Pedido de Repuestos por Número de Modelo Agrupamientode Kit* 305396901 305396901 305394901 305396901 305394901 305396901 305394901 305396901 305396901 305398901 6E,G 1Amp. 4C,G 3C,G TB1CI TB15CI 305390901 305491901 305392901 305396902 305392901 305396902 305393901 305394902 305396902 305394902 305396902 305394902 305396902 305395901 305396902 305397901 305398902...
  • Page 25: Apéndice Ii - Solución De Problemas

    C. Poca capacidad Causa: El nivel del agua está a más de 25 pies. Solución:La bomba no puede bombear a más de 25 pies. Consulte un distribuidor de Franklin Pump Systems. Causa: Está usando un tubo muy largo desde el agua hasta la bomba.
  • Page 26 APÉNDICE III - CURVA DE DESEMPEÑO 2 HP 1.5 HP 1 HP l./seg. M PH...
  • Page 27 APÉNDICE IV - TABLAS DE PÉRDIDA DE FRICCIÓN 1” Programar 40 tubos 1.049 pulgadas de diámetro interno/tubo de cobre de 1.025 pulgadas de diámetro interno tipo L Pérdida de fricción Ft. Hd./100' de tubo Velocidad Pies/ Acero segundo PVC C= 140 C= 100 0.74 0.60...
  • Page 28 Franklin Electric Co., Inc también ofrece cobertura adicional a los productos aquí especifi cados. La obligatoriedad de garantía de Franklin Electric en relación al equipo que no sea de su fabricación se limita a la garantía de sus proveedores a Franklin Electric.
  • Page 29 AVANT DE COMMENCER AVANT DE PROCÉDER À L’INSTALLATION DE LA POMPE, VEUILLEZ LIRE ATTENTIVEMENT CE GUIDE D’UTILISATION CONSULTEZ LES PLAQUES SIGNALÉTIQUES POUR DES CONSIGNES D’UTILISATION ET DES SPÉCIFICATIONS ADDITIONNELLES. ATTENTION • L’aire de travail doit être propre, bien illuminée et dégagée.
  • Page 31: Sécurité Générale

    ÉLECTRICITÉ ET SÉCURITÉ AVERTISSEMENT Assurez-vous que TOUTE L’ALIMENTATION ÉLECTRIQUE EST COUPÉE avant de brancher des fi ls électriques. ATTENTION La tension d’un condensateur peut être dangereuse. Pour décharger le condensateur du moteur, tenez un tournevis à manche isolé PAR LE MANCHE et placez-le contre les bornes courtes du condensateur.
  • Page 32 INSPECTION AVANT INSTALLATION • La pompe ne doit pas être installée à une hauteur de plus de 8 m ( 25 pi ) au-dessus du niveau de l’eau. • Utilisez aussi peu de coudes et de raccords que possible pour réduire la friction et maximiser le débit. •...
  • Page 33 Réseau de pointes fi ltrantes ( illustration 2 ) Dans une confi guration de réseau de pointes fi ltrantes, l’eau provient d’au moins deux puits différents. La distance entre les puits doit être d’au moins 1,5 m ( 5 pi ). Les puits peuvent être situés en ligne droite ( deux puits ou plus ), former un triangle ( trois puits ) ou un carré...
  • Page 34 A. Raccord de l’orifi ce d’aspiration ( illustration 4 ) Étape 1 : Raccordez le clapet de pied ou la pointe fi ltrante au système de conduites et descendez la conduite avec le clapet de pied jusqu’à une profondeur d’au moins 1,5 m ( 5 pi ) en dessous du niveau de l’eau.
  • Page 35 FICHE D’INSTALLATION Afi n de conserver les renseignements exacts sur l’installation, veuillez inscrire les informations indiquées ci-dessous : Date de l’installation : Nº de modèle : Profondeur du puits ( m ) : Profondeur jusqu’au niveau de l’eau ( m ) : Diamètre intérieur du puits : Dimension de la conduite d’aspiration : Longueur de la conduite d’aspiration ( m ) :...
  • Page 36 Étape 3 : Connectez les fi ls d’alimentation à la plaque à bornes du moteur. Étape 4 : Remettez le panneau d’accès solidement en place. REMARQUE : Les moteurs monophasés tournent en sens inverse des aiguilles d’une montre ( en faisant face à...
  • Page 37 Orifice d'amorçage REMARQUE : Cette procédure videra la pompe, mais non pas nécessairement toutes les autres parties de la tuyauterie. En cas de doute concernant la procédure à suivre ou la nécessité d’une vidange de la tuyauterie d’aspiration, veuillez contacter votre fournisseur.
  • Page 38 Numéros de commande des pièces de rechange par nº de modèle Identifi cateur d’ensemble* TB1CI 305396901 305396901 305394901 305396901 305394901 305396901 305394901 305396901 305396901 305398901 6E,G 4C,G 3C,G TB15CI 305390901 305491901 305392901 305396902 305392901 305396902 305393901 305394902 305396902 305394902 305396902 305394902 305396902 305395901 305396902 305397901...
  • Page 39: Annexe Ii : Dépannage

    Action corrective : La pompe ne peut pas amener de l’eau d’une profondeur dépassant 8 m ( 25 pi ). Consultez votre distributeur de pompes Franklin. Cause : La conduite de la source d’eau vers la pompe est trop longue.
  • Page 40: Annexe Iii - Courbe De Rendement

    ANNEXE III - COURBE DE RENDEMENT 2 HP 1.5 HP 1 HP M PH...
  • Page 41 ANNEXE IV - TABLEAUX DES PERTES DE CHARGE 1” Tuyau série 40 1,049 po D. int. / tube en cuivre de type L 1,025 po D. int. Perte de charge en pieds/30 m ( 100 pi ) Gallons/ de tuyau Vitesse pi/s minute Acier...
  • Page 44 Franklin Electric Co., Inc. garantit que ses appareils neufs sont exempts de tout défaut de matériau et de fabrication. La garantie couvre la durée la plus courte entre une période de 1 an à partir de la date d’installation ou de 2 ans à partir de la date de fabrication UNIQUEMENT pour une installation en eau propre et potable.
