Summary of Contents for Packard Bell EasyNote SJ

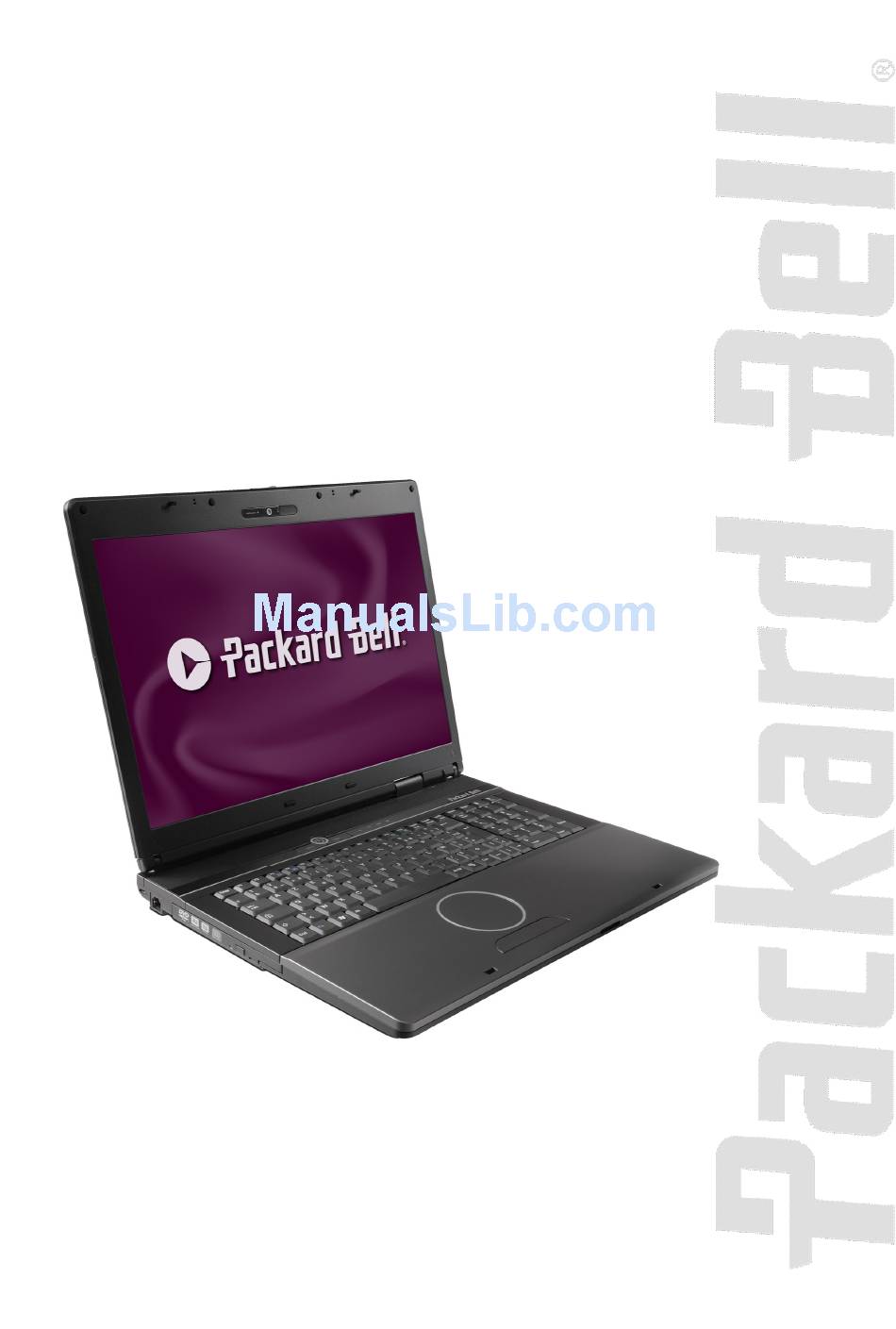

  • Page 1 Packard Bell EasyNote SJ Disassembly Manual...
  • Page 2: Table Of Contents

    RJ11 Connector ..........................18 Bluetooth Module ..........................19 Bluetooth Antenna ..........................20 Main Board ............................21 LCD Panel Assembly......................... 22 LCD Bezel............................23 LCD Panel ............................24 Inverter Board............................. 25 Webcam.............................. 25 WLAN Antenna........................... 26 Notice..............................27 Packard Bell EasyNote SJ Disassembly Manual...
  • Page 3: Overview

    SJ. The instructions are illustrated where necessary with images of the part that is being removed or disassembled. Packard Bell reserves the right to make changes to the EasyNote SJ without notice. Technician Notes Only technicians authorized by Packard Bell B.V. should attempt to repair this equipment. All troubleshooting and repair procedures are detailed to allow only subassembly/module level repair.
  • Page 4: Hazardous Voltage

    Always Non avviare il sistema senza aver prima return a defective power supply to the dealer. messo a posto il coperchio. Packard Bell EasyNote SJ Disassembly Manual...
  • Page 5: Battery

    1. Remove the 2 screws on the hard disk drive cover and remove the cover. Fig. 2 Removing hard disk drive cover. 2. Pull the hard disk drive towards you to disconnect the drive. Packard Bell EasyNote SJ Disassembly Manual...
  • Page 6 4. Remove the 2 screws on the metal bracket to separate it from the hard disk drive. Fig. 4 Location of hard disk drive bracket screws. Note: The EasyNote SJ uses S-ATA hard drives exclusively. S-ATA hard drives have no jumpers and need no specific configuration settings to work in a system with multiple hard drives.
  • Page 7: Memory

    Release the metal clips securing the memory module; the module will eject upwards. Carefully remove the module. Fig. 6 Removing memory module. Note: In case two memory modules are installed, you always have to remove the top module first before you can remove the second one. Packard Bell EasyNote SJ Disassembly Manual...
  • Page 8: Wireless Lan Adapter

    To remove the CPU, first remove the battery (see Battery) and then perform the following steps: 1. Remove the 7 screws retaining the memory/CPU/WLAN cover (see Fig. 2. Remove the 3 screws holding the CPU fan. Packard Bell EasyNote SJ Disassembly Manual...
  • Page 9 Fig. 9 Location of heat sink screws. 5. Now remove the 6 screws, again in designated order. 6. Carefully remove the heat sink. 7. Turn the screw in the CPU socket 180 degrees counter-clockwise to release the CPU. Packard Bell EasyNote SJ Disassembly Manual...
  • Page 10: Keyboard

    Fig. 11 Removing keyboard cover. 3. Tilt the cover from the front to the back and lift it out (see Fig. 11). 4. Remove the 2 screws securing the keyboard. Packard Bell EasyNote SJ Disassembly Manual...
  • Page 11: Optical Disk Drive

    3. Take out the optical disk drive from the drive bay. 4. Remove the 2 screws securing the metal bracket and remove it from the drive. Fig. 14 Removing metal bracket. 5. Release the tray cover on one side of the tray. Packard Bell EasyNote SJ Disassembly Manual...
  • Page 12: Button Board

    The button board contains the power button, the ECO and WiFi button, and the status LEDs. To remove the button board, remove the keyboard cover (see steps 1 to 3 in Keyboard), and then perform the following steps: 1. Remove the 2 screws securing the button board Packard Bell EasyNote SJ Disassembly Manual...
  • Page 13: Top Cover

    (see Optical Disk Drive), remove the LCD panel assembly (see LCD Panel Assembly), and then perform the following steps: 1. Carefully disconnect the speaker cables connector near the palm rest at the right. Packard Bell EasyNote SJ Disassembly Manual...
  • Page 14 1313131313 Fig. 19 Location of speaker cables connector. 2. Disconnect the standby-switch cable. Fig. 20 Disconnecting standby-switch cable. 3. Disconnect the touchpad cable. Fig. 21 Disconnecting touchpad cable. Packard Bell EasyNote SJ Disassembly Manual...
  • Page 15: Hdd Board

    8. Turn the notebook upside down and remove the top cover. HDD Board The HDD board contains the two Serial ATA connectors. To remove the HDD board, first remove the top cover (see Cover), and then perform the following steps: Packard Bell EasyNote SJ Disassembly Manual...
  • Page 16: Odd Board

    1. Remove the screw securing the ODD board. Fig. 25 Location of ODD board screw. 2. Take the ODD board aside and disconnect it from the main board. 3. Remove the ODD board. Packard Bell EasyNote SJ Disassembly Manual...
  • Page 17: Speakers

    To remove the subwoofer, first remove the top cover (see Cover), and then perform the following steps: 1. Disconnect the subwoofer cable from the main board (see Fig. 27-A). Fig. 27 Location of subwoofer and cable. Packard Bell EasyNote SJ Disassembly Manual...
  • Page 18: Touchpad Button Board

    The standby switch works as a soft power switch when the lid is closed; it is located in the top cover. To remove the standby switch, first remove the top cover (see Cover), and then perform the following steps: 1. Remove the screw securing the standby switch. Packard Bell EasyNote SJ Disassembly Manual...
  • Page 19: Modem Board

    2. Take out the modem; it has been clicked onto the main board. 3. Disconnect the cable from the modem. RJ11 Connector To remove the RJ11 connector, first remove the top cover (see Cover), and then perform the following steps: Packard Bell EasyNote SJ Disassembly Manual...
  • Page 20: Bluetooth Module

    Bluetooth Module To remove the Bluetooth module, first remove the top cover (see Cover), and then perform the following steps: 1. Disconnect the antenna and the cable from the Bluetooth module. Packard Bell EasyNote SJ Disassembly Manual...
  • Page 21: Bluetooth Antenna

    To remove the Bluetooth antenna, first remove the top cover (see Cover), and then perform the following steps: 1. Disconnect the antenna from the Bluetooth module (see Fig. 33). 2. Remove the Bluetooth antenna; it has been glued onto place. Packard Bell EasyNote SJ Disassembly Manual...
  • Page 22: Main Board

    2. Remove the 2 hex bolts adjacent to the DVI-I connector. 3. Lift up the main board. 4. Disconnect the Bluetooth cable (optional). 5. Lift the main board out and turn it upside down. Packard Bell EasyNote SJ Disassembly Manual...
  • Page 23: Lcd Panel Assembly

    Fig. 38 Disconnecting LCD cable connectors. 3. Pull the wireless LAN antenna cables through the base and clear them from the clips (see Fig. 38). 4. Remove 2 screws from the back panel of the notebook. Packard Bell EasyNote SJ Disassembly Manual...
  • Page 24: Lcd Bezel

    Fig. 41 Location of stoppers/screws securing LCD bezel. 2. Remove the 6 screws (that were covered by the stoppers) securing the LCD bezel. 3. Remove the LCD bezel; it has been clicked into place. Packard Bell EasyNote SJ Disassembly Manual...
  • Page 25: Lcd Panel

    1. Remove the 4 screws from the hinges. Fig. 42 Location of screws securing hinges. 2. Disconnect both cables from the inverter board. Fig. 43 Disconnecting cables from inverter board. 3. Remove the screw securing the grounding cable. Packard Bell EasyNote SJ Disassembly Manual...
  • Page 26: Inverter Board

    2. Remove the screw securing the inverter board and extract the board; it may be glued onto place. Webcam To remove the webcam, first remove the LCD bezel (see Bezel), and then do the following: 1. Disconnect the cable from the webcam. Packard Bell EasyNote SJ Disassembly Manual...
  • Page 27: Wlan Antenna

    1. The wireless LAN antenna has been glued onto place, loosen both. Fig. 47 Location WLAN antenna cables. 2. Remove the webcam (see Webcam) to clear the cable of the antenna on the left 3. Release the cable from the clips in the shielding foil. Packard Bell EasyNote SJ Disassembly Manual...
  • Page 28: Notice

    Packard Bell B.V. PACKARD BELL B.V. SHALL NOT BE HELD LIABLE FOR TECHNICAL OR EDITORIAL ERRORS OR OMISSIONS CONTAINED HEREIN; NOR FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING FROM THE FURNISHING, PERFORMANCE, OR USE OF THIS MATERIAL.
