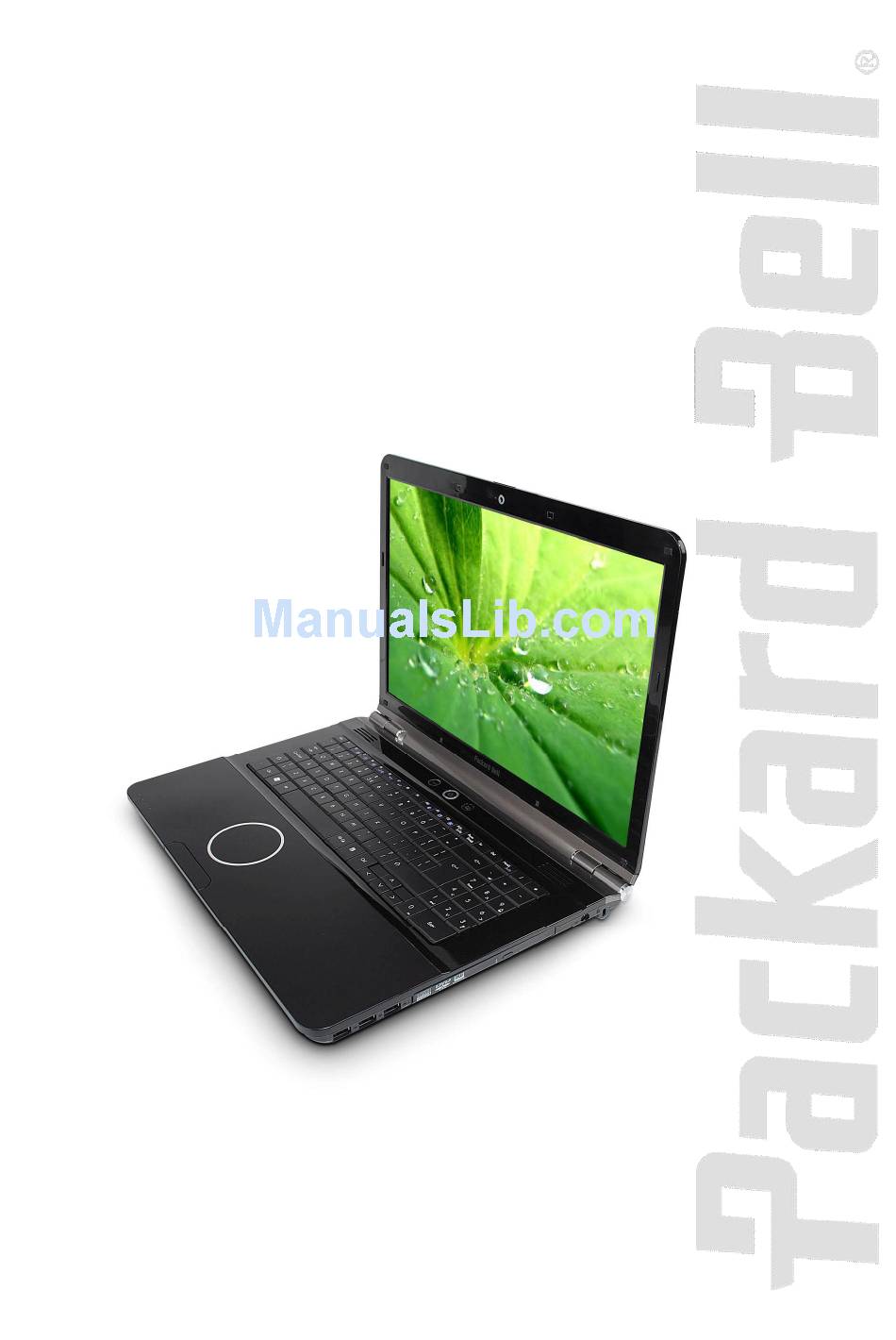

- Page 1 Packard Bell EasyNote SL Disassembly Manual...
-
Page 2: Table Of Contents
CPU Fan and Heat Sink......................20 Main Board .......................... 21 CPU............................ 22 Video Board......................... 23 LCD Bezel ........................... 23 Inverter Board........................23 Webcam..........................24 LCD Panel........................... 24 LCD Cable........................... 25 Wireless LAN Antenna......................25 Notice ..........................26 Packard Bell EasyNote SL Disassembly Manual... -
Page 3: About This Guide
Packard Bell B.V. reserves the right to make changes to the EasyNote SL without notice. For More Information For more information about the Packard Bell EasyNote SL, visit Packard Bell‘s support web site at . The support web site also has links to additional Packard Bell documentation and detailed product specifications. -
Page 4: Hazardous Voltage
Always return a Non avviare il sistema senza aver prima defective power supply to the dealer. messo a posto il coperchio. Packard Bell EasyNote SL Disassembly Manual... -
Page 5: Battery
Fig. 2 Removing hard disk drive compartment cover. 2. Lift the cover upwards from the left. There are two tabs holding the cover in place on the right. Raise the cover until you can remove it from the casing (see Fig. Packard Bell EasyNote SL Disassembly Manual... - Page 6 4. Pull the plastic tab on the hard disk drive towards the left to disconnect the drive. Fig. 4 Disconnecting and removing hard disk drive. 5. Take the drive out of its compartment as shown in Fig. Packard Bell EasyNote SL Disassembly Manual...
-
Page 7: Hard Disk Drive 2
Fig. 6 Removing hard disk drive compartment cover. 2. Lift the cover upwards from the right. There are two tabs holding the cover in place on the left. Raise the cover until you can remove it from the casing (see Fig. Packard Bell EasyNote SL Disassembly Manual... -
Page 8: Memory
6. Remove the two screws on the metal bracket to separate it from the hard disk drive (see Fig. Memory To remove the memory installed, first remove the battery (see Battery on page 4) and then perform the following steps: Packard Bell EasyNote SL Disassembly Manual... - Page 9 Raise the cover until you can remove it from the casing (see Fig. Release the metal clip on each side securing the memory module; the module will eject upwards. Fig. 10 Removing memory module. Packard Bell EasyNote SL Disassembly Manual...
-
Page 10: Wireless Lan Adapter
2. Lift the cover upwards from the left. There are three tabs holding the cover in place on the right. Raise the cover until you can remove it from the casing (see Fig. 3. Carefully disconnect the two wireless antenna cables. Fig. 12 Location of antenna cable connectors. Packard Bell EasyNote SL Disassembly Manual... -
Page 11: Optical Disk Drive
Fig. 14 Removing screws securing optical disk drive. 2. Use the emergency eject hole to open the optical disk drive. 3. Pull the tray and take out the optical disk drive from the drive bay. Packard Bell EasyNote SL Disassembly Manual... -
Page 12: Tv Tuner (Optional)
Raise the cover until you can remove it from the casing (see Fig. 3. Carefully disconnect the TV antenna cable. Fig. 16 Location of antenna cable connector and screw. 4. Remove the screw securing the TV tuner (see Fig. 16); the card will eject upwards. Packard Bell EasyNote SL Disassembly Manual... -
Page 13: Intel Turbo Memory (Optional)
Raise the cover until you can remove it from the casing (see Fig. 3. Remove the screw securing the Intel Turbo Memory module; the card will eject upwards. Fig. 18 Location of screw securing Intel Turbo Memory module. Packard Bell EasyNote SL Disassembly Manual... -
Page 14: Cmos Battery
1. Disconnect the white CMOS battery header from the main board. Fig. 20 Disconnecting CMOS battery cable. 2. Take out the CMOS battery. Keyboard To remove the keyboard, first remove the battery (see Battery on page 4) and then perform the following steps: Packard Bell EasyNote SL Disassembly Manual... -
Page 15: Top Cover
11) or the Intel Turbo memory (see Intel Turbo Memory (Optional) on page 12), remove the CMOS battery (see CMOS Battery on page 13), remove the keyboard (see Keyboard on page 13), and then perform the following steps: Packard Bell EasyNote SL Disassembly Manual... - Page 16 1. Release the black clip securing the touchpad flat cable and disconnect the cable. Fig. 23 Location of touchpad connector. 2. Remove the four screws securing the top cover. Fig. 24 Location of cover screws. 3. Turn the notebook upside down Packard Bell EasyNote SL Disassembly Manual...
-
Page 17: Touchpad
2. Remove the two screws securing the touchpad module to the top cover (see Fig. 26). 3. Remove the touchpad module. LCD Assembly To disassemble the LCD assembly, first remove the top cover (see Top Cover on page 14), and then perform the following steps: Packard Bell EasyNote SL Disassembly Manual... -
Page 18: Bluetooth
Fig. 28 Location internal video connector. 3. Lift out the LCD assembly. Bluetooth To remove the Bluetooth module, first remove the top cover (see Top Cover on page 14), and then perform the following steps: Packard Bell EasyNote SL Disassembly Manual... -
Page 19: Speakers
2. Disconnect the speaker cable from the header. Fig. 30 Location of speaker cable header on the main board. Note: The speaker assembly is integrated in the bottom casing and does not require separate disassembly. Packard Bell EasyNote SL Disassembly Manual... -
Page 20: Usb Board
To remove the SATA adapter, first remove the top cover (see Top Cover on page 14), and then perform the following steps: 1. Remove the two screws securing the SATA adapter. Fig. 32 Location of SATA adapter screws. 2. Lift out the SATA adapter. Packard Bell EasyNote SL Disassembly Manual... -
Page 21: Power Connector
4. Remove the power connector and the cable. CPU Fan and Heat Sink To remove the CPU fan and heat sink, first remove the top cover (see Top Cover on page 14) and then perform the following steps: Packard Bell EasyNote SL Disassembly Manual... -
Page 22: Main Board
1. Carefully disconnect the flat cable from the header on the main board. Fig. 36 Location of switch board flat cable. Note: Optionally, you can disconnect the other end of the flat cable from the switch board. Packard Bell EasyNote SL Disassembly Manual... -
Page 23: Cpu
1. Turn the screw in the CPU socket counter-clockwise into the unlock position to release the CPU. Fig. 38 Location of screw securing CPU. 2. Carefully take out the CPU from the socket. Packard Bell EasyNote SL Disassembly Manual... -
Page 24: Video Board
To remove the inverter board, first remove the LCD bezel (see LCD Bezel on page 23), and then do the following: 1. Disconnect the cables from the inverter board. Fig. 40 Location of inverter board. Packard Bell EasyNote SL Disassembly Manual... -
Page 25: Webcam
23), and then perform the following steps: 1. Remove the four screws securing the LCD. Fig. 42 Location of bracket screws. 2. Separate the LCD panel with the brackets from the back cover. Packard Bell EasyNote SL Disassembly Manual... -
Page 26: Lcd Cable
1. Remove the screw securing the wireless LAN antenna cable on the left and right upper part of the LCD housing. Fig. 44 Location of wireless LAN antenna screws. 2. Clear the antenna cable from the shielding foil in the LCD housing. 3. Remove the wireless LAN antenna cable. Packard Bell EasyNote SL Disassembly Manual... -
Page 27: Notice
The information in this guide is subject to change without notice. This guide contains information protected by copyright. No part of this guide may be photocopied or reproduced in any form or by any means without prior written consent from Packard Bell B.V. B.V.
