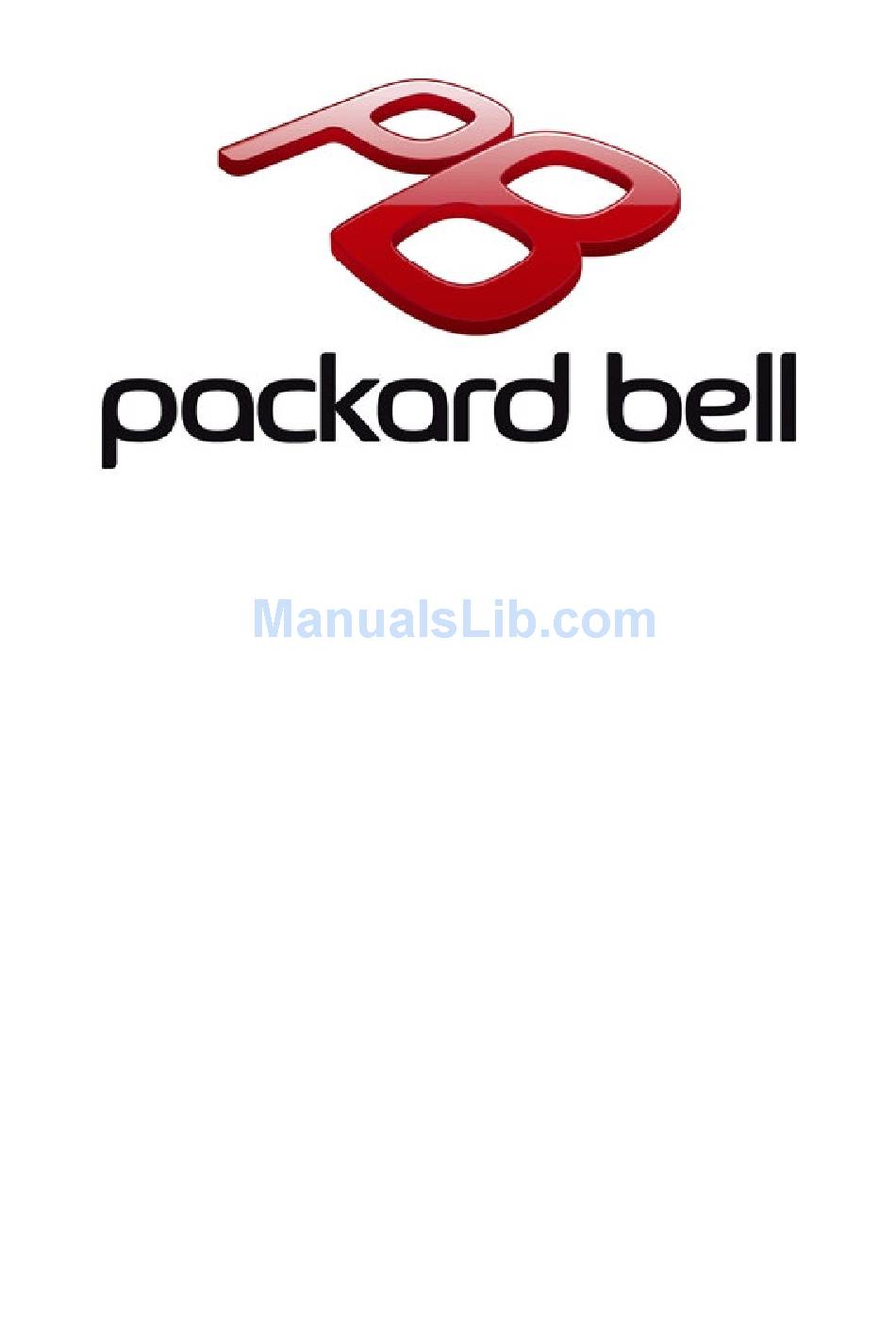

EasyNote L J
Series
Disassembly Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EasyNote L J Series and is the answer not in the manual?

Questions and answers

Related Manuals for Packard Bell EasyNote L J Series

Summary of Contents for Packard Bell EasyNote L J Series

  • Page 1 EasyNote L J Series Disassembly Manual...

  • Page 2: Machine Disassembly And Replacement

    Chapter 3 Machine Disassembly and Replacement IMPORTANT:The outside housing and color may vary from the mass produced model. This chapter contains step-by-step procedures on how to disassemble the notebook computer for maintenance and troubleshooting. Disassembly Requirements To disassemble the computer, you need the following tools: Wrist grounding strap and conductive mat for preventing electrostatic discharge •...

  • Page 3: General Information

    General Information Pre-disassembly Instructions Before proceeding with the disassembly procedure, make sure that you do the following: 1. Turn off the power to the system and all peripherals. 2. Unplug the AC adapter and all power and signal cables from the system. 3.

  • Page 4: External Module Disassembly Process

    External Module Disassembly Process IMPORTANT:The outside housing and color may vary from the mass produced model. External Modules Disassembly Flowchart The flowchart below gives you a graphic representation on the entire disassembly sequence and instructs you on the components that need to be removed during servicing. For example, if you want to remove the main board, you must first remove the keyboard, then disassemble the inside assembly frame in that order.

  • Page 5: Removing The Battery Pack

    Removing the Battery Pack 1. Turn computer over. Slide the battery lock in the direction shown. 2. Slide and hold the battery release latch to the release position (1), then lift out the battery pack from the main unit (2). Chapter 3...

  • Page 6: Removing The Sd Dummy Card

    Removing the SD dummy card 1. Push the SD dummy card all the way in to eject it. 2. Pull the card out from the slot. Chapter 3...

  • Page 7: Removing The Lower Covers

    Removing the Lower Covers 1. See “Removing the Battery Pack” on page 46. 2. Loosen the five captive screws in the memory and HDD covers. HDD2, WLAN, and Memory Cover HDD1 Cover 3. Remove the HDD1 Cover. 4. Remove the HDD2, WLAN, and Memory Cover as shown. Chapter 3...

  • Page 8: Removing The Optical Drive Module

    Removing the Optical Drive Module 1. See “Removing the Lower Covers” on page 48. 2. Remove the screw securing the ODD module. Step Size Quantity Screw Type ODD Module M2.5*5 3. Insert a suitable tool into the access slot as shown. Gently lever the ODD module out of the chassis. 4.
  • Page 9 5. Remove the two screws securing the ODD bracket and remove the ODD bracket from the optical disk drive module. Step Size Quantity Screw Type ODD Bracket M2*3 6. Remove the ODD bezel by rotating the top edge downward and pulling it clear of the module. Chapter 3...

  • Page 10: Removing The Dimm Modules

    Removing the DIMM Modules 1. See “Removing the Lower Covers” on page 48. 2. Push out the release latches on both sides of the DIMM socket to release the DIMM module. 3. Remove the DIMM module. 4. Repeat steps for the second DIMM module if present. Chapter 3...

  • Page 11: Removing The Wlan Module

    Removing the WLAN Module 1. See “Removing the Lower Covers” on page 48. 2. Remove the adhesive tape securing the Antenna cables in place. 3. Disconnect the antenna cables from the WLAN Module. NOTE: Cable placement is Black to the MAIN terminal (left) and White to the AUX terminal (right). Chapter 3...
  • Page 12 4. Move the Antennas away and remove the two screws to release the WLAN Module. Step Size Quantity Screw Type WLAN Module M2*3 5. Detach the WLAN Module from the WLAN socket. NOTE: When reattaching the antennas, ensure the cables are tucked into the chassis to prevent damage. Chapter 3...

  • Page 13: Removing The Primary Hdd Module

    Removing the Primary HDD Module 1. See “Removing the Lower Covers” on page 48. 2. Using the pull-tab, slide the HDD Module in the direction of the arrow to disconnect the interface. 3. Lift the HDD Module clear of the HDD bay. NOTE: To prevent damage to device, avoid pressing down on it or placing heavy objects on top of it.
  • Page 14 5. Remove the HDD from the carrier. Chapter 3...

  • Page 15: Removing The Secondary Hdd Module

    Removing the Secondary HDD Module NOTE: The Secondary HDD is optional and may not be present. 1. See “Removing the Lower Covers” on page 48. 2. Using the pull-tab, slide the HDD Module in the direction of the arrow to disconnect the interface. 3.
  • Page 16 4. Remove the four screws (two each side) securing the hard disk to the carrier. Step Size Quantity Screw Type HDD Carrier M3*3 5. Remove the HDD from the carrier. Chapter 3...

  • Page 17: Main Unit Disassembly Process

    Main Unit Disassembly Process Main Unit Disassembly Flowchart Remove External Modules before proceeding Remove Switch Cover Remove Remove Keyboard Media Board Remove LCD Module Remove Upper Cover Upper Lower Cover Cover Remove Remove Remove Remove TouchPad Media Board FFC LED Board Speaker Module Bracket Remove...

  • Page 18: Removing The Switch Cover

    Removing the Switch Cover 1. See “Removing the Battery Pack” on page 46. 2. Lift the Media Board FFC cover as shown to expose the FFC connector. 3. Open the FFC locking latch and disconnect the Media Board FFC. 4. Remove the three securing screws from the Lower Cover. Step Size Quantity...
  • Page 19 5. Open the computer lid to approximately 45° and push the Switch Cover from the underside of the computer to release the locking latches securing the cover in place. 6. Turn the computer over and open the lid fully. Lift the left side of the Switch Cover as shown. 7.
  • Page 20 8. Rotate the Switch Cover toward the LCD panel and lift it away from the Upper Cover. Chapter 3...

  • Page 21: Removing The Media Board

    Removing the Media Board 1. See “Removing the Switch Cover” on page 59. 2. Pry the Media Board away from the Switch Cover as shown. NOTE: A very strong adhesive is used to secure the board in place. 3. Pry the board away from the Upper Cover and remove it completely. Chapter 3...

  • Page 22: Removing The Keyboard

    Removing the Keyboard 1. See “Removing the Switch Cover” on page 59. 2. Lift the keyboard from the centre as shown to release the securing clips on each side. 3. Turn the Keyboard over on the TouchPad to expose the FFC cable. 4.
