Traynor Small Block Series Owner's Manual page 4

1 2 3
Input
Gain
Passive Active
0 -6
Input
Gain
Passive Active
0 -6
1 2 3
10
11
12
13
14
15
16
17
1. Status LED and Power Switch
The power LED displays the status and condition of the amplifier. When powering up the
Traynor Small Block, the LED will illuminate red for a few moments and then turn blue when
the amp is ready to go. If a fault is detected, the LED will constantly illuminate red (see note).
Note: The power LED also illuminates red when the Mute is engaged on the SB200H. This
feature enables you to know that the Mute is activated and that the audio signal has been
disconnected on all outputs except for the Tuner.
2. 0dB/Passive and -6dB/Active Inputs and Clip LED
The Traynor Small Block input circuit has been designed for most basses but all basses
are not created equally. Since some basses have higher signals while others have very low
signals, the Traynor Small Blocks feature accommodating inputs.
4
Bass Low-Mid Hi-Mid
Low-Mid Hi-Mid
Bass
4

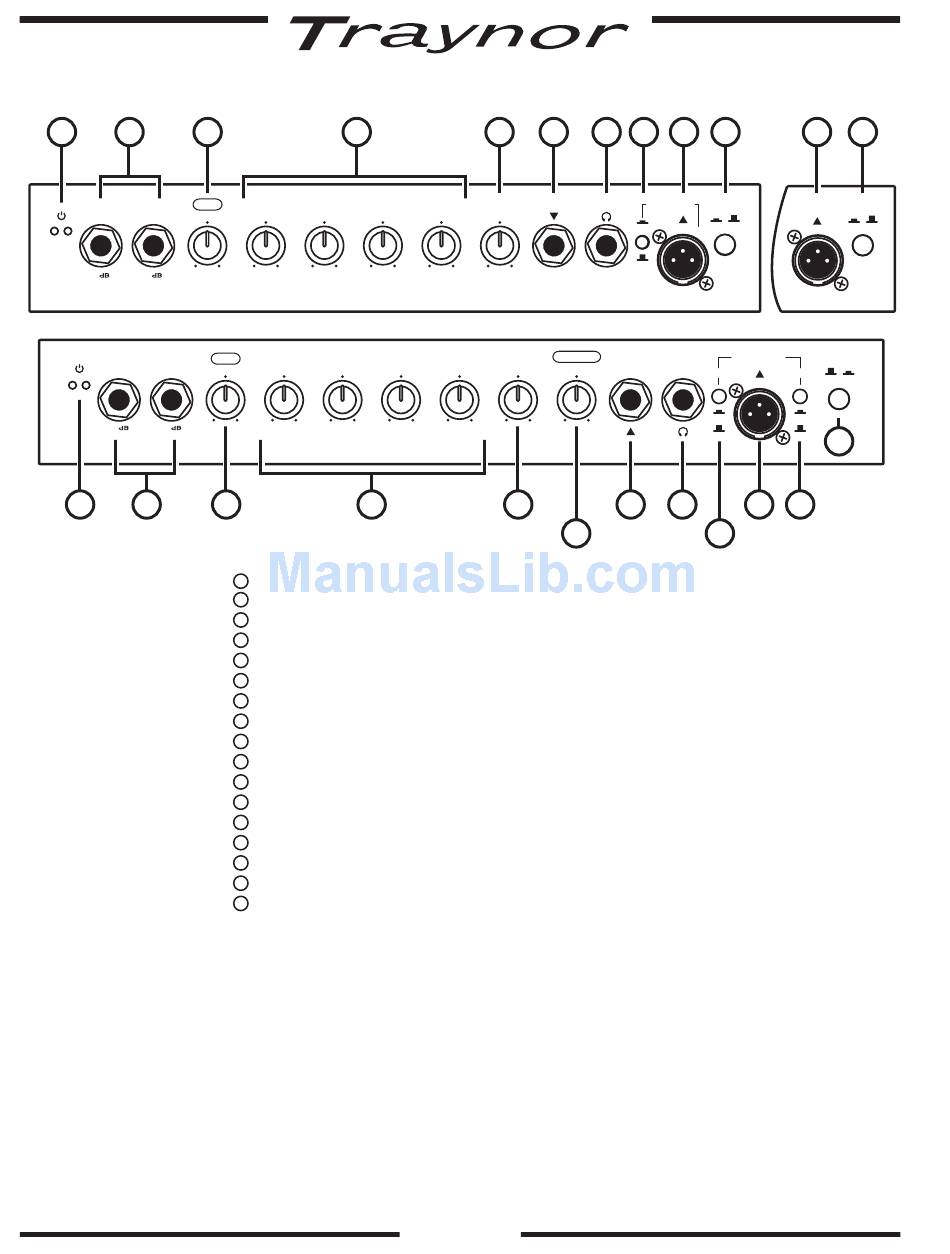

Status LED and Power Switch (switch located on rear)
1
0dB/Passive and -6dB/Active Inputs and Clip LED – ¼-inch phone jacks
2
Gain Control
3
Tone Controls – Bass, Low-Mid, Hi-Mid and Treble.
4
Low Expander Control
5
Master Volume Control (SB115 only)
6
Aux Input – ¼-inch phone jack
7
Phones Jack – ¼-inch TRS jack
8
GND Lift Switch (SB112, SB115 and SB200H only)
9
Line Out – XLR jack
Limiter Switch (SB115 only)
Tweeter Defeat/Active Switch (SB110, SB112 and SB115 only)
Line Out EQ Switch (SB200H only)
Effects Send and Return 1/4-inch Jacks (SB200H only)
Mute Button (SB200H only)
Tuner Jack – ¼-inch phone jack (SB200H only)
Speaker Outs – 2 Speakon™ jacks (SB200H only)
5 7 8
Low
Treble Aux In Phones
Expander
Low
Treble MASTER
Expander
5
6
2
9 10 12
Line Out Tweeter
IN
OUT
LIFT
GND
SB112
Aux In Phones Line Out
Limiter Ground
IN LIFT
OUT GND
7 8 10
11
10 12
Line Out Tweeter
IN OUT
SB110
Tweeter
IN OUT
12
SB115
9
