- Page 1 MODEL TYPE: YS1081 Acoustic Master Standard A c o u s t i c - G u i t A r A m p l i f i e r...
- Page 2 IMPORTANT SAFETY INSTRUCTIONS This lightning flash with arrowhead symbol, within The exclamation point within an equilatereal triangle is an equilateral triangle, is intended to alert the user to intended to alert the user to the presence of important the presence of uninsulated “dangerous voltage” operating and maintenance (servicing) instructions in within the product’s enclosure that may be of sufficient the literature accompanying the appliance.

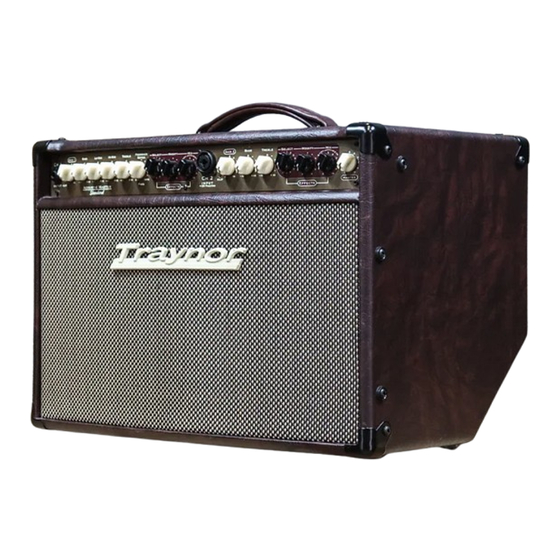

- Page 3 YORKVILLE SOUND • Toronto, CANADA The Acoustic Master Standard The Traynor Acoustic Master Standard is a 150-watt stereo acoustic guitar amplifier designed to sound as natural as your guitar. The compact size and lightweight of the Acoustic Master Standard make it easy to transport anywhere. The amplifier accepts the output from the active or passive pickups of your acoustic guitar, a microphone, and even line-level signals.
- Page 4 Ch 1 Ch 2 Ch 1 Effects Ch 2 Power Mode Mono Stereo Footswitch Aux Input Send Return CAUTION: REPLACE FUSE Effects WITH SAME TYPE AND RATING Send / Return Lift ATTENTION: UTILISER UN FUSIBLE Pin Config. DE RECHANGE DE MEME (Stereo Mode) TYPE ET CALIBRE Acoustic Master...
-
Page 5: Master Volume
10. Digital Effects (C Channel 2 has its own dedicated bank of 16 custom Traynor effects. Just as on Channel 1, the Mix control blends between your dry and wet signals while the Modify control alters the nature of the selected effect. -
Page 6: Footswitch Jack
14. Footswitch Jack An optional footswitch such as the dual switch, latching APEX AFS2 can be used to bypass the built in effects for either channel, independently of each other. 15. Line Out - Post Effects ( 2 X 1/4-inch jacks, L&R) The stereo line out jacks are located at the back of the unit and are post effect signals. - Page 7 1/4-inch T.R.S. XLR Plug Phone Plug (Male) Tip = 0° Ring = 180° Pin 1 = Ground Pin 2 = 0° Sleeve = Ground Pin 3 = 180° Balanced 1/4-inch T.R.S. to Balanced XLR Specifications Power @ min. impedance (Watts) Burst Power - 2 cycle 2x 6.5 inch / 75 Watts each Speaker Configuration - LF (Size / Power)
- Page 8 Acoustic Master Standard Digital Effects 1. Hall Reverb – A long, smooth reverb simulating the sound of a large concert hall. High frequencies are progressively rolled off as the signal cycles through the reverberator. The Modify control sets the decay time. 2.
- Page 9 YORKVILLE SOUND • Toronto, CANADA L’Acoustic Master Standard Le Traynor Acoustic Master Standard est un amplificateur stéréo pour guitare acoustique de 150-watt conçue pour offrir une sonorité aussi naturelle que votre guitare. Les dimensions compacte et le poids léger du Acoustic Master Standard le rend facile à transporter partout où...
- Page 10 Ch 1 Ch 2 Ch 1 Effects Ch 2 Power Mode Mono Stereo Footswitch Aux Input Send Return CAUTION: REPLACE FUSE Effects WITH SAME TYPE AND RATING Send / Return Lift ATTENTION: UTILISER UN FUSIBLE Pin Config. DE RECHANGE DE MEME (Stereo Mode) TYPE ET CALIBRE Acoustic Master...
- Page 11 10. Effets Numériques (C Le canal 2 a sa propre banque de 16 effets custom Traynor. Tout comme sur le canal 1, la commande Mix règle le niveau du mélange de signal original au signal affecté alors que la...
- Page 12 11. Commande Master Volume La commande master est utilisée pour augmenter ou réduire le niveau général de votre Acoustic Master Standard. Cette commande n’a aucun effet sur le niveau du signal de sortie ligne ou sur la boucle d’effet. 12. Boucle d’Effets Votre Acoustic Master Standard est équipé...
- Page 13 1/4-inch T.R.S. XLR Plug Phone Plug (Male) Tip = 0° Ring = 180° Pin 1 = Ground Pin 2 = 0° Sleeve = Ground Pin 3 = 180° Balanced 1/4-inch T.R.S. to Balanced XLR Spécifications Puissance @ impédance min. (Watts) Suramplification brusque - 2 cycles Configuration de haut-parleur- Graves 2x 6.5 pouces / 75 Watts chacun...
- Page 14 Acoustic Master Standard Effets Numériques 1. Hall Reverb – Un reverb long et doux. Une simulation de la sonorité d’une grande salle de concert. Une pente de réduction des fréquences aiguës est introduite progressivement à mesure que le signal passe par l’unité de réverbération. La commande Modify ajuste le temps d’amortissement.
-
Page 17: Two Year Warranty
Yorkville Sound or your dealer. If this product should fail for any reason within two years of the original purchase date, simply return it to your Traynor dealer with original proof of purchase and it will be repaired free of charge. - Page 18 WORLD HEADQUARTERS CANADA U.S.A. Yorkville Sound Yorkville Sound Inc. 550 Granite Court 4625 Witmer Industrial Estate Pickering, Ontario Niagara Falls, New York L1W-3Y8 CANADA 14305 USA Voice: (905) 837-8481 Voice: (716) 297-2920 Fax: (905) 837-8746 Fax: (716) 297-3689 Manual-Owners-AM-STANDARD-00-1v0 • Sept 3/2009...
