Show Duplicate Emulated Ports When this option is se-
lected and you are using a MIDI interface that supports
timestamping (such as MIDI I/O), the MIDI Studio
setup window shows both the DirectMusic time-
stamped output ports, and non-stamped duplicate em-
ulated output ports.
Some MIDI Interfaces will not properly load or
unload their drivers unless you quit and re-launch
Pro Tools. Check the documentation that came
with your MIDI interface for more information.
Instrument List
The Instrument list contains all the currently defined
instruments. Selecting an instrument in the list displays
that instrument's properties in the Properties section of
the window.
Properties Section
The Properties section lets you edit information for new
instruments, or instrument currently selected in the In-
strument list.

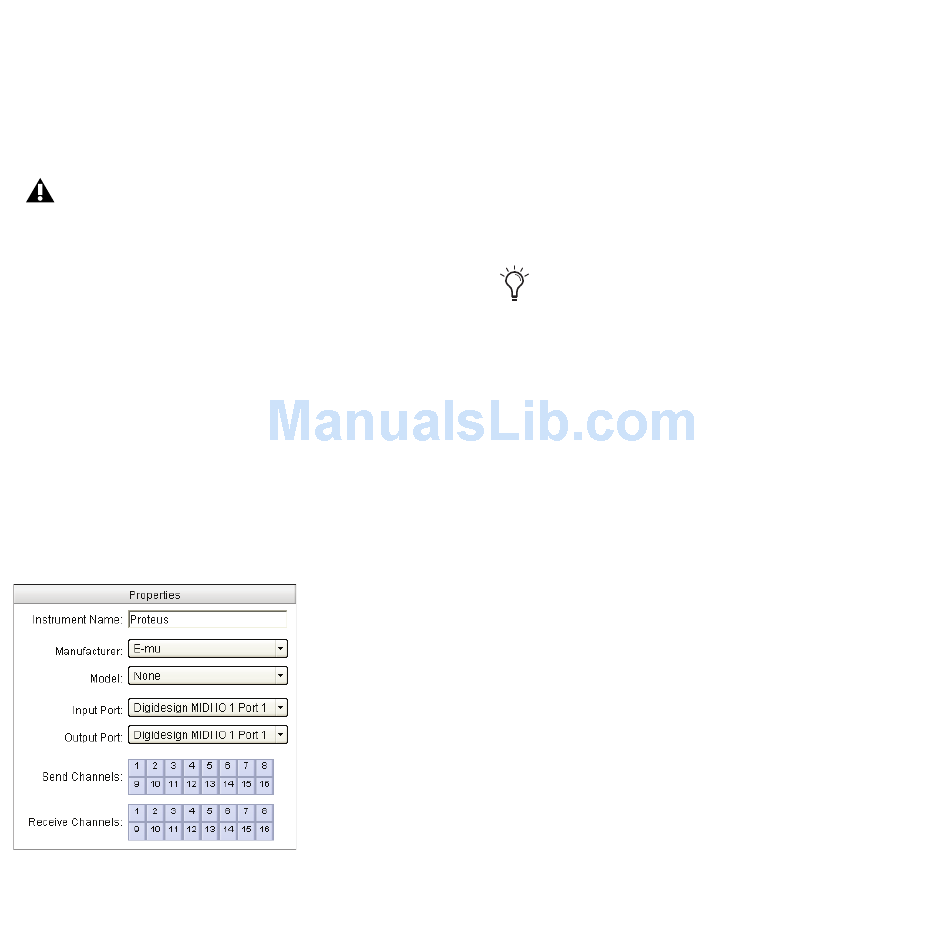

MIDI Studio Setup Properties section
46 Mbox 2 Micro Getting Started Guide
When a previously defined instrument is selected in the
Instrument list, the Properties section changes to reflect
the properties of the selected instrument.
To define an instrument with MIDI Studio Setup:
Choose Setup > MIDI > MIDI Studio.
1
Click Create.
2
In the Instrument Name field, type the name of your
3
instrument, and press Enter.
If you do not enter an instrument name, the In-
strument Name field will automatically inherit
information from the Manufacturer and Model
pop-up menu.
Set a manufacturer and model for the new device
4
from the corresponding pop-up menus. If the Manufac-
turer and Model pop-up menus do not provide a name
for your particular device, choose None.
From the Input pop-up menu, choose the input port
5
on your MIDI interface that is connected to the MIDI
Out of your instrument.
From the Output pop-up menu, choose the output
6
port on your MIDI interface that is connected to the
MIDI In of your instrument.
Enable the appropriate MIDI channels (1–16) for the
7
Send Channels and Receive Channels options (These
determine which channels send and receive MIDI.)
