Venstar T1119RF User Manual

Congratulations on your purchase of the Add-A-Wireless Thermostat accessory. This
accessory will allow you to control your T1800 or T1900 thermostat from any location in
your home using the handheld T1100RF Wireless Thermostat.*
Operation is simple! When a button is pressed on the T1100RF it will take complete control
of the thermostat. From the T1100RF you can change the mode of your thermostat, turn
the fan on, and even energize your heating or cooling system. To transfer control back to
the T1800 or T1900 thermostat, press any button on that thermostat's keypad (except for
the Outside button).
Using the easy four-step installation instructions below, install your new T1100RF Thermo-
stat and start enjoying the benefits of Venstar's patented wireless technology today!
*Not all T1800 & T1900 thermostats are compatible. Consult Venstar for a complete listing.

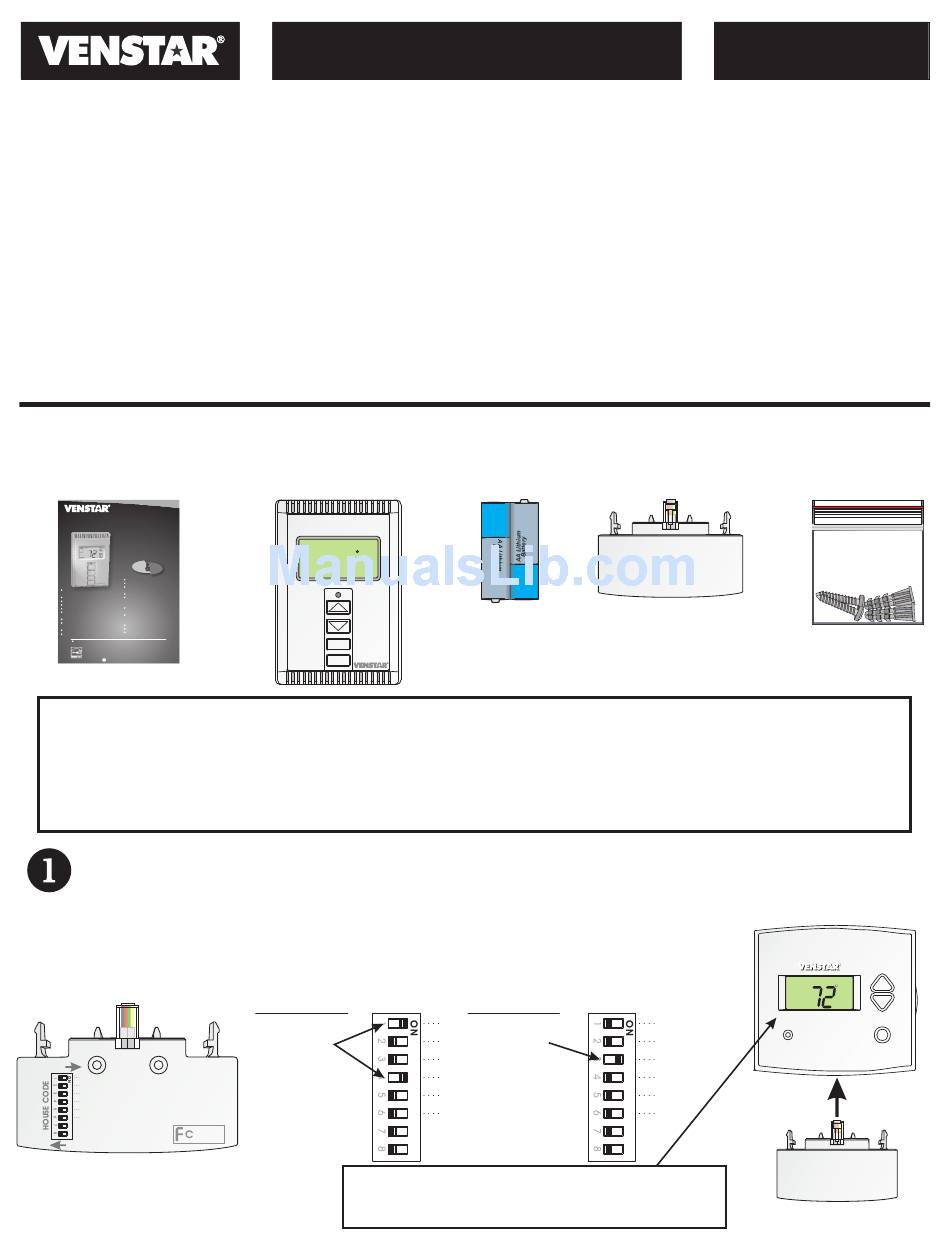

Please locate the following products contained in this box:
Wireless Thermostat
Owner's Manual
residential
WIRELESS
THERMOSTAT
Digital
Digital
T1 1 00RF
Thermostat Thermostat
7-DAY 7-DAY
PROGRAMMABLE
PROGRAMMABLE
up to 2-heat
up to 2-heat
& 2-cool & 2-cool
HEAT
HEAT
COOL
PUMP
Dual Setpoint w/ Adjustable Deadband
'O' or 'B' Terminal
Optional Power Supply (ACC0800)
Control up to 2 Heat & 2 Cool Stages Unique Features
Full Range of Compatibility for Use on Non-Volatile Memory
Gas/Electric, HP, Electri and Hydronic Heat Wireless: Transmits up to 500 feet,
7-Day Programmable through walls and floors - 418 MHZ
4 Settings/Day will not interfere with other systems
Auto Changeover Receiver capable of listening to up
5 minute Built-In Compressor Protection to 4 thermostats
Self-Prompting Programming w/ Copy Thermostat capable of transmitting
Full Electronic to multiple receivers
Display Either F or C Applications
Back-Lit Display No wires to run
Keypad Lockout Ideal for century old homes
Large Easy-to-Read Display Ideal for keeping the baby's room
Programmable Fan the perfect temperature
Use with most Air Conditioning & Heating Systems including: 1 or 2 Stage
Electric Cooling & 2 Stage Gas Heating, Heat Pump, Electric or Hydronic Heat.
OWNER'S OWNER'S
MANUAL MANUAL
Venstar Inc. 08/07
The RF Module and the T1100RF that are contained in the T1119RF package arrive
from the factory preset to House Code zero. For this reason, it is not necessary to
change the house codes of the T1100RF and RF Module for proper operation.
However, if interference is encountered, the house codes may be changed as
instructed below.
the T1100RF Owner's Manual.
To set the House Code on the RF Module, add all of the switches that are in the
ON position. The numbers of each switch are printed on the plastic next to the
opening for the switches. This total equals the House Code number. Please
disregard the numbers on the switch itself.
After the dip switches have been set, plug the RF Module
into the base of the thermostat.
ON
1
2
4
8
16
32
C
OFF
©Venstar Inc. 06/08 - Patent Pending
ADD-A-WIRELESS
T1100RF Wireless
Thermostat
o
Am
8:21
72
Su
C
OOL
AUTO 72
H
EAT
o
70
FanOn
MODE
FAN
For more information regarding the T1100RF, please consult
Example A
House
Code = 9
(1+8 = 9)
RF Receiver
ACC0437
Note: The degree icon of the T1800 or T1900
thermostat will blink when the RF Module is in
control of the thermostat and has heard from
the wireless thermostat within the last ten minutes.
THERMOSTAT
AA Lithium
Batteries
Example B
1 1 1
House
2
Code = 4
4
8
16
32
MODEL
T1119RF
RF Module
I2:00
Su
AUTO
1 1 1
2
4
8
16
32
P/N 88-791
Screws and
Wall Anchors
74
Pm
C OOL
72 H
EAT
Rev. 1
