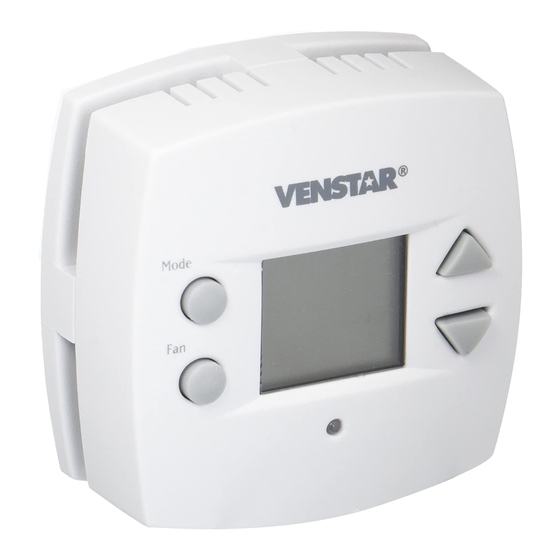

Venstar T1010 Owner's Manual

Residential single day programmable up to 2-heat & 2-cool thermostat
Hide thumbs Also See for T1010:

Advertisement

Table of Contents

See also: Instruction and Installation Manual
Enlarged version
Digital
Digital
Thermostat
Thermostat
HEAT
HEAT
COOL
PUMP
Use with most Air Conditioning & Heating Systems including: 1 or 2 Stage
Electric Cooling & 2 Stage Gas Heating, Heat Pump, Electric or Hydronic Heat.
OWNER'S
OWNER'S
MANUAL
MANUAL
Venstar Inc. 08/07
residential
THERMOSTAT
T1010
Single Day
Single Day
PROGRAMMABLE
PROGRAMMABLE
up to
2-heat
up to
2-heat
& 2-cool
& 2-cool
Control up to 2 Heat &
2 Cool Stages
HP Stages: 2 Heat, 2 cool
Single Day Programmable
4 Settings Per Day
Auto Changeover
5 min. Built-In Compressor
Protection
Back-Lit Display
One For All Works with
Virtually All Equipment
'O' or 'B' Terminal
Non-Volatile Memory
Keypad Lockout
Display Either F or C

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the T1010 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Venstar T1010

Summary of Contents for Venstar T1010

  • Page 1 Keypad Lockout Display Either F or C Use with most Air Conditioning & Heating Systems including: 1 or 2 Stage Electric Cooling & 2 Stage Gas Heating, Heat Pump, Electric or Hydronic Heat. OWNER’S OWNER’S MANUAL MANUAL Venstar Inc. 08/07...

  • Page 2: Table Of Contents

    SCHEDULE ADVANCED SETUP ABOUT ADVANCED FEATURES & OPERATION WARRANTY CAUTION Follow Installation Instructions carefully. DISCONNECT POWER TO THE HEATER - AIR CONDITIONER BEFORE REMOVING THE OLD THERMOSTAT AND INSTALLING WARNING THE NEW THERMOSTAT. Venstar Inc. 08/07 P/N T1010 Page 1...

  • Page 3: Front Panel

    Front Panel AUTO Liquid Crystal Display with Thermoglow Up/Down Buttons Mode Button Fan Button Heat or Cool Indicator Red = Heat, Green = Cool Page 2...

  • Page 4: Display

    Display AUTO Fan On Mode Indicators - Page 5 Selects the operational mode of the equipment. HEAT - Indicates the heating mode. COOL - Indicates the air conditioning mode. AUTO - Indicates the system will automatically changeover between heat and cool modes as the temperature varies.

  • Page 5: Quick Start

    Quick Start Set the Clock and Go Press the MODE and FAN buttons During Setup & Programming: MODE at the same time for two seconds to enter Setup screens. Pressing the UP or DOWN butt ons will modify th e flashing selection.

  • Page 6: Selecting The Heat Or Cool Mode

    Selecting the Heat or Cool Mode Select Mode by Pressing the MODE Button Heating Only The HEAT setting indicates the temperature the room has to reach before the furnace will Press turn on to heat the room. MODE Cooling Only The COOL setting indicates the temperature the room has to reach before the air conditioner...

  • Page 7: Basic Operation

    Basic Operation Selecting Your Desired Temperature (adjusting the setpoints) AUTO MODE Pressing the UP or DOWN buttons in Auto mode will adjust both the heat and cool set temperatures simultaneously. Adjust the desired AUTO set temperature with the buttons. HEAT OR COOL MODE Pressing the UP or DOWN buttons in Heat or Cool mode will adjust only the heat or cool set temperature.

  • Page 8: Programming A Daily Schedule

    Programming a Daily Schedule Press the MODE button. While holding MODE, press the UP button for two seconds to enter MODE time period programming. NOTE: If the thermostat is configured for single setpoint operation, time period program operation will be unavailable. Adjust the start time for Morning.
  • Page 9 Programming a Daily Schedule Adjust the start time for Day. Press MODE Adjust the cooling setpoint for Day. (35 - 99 ) Press MODE Adjust the heating setpoint for Day. (35 - 99 ) Press MODE Adjust the start time for Evening.
  • Page 10 Programming a Daily Schedule Adjust the heating setpoint for Evening. (35 - 99 ) Press MODE Adjust the start time for Night. Press MODE Adjust the cooling setpoint for Night. (35 - 99 ) Press MODE Adjust the heating setpoint for Night. (35 - 99 ) Press MODE...

  • Page 11: Advanced Setup

    Advanced Setup Press the MODE button. MODE While holding Mode, NOTE: Each step # is located at press the FAN button the top right corner of the for 10 seconds to enter display for easy reference. Setup screens. Adjust the time of day clock.
  • Page 12 Advanced Setup ON = Heat Pump operation OFF = Gas Electric operation Press MODE Select the reversing valve polarity for Heat Pump operation: O = Energize in cooling b = Energize in heating (Step 5 only appears if heat pump is on in step 4) Press MODE Select Electric Heat operation:...
  • Page 13 Advanced Setup Adjust the minimum difference between cooling & heating setpoints. (0 - 6 ) (Step 8 only appears if dual Press setpoint is selected in step 2) MODE Select the cycles per hour limit: d=cycles per hour limit defeated d1=d + defeat 5 min.

  • Page 14: Advanced Setup Table

    Advanced Setup Advanced Setup Table Step # Description Range Factory Default Time of Day 24 hour 12:00 am Display Mode 1 / 2 Time Period Program Off / On Heat Pump Off / On Reversing Valve Polarity O / b Electric Heat Off / On Deadband/Temp.

  • Page 15: About Advanced Features & Operation

    About Advanced Features & Operation CALIBRATION - Under normal circumstances it will not be necessary to adjust the calibration of the temperature. If calibration is required, please contact a trained HVAC technician to correctly perform the following procedure. Press the MODE button once.
  • Page 16 About Advanced Features & Operation Heating Cooling Deadband Deadband Deadband Deadband db 2 db 1 db 1 db 2 (non-adj. 2 ) (adj. 1-6 ) (adj. 1-6 ) (non-adj. 2 ) 1st Stage 2nd Stage 1st Stage Heat Cool 2nd Stage turn on turn on turn on...
  • Page 17 About Advanced Features & Operation FACTORY DEFAULTS - If, for any reason, you desire to return all the stored settings back to the factory default settings, follow the instructions below. WARNING: This will reset all Time Period and Advanced Programming to the default settings.
  • Page 18 About Advanced Features & Operation KEYPAD LOCKOUT - To prevent unauthorized use of the thermostat, the front panel buttons may be disabled. To disable, or ‘lock’ the keypad, press and hold the MODE button. While holding the MODE button, press the UP and DOWN buttons together.

  • Page 19: Warranty

    Warranty One-Year Warranty - This Product is warranted to be free from defects in material and workmanship. If it appears within one year from the date of original installation, whether or not actual use begins on that date, that the product does not meet this warranty, a new or remanufactured part, at the manufacturer’s sole option to replace any defective part, will be provided without charge for the part itself provided the defective part is returned to the distributor through a qualified servicing dealer.
