EN: CIGARETTE LIGHTER KIT
FORESTER
PART No.
EN : COMPONENTS
No.
Name

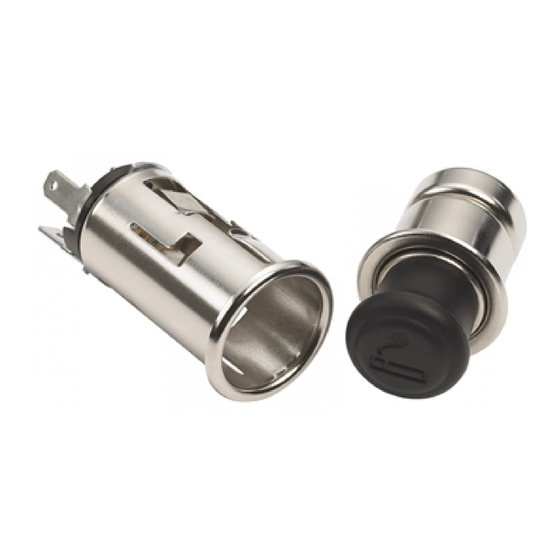

Socket ASSY
Plug

TOOLS NEEDED

PRECAUTIONS

Please refer to the precautions below before you begin work, in order to install the product safely and accurately
Please also refer to the vehicle Service manual.
This manual shows typical installation procedures on RHD vehicle. Installation will be mirror image for LHD vehicles.
ATTENTION
• When removing the connector from the vehicle, remember to remove the lock that
H6710SG000
Qty
1
1
Please disconnect the battery cable while conducting wiring operations. Failure to do
so may result in electrical shock or injury.
Please confirm that the electrical components of the vehicle operate normally. Also,
please make an note of data in the memory of the electrical components such as the
radio. This will help avoid problems that may arise when performing the repair check
after the installation.
When tightening bolts or screws, use the proper tools and the proper size, and comply
for the specified torque specified for the part.
Failure to securely tighten the bolt and nut may cause them to loosen and fall off,
causing damage.
holds the main body of the connector, instead of pulling the lead line.
This protects against a lead wire cuts, etc.
Installation Instruction
1
2
.
