INSTALLATION
INSTRUCTIONS

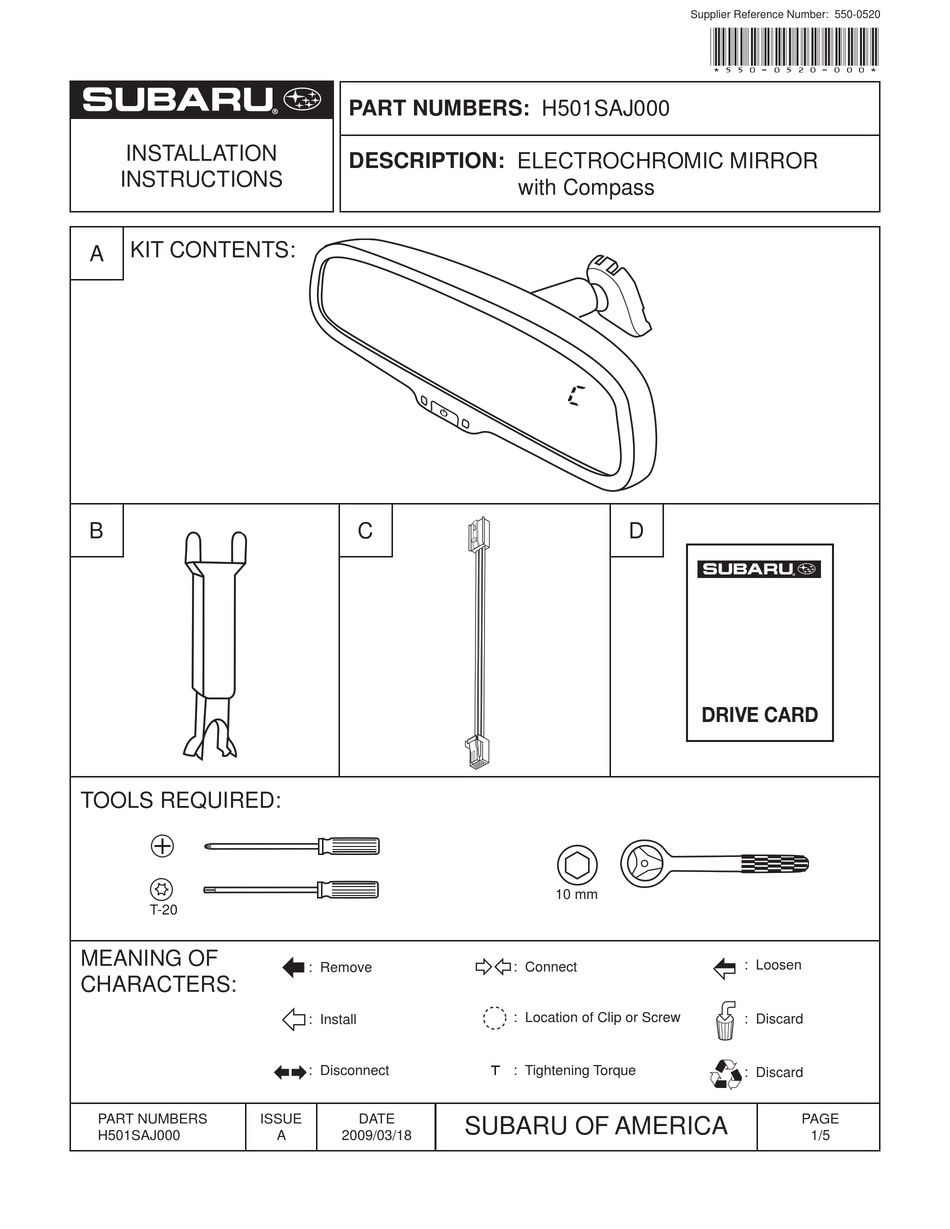

KIT CONTENTS:
A
B
TOOLS REQUIRED:
T-20
MEANING OF
CHARACTERS:
PART NUMBERS
ISSUE
H501SAJ000
PART NUMBERS: H501SAJ000
DESCRIPTION: ELECTROCHROMIC MIRROR
C
: Remove
: Install
: Disconnect
DATE
A
2009/03/18
with Compass
D
10 mm
10 mm
: Connect
: Location of Clip or Screw
: Tightening Torque
SUBARU OF AMERICA
Supplier Reference Number: 550-0520
!550-0520-000!
DRIVE CARD
: Loosen
: Discard
: Discard
PAGE
1/5
