installation instructions

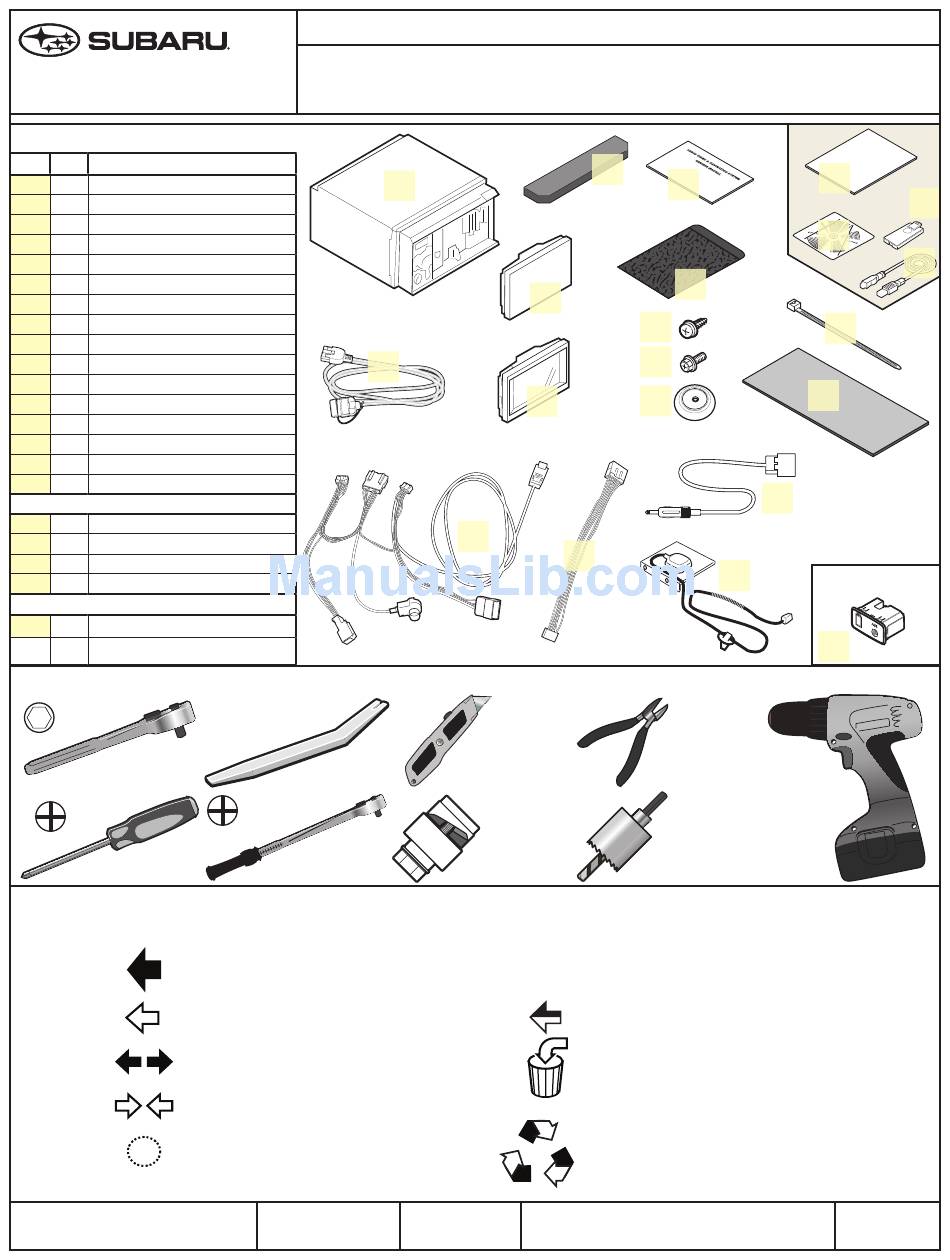

kit Contents:
Item
QtY
DescrIptIon
1
1
Audio HeAd unit w/lAbel
2
1
Audio Cover
3
1
PortAble nAvi. deviCe (Pnd)
4
1
PouCH for Pnd
5
1
MAin HArness
6
1
seCondAry HArness
7
1
rAdio AntennA AdAPter HArness
8
1
iPod HArness (doCk CAble)
9
1
GPs AntennA w/ HArness
10
1
GPs AntennA sCrew
11
9
CAble tie
12
1
GroMMet for iPod
13
1
instAllAtion sPACer
14
8
M5 bolt (4 in kit, 4 on rAdio)
15
1
owner's MAnuAl
16
1
foAM tAPe
tom tom In-Box KIt
17
1
toM toM Cd MAnuAl
18
1
usb CAble
19
1
Pnd bACk Cover
20
1
Pnd QuiCk stArt Guide
ADDItIonAl reQuIreD Items (not In KIt)
21
1
usb/AuX Module (Pn: H621sAJ220)
tools reQuired:
1 "
10MM
MeAninG of CHArACters:
: remove
: install
: disconnect
: Connect
: location of Clip or screw
iMPreZA
PArt nuMber: H001ssC800
desCriPtion: iMPreZA Pnd nAvi. Audio unit
1
8
6
1-1/4" (32MM)
1-1/4" (32MM)
issue
dAte
e
10/26/10
13
2
10
14
3
12
5
PunCH
or
Hole sAw
T
: tighten torque
: loosen
:discard
: reuse
subAru of AMeriCA
20
15
17
4
11
16
7
9
not in kit
21
19
18
PAGe
1/20
Advertisement
Related Manuals for Subaru H001ssC800
Summary of Contents for Subaru H001ssC800
- Page 1 PArt nuMber: H001ssC800 desCriPtion: iMPreZA Pnd nAvi. Audio unit installation instructions kit Contents: Item DescrIptIon Audio HeAd unit w/lAbel Audio Cover PortAble nAvi. deviCe (Pnd) PouCH for Pnd MAin HArness seCondAry HArness rAdio AntennA AdAPter HArness iPod HArness (doCk CAble)
-
Page 2: Installation Overview
DescrIptIon GPs AntennA w/ brACket And HArness seCondAry HArness iPod HArness (doCk CAble) usb/AuX Module (AvAilAble froM subAru (Pn: H621sAJ220)) rAdio AntennA AdAPter HArness MAin HArness disAsseMbly overview pArt nAme rAdio triM rAdio Cover PlAte & PoCket Center Console Center Console’s reAr Cover PlAte... - Page 3 Align the edge of the spacer with the seam on the Audio unit. Cut the Foam Tape [16] provided in the kit as shown. do not discard any of the cut foam Tapes [16]. iMPreZA issue dAte PAGe subAru of AMeriCA 10/26/10 3/20...
- Page 4 Pry tool start by releasing the bottom clips (1) and (2). cAutIon: Avoid scratching the dash and trim panel. 4. remove 4 screws. remove the radio Cover Plate and Pocket. iMPreZA issue dAte PAGe subAru of AMeriCA 10/26/10 4/20...
- Page 5 (1). open the Console. remove the rubber Mat (if equipped). remove 2 screws. iMPreZA issue dAte PAGe subAru of AMeriCA 10/26/10 5/20...
- Page 6 1 screw. remove the Center Console’s rear Cover Plate. remove 1 screw. remove Metal Plate. (if equipped) iMPreZA issue dAte PAGe subAru of AMeriCA 10/26/10 6/20...
- Page 7 Punch or Hole saw, make a hole on the back side of the Center Console as shown. 2-12 dislodge the Center Console and tilt back. cAutIon: Avoid scratching the Center Console or the vehicle. iMPreZA issue dAte PAGe subAru of AMeriCA 10/26/10 7/20...
- Page 8 Panel removal tool, dislodge the AuX Module’s 4 clips from the bottom of the Center Console. discard the vehicle’s AuX Module. cAutIon: Avoid scratching the Center Console. Install the USB/AUX Module [21]. iMPreZA issue dAte PAGe subAru of AMeriCA 10/26/10 8/20...
- Page 9 Gear shift trim. lift to release the rear clips, then pull backwards to release the front clips. perform this step for Automatic transmission Vehicles onlY. Place the vehicle back into “P.” iMPreZA issue dAte PAGe subAru of AMeriCA 10/26/10 9/20...
- Page 10 Panel from the vehicle starting from the top. 2-21 remove any clips that do not come off during the instrument Panel removal in fig. 2-19. re-attach them to the instrument Panel trim. iMPreZA issue dAte PAGe subAru of AMeriCA 10/26/10 10/20...
- Page 11 VerIFY: that the clip is properly seated and secured. center console Connect the Pnd’s secondary Harness [6] to the Vehicle’s 24 Pin Connector (A: i50). iMPreZA issue dAte PAGe subAru of AMeriCA 10/26/10 11/20...
- Page 12 Apply the 1” x 3” (2.54cm x 7.62cm) piece of Foam Tape [16] to the vehicle’s bolt. Connect the iPod Harness [8] to iPod Harness Connector on the Secondary Harness [6]. iMPreZA issue dAte PAGe subAru of AMeriCA 10/26/10 12/20...
- Page 13 Carpet, around the shifter and under the Plastic support as shown. Route the Harnesses [6, 8] towards the vehicle Harness as shown. Route the Harnesses [6, 8] along the vehicle Harness as shown. iMPreZA issue dAte PAGe subAru of AMeriCA 10/26/10 13/20...
- Page 14 4-10 secure the secondary Harness [6] to the Vehicle Harness next to the vehicle Harness Clips with 2 Cable Ties [11]. iMPreZA issue dAte PAGe subAru of AMeriCA 10/26/10 14/20...
- Page 15 Apply the 2” x 3” (5.08cm x 7.62cm) piece of Foam Tape [16] to the Secondary Harness [6] and iPod Harness [8]. 4-13 Secure the Harnesses [6, 8] to the vehicle Harness with 1 Cable tie. iMPreZA issue dAte PAGe subAru of AMeriCA 10/26/10 15/20...
- Page 16 2 screws and the bracket from the radio Cover Plate and Pocket. repeat with the other side. do not discard the brackets. discard the radio Cover Plate, Pocket, and the 4 screws. iMPreZA issue dAte PAGe subAru of AMeriCA 10/26/10 16/20...
- Page 17 4 bolts from the Pnd kit, and 4 bolts from the Audio unit’s shipping brackets. Torque the Bolts to 23.0 ± 5.3 lbf•in (2.6 ± 0.6 N•m) locate the vehicle’s 2 Pin radio Antenna Connector. iMPreZA issue dAte PAGe subAru of AMeriCA 10/26/10 17/20...
- Page 18 2 Pin radio Antenna Connector. Connect the Audio unit’s Main Harness [5] to the Vehicle’s 14 Pin Connector (C: i87). Apply the remaining foam tape to the Secondary Harness’s [6] 8 Pin Connector. iMPreZA issue dAte PAGe subAru of AMeriCA 10/26/10 18/20...
- Page 19 That all the components fit VerIFY: together properly with no uneven gaps. reconnect the vehicle’s negative battery terminal to its original position. cAutIon: do not touch the Positive battery terminal. iMPreZA issue dAte PAGe subAru of AMeriCA 10/26/10 19/20...
-
Page 20: Accessory Function Checks
MP3 Player. □ ConneCt An iPod to tHe iPod doCkinG CAble. iPod/video VerIFY: w/Parking brake on video Plays, VerIFY: w/Parking brake off screen turns blue, Audio still plays. iMPreZA issue dAte PAGe subAru of AMeriCA 10/26/10 20/20...
