Subaru H4610CC000 Installation Manual

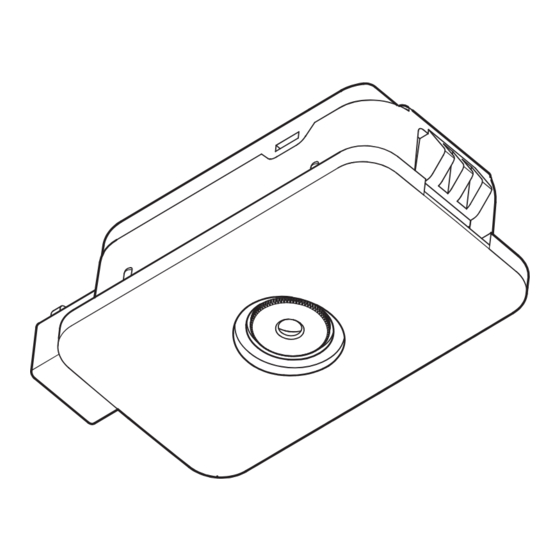

DOOR PROJECTOR LIGHT
SUBARU BRZ 2024MY 〜
PART NO．H4610CC000
For installers
Important
・ We recommend that this product should be installed by a Subaru dealer. Damage and injury resulting from
improper assembly will not be warranted.
・ When installing or removing vehicle parts, pay careful attention not to damage the parts.
・ Ensure that the harnesses are wired safely and properly so that a short circuit does not occur, for example, due
to a contact with a sharp edge of a body panel.
・ For details on how to remove and install vehicle parts, refer to the service manual.
Warning
・・・Be sure to observe the following for safety. Failure to observe these instructions could lead to danger to life or serious damage.
・ Perform this work in a suffi ciently spacious and fl at space while paying attention to safety. Also, perform this
work with the shift knob in neutral or parking, the parking brake set, the engine stopped, and the key removed.
・ Avoid performing this work in an area exposed to rain, etc. Working with wet hands is very dangerous, as doing
so could lead to an electric shock. Also, provide adequate ventilation and pay adequate attention to prevent
accumulation of exhaust gas etc.
Caution
・・・When using or installing this product, be sure to observe the following. Failure to observe these instructions could lead to
product performance deterioration or property damage.
・ Before starting the work, be sure to disconnect the negative (-) battery terminals.
・ When disconnecting and connecting the connector, hold the connector and ensure to do so securely.
If the connector is not connected securely, the light may not come on.
・ When connecting the connector, secure the connector fi rmly by inserting it all the way.
・ Do not pull the harness with excessive force. Doing so may cause the terminal to come off , resulting in a
contact failure. Also, wire the harness so that it is not caught in the moving part.
・ When removing or restoring the vehicle parts to their original states, follow the service manual.
・ When removing dirt on the product, wipe it off with sponge or other cloth dampened with neutral detergent.
Never use an organic solvent, such as thinner, or acid or alkaline cleaner.
PKI-0094-2
-1-
Installation Manual
△ 01
