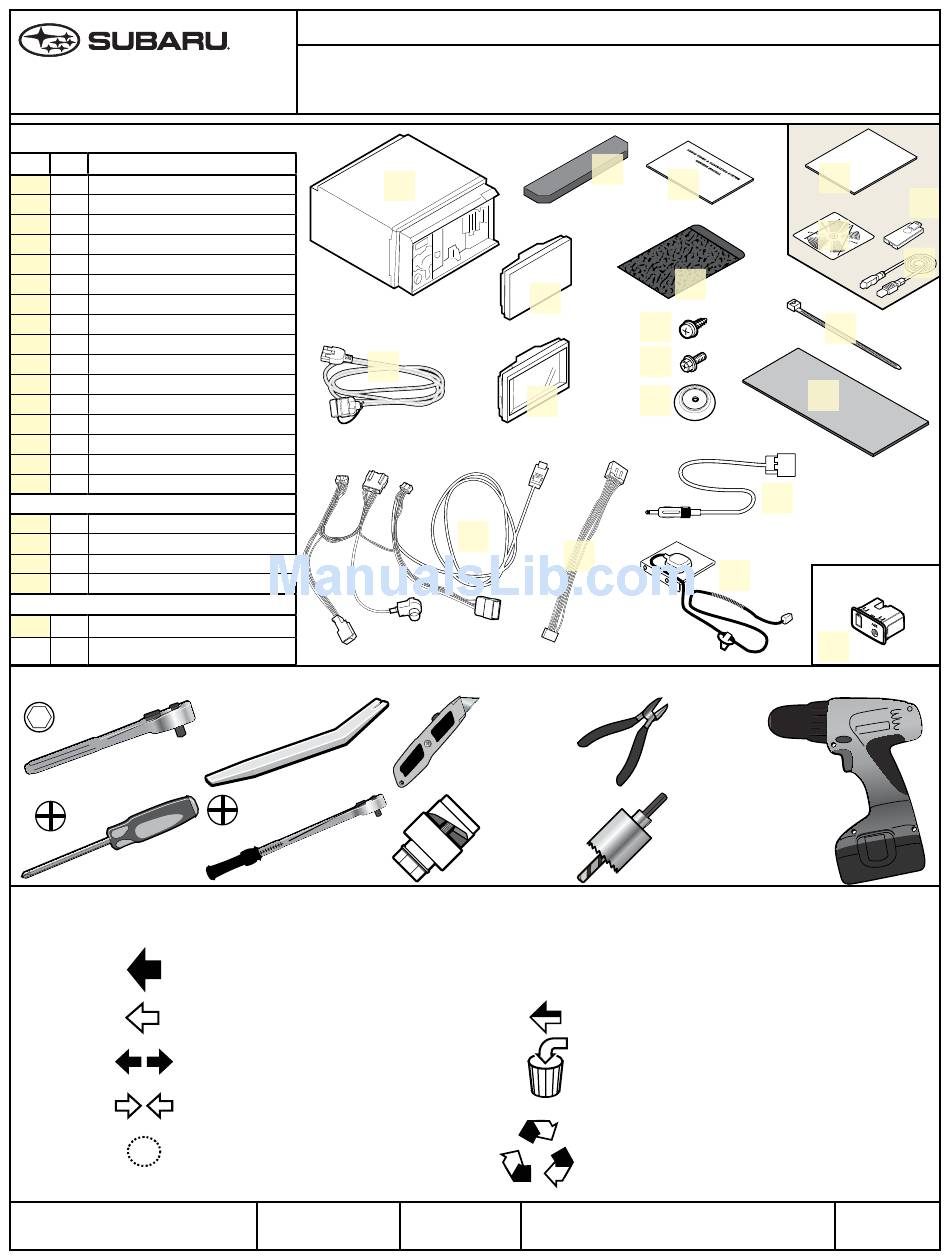

installation instructions
kit Contents:
Item
QtY
DescrIptIon
1
1
Audio HeAd unit w/lAbel
2
1
Audio Cover
3
1
PortAble nAvi. deviCe (Pnd)
4
1
PouCH for Pnd
5
1
MAin HArness
6
1
seCondAry HArness
7
1
rAdio AntennA AdAPter HArness
8
1
iPod HArness (doCk CAble)
9
1
GPs AntennA w/ HArness
10
1
GPs AntennA sCrew
11
9
CAble tie
12
1
GroMMet for iPod
13
1
instAllAtion sPACer
14
8
M5 bolt (4 in kit, 4 on rAdio)
15
1
owners MAnuAl
16
1
foAM tAPe
tom tom In-Box KIt
17
1
toM toM Cd MAnuAl
18
1
usb CAble
19
1
Pnd bACk Cover
20
1
Pnd QuiCk stArt Guide
ADDItIonAl reQuIreD Items (not In KIt)
21
1
usb/AuX Module (Pn: H621sAJ220)
tools reQuired:
1 "
10MM
MeAninG of CHArACters:
: remove
: install
: disconnect
: Connect
: location of Clip or screw
forester
PArt nuMber: H001ssC800
desCriPtion: forester Pnd nAvi. Audio unit
1
8
6
1-1/4" (31.7MM)
1-1/4" (31.7MM)
issue
dAte
C
10/22/10
13
2
10
14
3
12
5
PunCH
or
Hole sAw
T
: tighten torque
: loosen
:discard
: reuse
subAru of AMeriCA
20
15
17
4
11
16
7
9
not in kit
21
19
18
PAGe
1/21
Advertisement
Related Manuals for Subaru H001ssC800
Summary of Contents for Subaru H001ssC800
- Page 1 PArt nuMber: H001ssC800 desCriPtion: forester Pnd nAvi. Audio unit installation instructions kit Contents: Item DescrIptIon Audio HeAd unit w/lAbel Audio Cover PortAble nAvi. deviCe (Pnd) PouCH for Pnd MAin HArness seCondAry HArness rAdio AntennA AdAPter HArness iPod HArness (doCk CAble)
-
Page 2: Installation Overview
DescrIptIon GPs AntennA w/ brACket And HArness seCondAry HArness iPod HArness (doCk CAble) usb/AuX Module (AvAilAble froM subAru (Pn: H621sAJ220) rAdio AntennA AdAPter HArness MAin HArness disAsseMbly overview pArt nAme rAdio triM rAdio Cover PlAte & PoCket Center Console... - Page 3 Align the edge of the spacer with the seam in the Audio unit. Cut the Foam Tape [16] provided in the kit as shown. do not discard any of the cut foam Tape [16]. issue dAte PAGe forester subAru of AMeriCA 10/22/10 3/21...
- Page 4 Pry tool start by releasing the bottom clips (1) and (2) cAutIon: Avoid scratching the trim and dash panel. 4. remove 4 screws. remove the radio Cover Plate and Pocket. issue dAte PAGe forester subAru of AMeriCA 10/22/10 4/21...
- Page 5 (1). open the Console. remove any trays. remove the rubber Mat (if equipped). remove 2 screws. issue dAte PAGe forester subAru of AMeriCA 10/22/10 5/21...
- Page 6 1 screw. dislodge the Center Console and tilt back. disconnect the Connectors from the bottom of the Console. disconnect the Harness Clamp. issue dAte PAGe forester subAru of AMeriCA 10/22/10 6/21...
- Page 7 AUX ONLY Module. Using the Nylon Panel Removal Tool, dislodge the AUX Module’s 4 clips from the bottom of the Center Console. Discard the Vehicle’s AUX Module. CAUTION: Avoid scratching the Center Console. issUe DATe PAge fOResTeR sUbARU Of AMeRiCA 10/22/10 7/21...
- Page 8 “d.” 2-15 remove the Gear shift trim lift to release the rear clips, then pull rearwards to release. Place the vehicle back into “P.” issue dAte PAGe forester subAru of AMeriCA 10/22/10 8/21...
- Page 9 2-18 remove any clips that do not come off during the instrument Panel Trim removal in fig. 2-16. re-attach them to the instrument Panel trim. issue dAte PAGe forester subAru of AMeriCA 10/22/10 9/21...
- Page 10 VerIFY: that the clip is properly seated and secure. center console Connect the Pnd’s secondary Harness [6] to the Vehicle’s 24 Pin Connector (A: i50). issue dAte PAGe forester subAru of AMeriCA 10/22/10 10/21...
- Page 11 Harness with 1 Cable Tie [11]. locate the vehicle’s 8 Pin rearview Camera Connector (i146). Connect the secondary Harness’s [6] 8 Pin Connector to the vehicle’s rearview Camera Connector. issue dAte PAGe forester subAru of AMeriCA 10/22/10 11/21...
- Page 12 Secure the Secondary Harness [6] to the vehicle Harness near the vehicle Harness Clamp with 1 Cable Tie [11]. Route the Harnesses [6] as shown. secure them to the vehicle Harness using 1 Cable Ties [11]. issue dAte PAGe forester subAru of AMeriCA 10/22/10 12/21...
- Page 13 Connect the iPod Harness [8] to iPod Harness Connector on the Secondary Harness [6]. secure the iPod Harness Con- nectors [6,8] and the Secondary Harness [6] to the Vehicle using 1 Cable Tie [11]. issue dAte PAGe forester subAru of AMeriCA 10/22/10 13/21...
- Page 14 Apply the 2” x 3” (5.08cm x 7.62cm) piece of Foam Tape [16] to the Harnesses as shown. 4-11 Route the Harnesses [6, 8] securing them to the vehicle Harness with 1 Cable Tie [11]. issue dAte PAGe forester subAru of AMeriCA 10/22/10 14/21...
- Page 15 1 Cable Tie [11]. 4-14 route the usb Connector on the Secondary Harness [6] and the vehicle’s AuX Connector through the console opening and connect them to the usb/AuX Module [21]. issue dAte PAGe forester subAru of AMeriCA 10/22/10 15/21...
- Page 16 Harness [8] is accessible. 4-17 Install the USB/AUX Module [21] and the Grommet [12] into the Center Console. That the Grommet [12] and VerIFY: the USB/AUX [21] module seats properly. issue dAte PAGe forester subAru of AMeriCA 10/22/10 16/21...
- Page 17 “l.” 4 bolts from the Pnd kit, and 4 bolts from the Audio unit’s shipping brackets. Torque the Bolts to 23.0 ± 5.3 lbf•in (2.6 ± 0.6 N•m) issue dAte PAGe forester subAru of AMeriCA 10/22/10 17/21...
- Page 18 Connect the Audio unit’s radio Antenna Adapter [7] to the vehicle’s 2 Pin radio Antenna Connector. Connect the Audio unit’s Main Harness [5] to the Vehicle’s 14 Pin Connector (d: i87). issue dAte PAGe forester subAru of AMeriCA 10/22/10 18/21...
- Page 19 Antenna Adapter [7], and the GPS Anten- na [9] to the Audio Unit [1]. Install the Audio Unit [1]. use the 4 screws from the radio Cover Plate & Pocket. issue dAte PAGe forester subAru of AMeriCA 10/22/10 19/21...
- Page 20 That all the components fit VerIFY: together evenly with no uneven gaps. reconnect the vehicle’s negative battery terminal to its original position. cAutIon: do not touch the Positive batter terminal. issue dAte PAGe forester subAru of AMeriCA 10/22/10 20/21...
-
Page 21: Accessory Function Checks
MP3 Player. □ ConneCt An iPod to tHe iPod doCkinG CAble. iPod/video VerIFY: w/Parking brake on video Plays, VerIFY: w/Parking brake off screen turns blue, Audio still plays. issue dAte PAGe forester subAru of AMeriCA 10/22/10 21/21...
