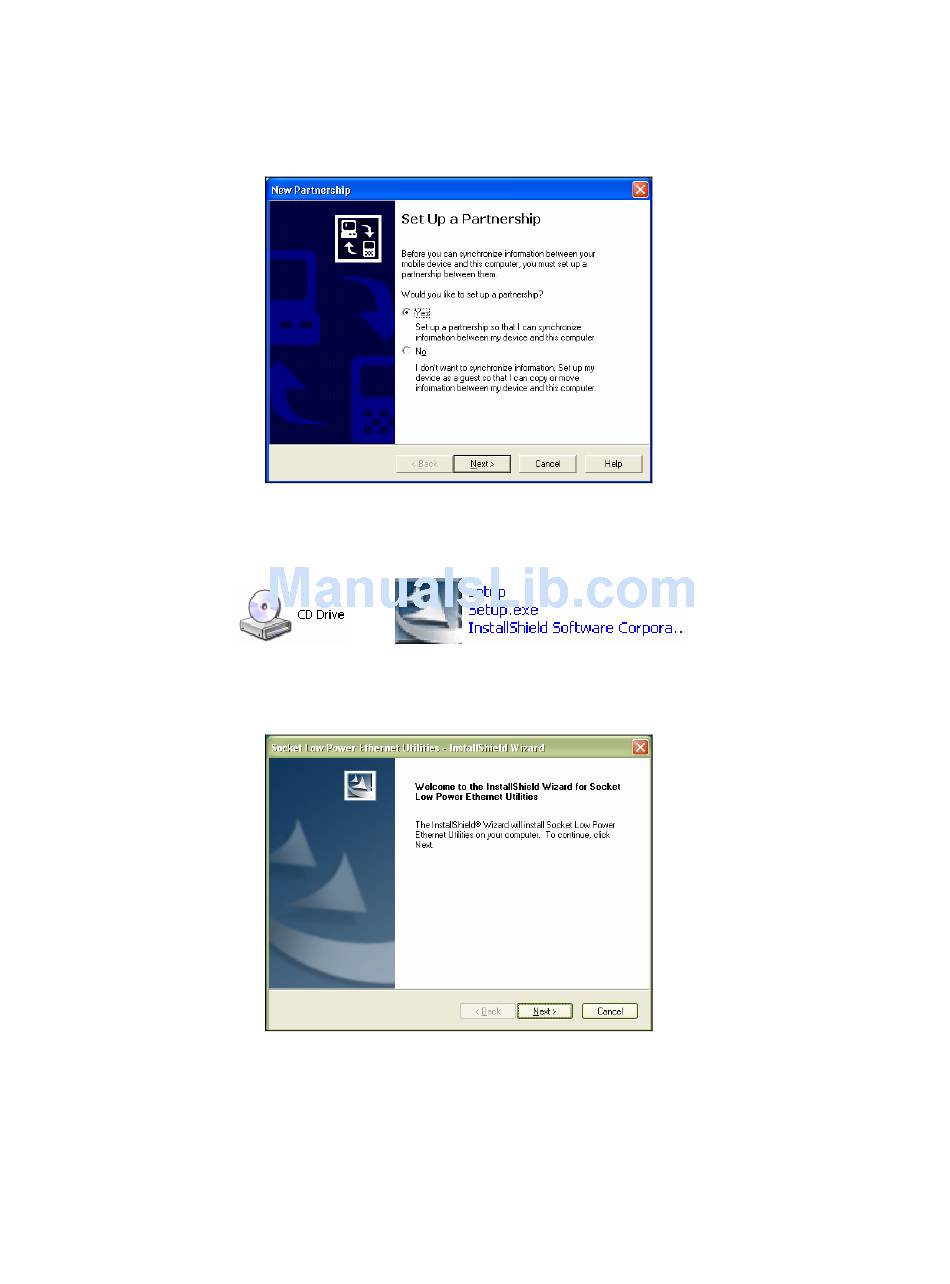

• If no partnership exists, follow the screens that appear to set one up.

4. Insert the Socket Low Power Ethernet Installation Disc into the host PC.

Use My Computer or Windows Explorer to access the CD drive. In the

CD, click on Setup.exe.

5. The installation wizard should begin. Follow the instructions on your

host PC and mobile computer screen until installation is complete.

6. After completing the installation, disconnect the mobile computer from

the serial/USB connection cable/cradle. Soft reset the mobile computer

by pushing the reset button.

CHAPTER 2: SETUP FOR WINDOWS MOBILE

IMPORTANT!

You must set up a

partnership, or you will not

be able to synchronize

data between your device

and host PC!
