Asante IntraCore 3524 Series User Manual

Gigabit ethernet switches
Hide thumbs Also See for IntraCore 3524 Series:
Table of Contents

Advertisement

Quick Links

™

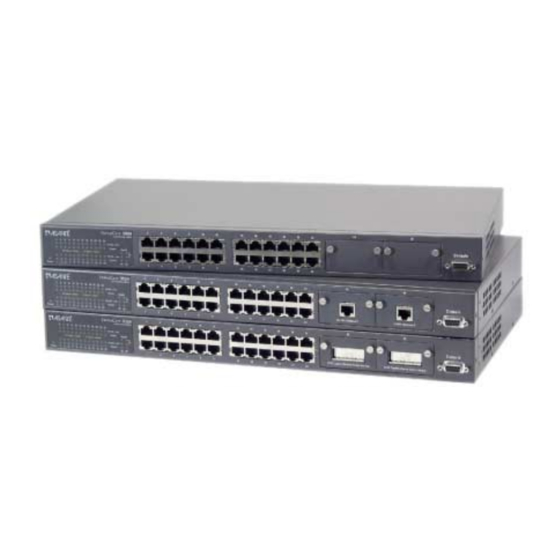

IntraCore
3524 Series
Gigabit Ethernet Switches
User's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IntraCore 3524 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Asante IntraCore 3524 Series

Summary of Contents for Asante IntraCore 3524 Series

  • Page 1 ™ IntraCore 3524 Series Gigabit Ethernet Switches User’s Manual...

  • Page 2: Quick Start Guide

    Quick Start Guide Follow these steps to install your IntraCore switch: Open the box and check the contents. See Chapter 1.1 Package Contents for a complete list of the items included with your IntraCore switch. Install the switch in an equipment or wall rack, or prepare it for desktop placement. Connect the power cord to the unit and to an appropriate power source.
  • Page 3 IntraCore 3524 Series Gigabit Ethernet Switches User’s Manual Asanté Technologies, Inc. 821 Fox Lane San Jose, CA 95131 SALES 800-662-9686 Home/Office Solutions 800-303-9121 Enterprise Solutions 408-435-8388 TECHNICAL SUPPORT 801-566-8991: Worldwide 801-303-3787: FAX www.asante.com support@asante.com Copyright © 2001 Asanté Technologies, Inc. All rights reserved. No part of this document, or any associated artwork, product design, or design concept may be copied or reproduced in whole or in part by any means without the express written consent of Asanté...

  • Page 4: Table Of Contents

    Table of Contents Quick Start Guide Chapter 1. Introduction 1.1 Package Contents 1.2 LEDs 1.3 Front Panel Description 1.4 Management and Configuration Chapter 2. Hardware Installation and Setup 2.1 Installation Overview 2.2 Installation into an Equipment Rack 2.3 GBIC Interfaces 2.4 Installing Optional Hardware Modules 2.5 Connecting Power 2.6 Connecting to the Network...
  • Page 5 5.10 Duplicate IP Button Chapter 6. SNMP Management 6.1 SNMP Management Operations 6.2 The SNMP Protocol 6.3 Community Name and Security 6.4 The MIB Tree Chapter 7. Switching Concepts 7.1 VLANs 7.2 Spanning Tree Protocol 7.3 Full Duplex, Flow Control and Auto-negotiation Appendix A.

  • Page 6: Chapter 1. Introduction

    Chapter 1. Introduction Thank you for purchasing the Asanté IntraCore 3524 Series Gigabit switch. The IntraCore 3524 is a 24-port 10/100 managed switch with a variety of hardware and software options. Hardware expansion slots (two Type IC35) can accept a wide range of Gigabit and 10/100 Mbps media modules:...

  • Page 7: Front Panel Description

    Port # Color Description Power/System Green Power is on Power is off 1-24(10/100) 10/100 Link Solid Green A valid 100 Mbps link has been established Solid Amber A valid 10Mbps has been established No link has been established 1-24(10/100) Duplex Solid Green Full Duplex Solid Amber...

  • Page 8: Management And Configuration

    The switch is field upgradeable for use with 100BaseeFX, 1000BaseSX, 1000BaseX GBIC or 10/100/1000BaseT modules. 1.4 Management and Configuration There are three different methods by which a user can manage the switch: web, console/telnet, or with SNMP software. You may prefer using a web browser to be able to configure the switch from any local or remote computer, via the network, or you may wish to use a console for out-of-band management.

  • Page 9: Chapter 2. Hardware Installation And Setup

    Chapter 2. Hardware Installation and Setup The following guidelines will help you to easily install the switch, and to ensure that it has the proper power supply and environment. 2.1 Installation Overview Follow these steps to install your IntraCore switch: Open the box and check the contents.

  • Page 10: Installation Into An Equipment Rack

    2.1.2 Recommended Installation Tools You will need the following tools and equipment (not included) to install the IntraCore 3524 switch into an equipment rack: Flat head screwdriver Phillips head screwdriver Antistatic mat or foam 2.1.3 Power Requirements The electrical outlet should be located near the IntraCore 3524 and be easily accessible. It must also be properly grounded.

  • Page 11: Gbic Interfaces

    2.2.1 Equipment Rack Guidelines Use the following guidelines to ensure that the switch will fit safely within the equipment rack: Size: 17.25 x 10.0 x 1.8 inches (423 x 245 x 39 mm) Ventilation: Ensure that the rack is installed in a room where the temperature remains below 40° C (104°...

  • Page 12: Installing Optional Hardware Modules

    2.3.2 Removing a GBIC Caution: GBIC 1000T modules run hot under normal operating conditions. When it has been removed from the system, place it on a heat resistant surface and allow the module to cool before handling. Note: Unnecessary removals/insertions of a GBIC module will lead to premature failure of the GBIC. The rated duty cycle for a GBIC module is 100 to 500 removals/insertions.

  • Page 13: Connecting To The Network

    Important: If the power does not come on, check the next section to ensure you are using the correct cabling. 2.6 Connecting to the Network The switch may be connected to an Ethernet network with the unit powered on or off. Use the following procedure to make your network connections: Connect your network devices to the IntraCore 3524, following the cable guidelines outlined below.

  • Page 14: Setup

    2.6.2 Gigabit Ethernet Ports Cabling Procedures Cabling requirements for the optional hardware modules depend on the type module that has been installed. Use the following guidelines to determine the cabling requirements for your modules: 1000BaseSX GBIC: Cables with SC-type fiber connectors; 62.5-micron multimode fiber (MMF) media up to 275 meters (902 feet) long, or 50-micron MMF media up to 550 meters (1805 feet) long 1000BaseLX GBIC: Cables with SC-type fiber connectors;...

  • Page 15: Changing The Password

    See Chapter 3. Configuration for more information on configuring the switch via telnet. 2.8 Changing the Password The default password (which is Asante, and is case sensitive), may allow immediate access to ANYONE on the network. To protect your switch from unauthorized changes to the configuration, you must change the administrator’s password.

  • Page 16: Ip Assignment

    2.9 IP Assignment To change the IP address of the switch from the default setting: Access the System IP Configuration menu by typing i in the Configuration menu. Type the command letter of the option you want to change. Type the new address at the prompt. To cancel a change, type ctrl-c at the command prompt.

  • Page 17: Using The Stacking Feature

    2.11 Using the Stacking Feature The 3524 v.1.1 offers a stacking feature that allows the user to stack up to eight units, all sharing one IP address of the master switch (unit #1). This is an efficient and cost-effective way to add ports as needed. The following lists the characteristics of stacking that the user needs to be aware of: Uses any physical media supported by IC 3524: copper or fiber, Fast Ethernet or Gigabit Ethernet (see the stacking kit {sold separately} shown below);...
  • Page 18 For stacking operation, the stacking feature must first be enabled on each unit (by default, stacking is disabled). Establish a console connection to the first unit. Type k in the Configuration Menu to access the Stacking Management menu. Type t to toggle the switch from “disabled” to “enabled”. Repeat for all remaining units.

  • Page 19: Chapter 3. Configuration

    When you connect to the Local Management Interface, the “Enter Password” prompt appears. Enter your password, and then press Enter. The Main Menu appears. Important! The default password is Asante. The password is case-sensitive; enter it exactly as shown. After logging in, the Main Menu appears, as shown below.

  • Page 20: General Information

    System Unit Map ================= Please select one of the following slots Slot Description (Unit Type) ---- ------------------------------------------- IntraCore 3524 Unit IntraCore 3524 Unit IntraCore 3524 Unit IntraCore 3524 Unit IntraCore 3524 Unit IntraCore 3524 Unit IntraCore 3524 Unit IntraCore 3524 Unit Enter Unit Number (1 - 8) >...

  • Page 21: System Administration Configuration

    The System Administration Configuration Menu displays and allows you to change the name of the switch, its location, and the contact information. IntraCore 3524 System Admin. Configuration Menu Description: Asante Technologies, Inc. IntraCore 3524 Version: FW(1.10) Object ID: 1.3.6.1.4.1.298.2.2.27 Name:...

  • Page 22: System Ip Configuration

    To cancel a selected option, press ctrl-c at the command prompt. Press Enter. The system administration information changes take effect. Type q to quit and return to the Configuration Menu. 3.4 System IP Configuration The System IP Configuration Menu displays and allows you to change the information needed to access the switch over the network via in-band management.

  • Page 23: Snmp Configuration

    IntraCore 3524 Bootstrap Configuration Menu Bank 1 Image Version/Date: 1.10/Dec 5 2001 13:54:06 Bank 2 Image Version/Date: 1.00I/Dec 5 2001 13:54:06 (Running) Load Mode: Local Boot Bank: <Cmd> <Description> Set Load Mode to REMOTE Toggle Boot Bank Commence Bootstrap Sequence Return to previous menu Command>...
  • Page 24 For a description of read and write community strings, see the table below: Settings Description SNMP Read The string that defines access rights for reading SNMP data objects. The default is public. Community SNMP Write The string that defines access rights for writing SNMP data objects. The default is private.

  • Page 25: Port Configuration

    Open the SNMP Configuration Menu by typing n in the Configuration Menu. Type d to Delete a Trap Receiver. A prompt for the entry of the trap receiver appears. Enter the number of the entry you want to delete (1,2,3, or 4) and press Enter. The trap receiver is deleted from the SNMP Trap Receivers list.

  • Page 26: Enabling Or Disabling A Port

    To see legends explaining the symbols used for both the Basic and Global Port Configuration Menu settings, type h. A screen appears, as shown below. Legends for port status: Legends for port speed & duplex: X - Absent f - 10 Mbps &...
  • Page 27 To toggle the port’s auto-negotiation mode to Enabled or to return it to Manual, type a. To configure auto-negotiation on another unit in the stack, type u to select the unit. The Auto Negotiation status changes immediately, and is displayed on the Auto-Negotiation line near the top of the Port Configuration Menu.

  • Page 28: Advanced Port Configuration

    3.8 Advanced Port Configuration The Advanced Port Configuration Menu allows you to control the port broadcast and multicast rate, to enable or disable 802.3x flow control, and to set the default priority of the port. To access the Advanced Port Configuration Menu, type v in the Port Configuration Menu. The Advanced Port Configuration Menu appears, as shown below.

  • Page 29: Setting Port Default Priority

    Type v to access the Advanced Port Configuration Menu. To select the port for which you want to enable or disable class of service, type s, n or p. To toggle traffic class of service for the selected port, type c. To configure class of service on another unit in the stack, type u to select the unit.

  • Page 30: Unicast Forwarding Database Configuration

    3.9 Unicast Forwarding Database Configuration The Unicast Forwarding Database Configuration Menu allows you to view and search for addresses in the MAC Forwarding Table for the IntraCore 3524. It also provides options for displaying MAC addresses and IP/MAC binding by individual port or by VLAN. The MAC Forwarding Table is a table of node addresses that the switch automatically builds by “learning.”...

  • Page 31: Searching For A Mac Address

    +------+----+----+-----------------+---------+ |Unit|Port|Type| MAC Address PVID +------+----+----+-----------------+---------+ 00:00:94:00:00:10 0001 00:00:94:75:2B:D0 0001 00:00:94:93:21:38 0001 00:00:94:B4:7E:34 0001 00:00:94:C6:51:07 0001 00:00:94:C6:FC:43 0001 00:00:94:CB:5F:0E 0001 00:00:94:CC:C4:E5 0001 00:00:94:CC:C5:36 00:00:94:CC:C7:37 0001 00:0A:27:89:94:A4 0001 00:10:A4:B0:41:F9 0001 00:30:65:E7:17:8C 0001 00:40:33:E3:0A:83 0001 00:40:F4:29:A2:D5 0001 00:80:AD:B6:91:F9 0001 00:A0:24:9A:1E:4E 0001 00:C0:02:55:13:67 0001 00:E0:52:01:44:46 0001...

  • Page 32: Security Management

    3.10 Security Management See Chapter 4 Advanced Management. 3.11 VLAN Management See Chapter 4 Advanced Management. 3.12 IP Multicast Traffic Management See Chapter 4 Advanced Management. 3.13 Port Mirroring Configuration Port mirroring allows you to configure the switch to copy all traffic associated with one port (the Monitor Port) to a Mirror Port on the switch.

  • Page 33: File Up/Downloading Configuration

    The change is reflected immediately in the settings shown at the top of the Port Mirroring Configuration menu. 3.13.3 Setting the Monitor Port To specify which port to monitor, use the following procedure: Type m in the Configuration menu to display the Port Mirroring Configuration menu. If necessary, select which unit to be configured on the System Unit Map and press Enter, or select another unit by typing u in the command line.

  • Page 34: Image Downloading Through Tftp

    3.14.1 Image Downloading through TFTP To download a new image file in-band through TFTP, type t in the Image File Downloading Configuration Menu. IntraCore 3524 TFTP File Downloading Menu Bank 1 Image Version/Date: 1.10/Dec 05 2001 13:54:06 Bank 2 Image Version/Date: 1.10/Dec 05 2001 13:54:06 (Running) File Type: Image...
  • Page 35 To download a new image through the switch’s serial (console) port, type x in the Image File Downloading Configuration Menu. The X/Y/ZModem Image File Downloading Menu appears, similar to the screen shown below. IntraCore 3524 X/Y/ZMODEM File Downloading Menu Bank 1 Image Version/Date: 1.10/Dec 05 2001 13:54:06 Bank 2 Image Version/Date: 1.10/Dec 05 2001 13:54:06 (Running)

  • Page 36: System Reset Configuration

    3.15 System Reset Configuration The System Reset Configuration Menu allows you to reset the switch by performing a “warm” reboot. It also allows you to schedule a reset up to 24 hours in advance. IntraCore 3524 System Reset Configuration Menu Bank 1 Image Version/Date: 1.10/Dec 05 2001 13:54:06 Bank 2 Image Version/Date:...

  • Page 37: System Log

    3.16 System Log The IntraCore 3524 system log records and displays any major system events on the switch, such as fatal errors, plugging in or removing a module, etc. To view the system log, use the following procedure: Type l in the Configuration Menu. The System Log Menu appears, as shown below. IntraCore 3524 System Log Menu <Cmd>...

  • Page 38: User Interface Configuration

    3.17 User Interface Configuration The User Interface Configuration Menu lets you set the idle time-out periods for both the console and telnet user interfaces, change the password used for logging in to the Local Management Interface, and enable or disable the Web server. To display the User Interface Configuration Menu, as shown below, type u in the Configuration Menu.

  • Page 39: System Utility

    Use this option to change the password that the user must enter when they log in. Important! The factory default password is Asante. The password is case-sensitive. To change the current Local Management Interface or Web-based Interface password, use the following procedure: Type p in the User Interface Configuration Menu.

  • Page 40: Viewing Statistics

    3.19 Viewing Statistics Viewing statistics on a regular basis allows you to evaluate your network’s performance. You can view current statistics for the IntraCore 3524 on a per-port basis and can change your view of those statistics and the counters displayed in it. To view statistics use the following procedure: Type s in the Main Menu.

  • Page 41: Chapter 4. Advanced Management

    Chapter 4. Advanced Management This chapter deals with the advanced management of the switch, via the console mode or telnet connection. See Chapter 5. Web-Based Management for information on managing the switch through your web browser. The following sections describe the these advanced topics for management of the IntraCore 3524: Spanning Tree Protocol SNMP and RMON Management Security Management...

  • Page 42: Spanning Tree Port Configuration

    IntraCore 3524 Spanning Tree Configuration Menu STP Status: Enabled Bridge ID: 8000 00:00:94:CC:C7:37 Designated Root: 4000 00:00:94:AA:64:31 Root Port: Unit: 2 Port: 1 Root Path Cost: Addr Ageout Time: 300 Hello Time: Sec. Bridge Hello Time: Sec. Maximum Age: 20 Sec. Bridge Maximum Age: 20 Sec.

  • Page 43: Snmp And Rmon Management

    4.2 SNMP and RMON Management The Simple Network Management Protocol (SNMP) may be used to manage the IntraCore 3524. The SNMP agent supports database objects that are defined in the following management information bases (MIBs): MIB II (RFC 1213) Bridge MIB (RFC 1493) RMON (RFC 1757) 4 groups - Ethernet Statistics, Ethernet History, Alarm, and Events (See next section for details) Private Asanté...

  • Page 44: Enabling And Disabling Station Movement Trap

    addresses are used on the system, the MAC addresses of both stations and the ports they accessed are logged. If you enable both duplicated IP detection and duplicated IP trap, the designated trap receiver gets an alert each time a duplicated IP address is used on the system. In order to send duplicated IP traps, duplicated IP detection must be enabled.

  • Page 45: Configuring Port Security

    4.3.3 Configuring Port Security To access the Port Security Configuration Menu, type t in the Configuration Menu to access the Security Management Menu, then type p to access the Port Security Configuration Menu. A screen similar to the following will appear: IntraCore 3524 Port Security Configuration Menu Unit Type: [24-100TX/RJ45] Unit: 01 Port: 01...
  • Page 46 To enable New Node detection: From the Configuration Menu, type t to access the Security Management Menu. Type p to access the Port Security Configuration Menu, as shown in Figure 4-5. Type t to choose Toggle Port Security Trap. Type l to toggle the new node trap (if it is not already enabled). Configuring Port Lock and Intruder Lock The port intruder security measure allows you to create a port-trusted MAC address that is the only station with full rights to direct traffic to the port.

  • Page 47: Vlan Management

    Inserting/Modifying a Port Trusted MAC Address When you set port security level 2 or 3 for a port, you specify the port-trusted MAC address. You can change that address for a port without completing all the steps to set the port security. To add or change the port-trusted MAC address: From the Configuration Menu, type t to access the Security Management Menu.

  • Page 48: Configuring Static Vlan Groups

    Adding and deleting untagged sets Sharing and unsharing VLANs Inserting and removing MAC addresses Toggling management access To access the VLAN Management Menu, type v in the Configuration Menu. A screen similar to the following will appear: IntraCore 3524 VLAN Management Menu VLAN Version: VLAN Type: Port Based...
  • Page 49 Creating a VLAN Follow the steps below to create a new VLAN: Type c from the VLAN Group Static Configuration Menu. Type s to select the VLAN, and then enter the VLAN ID (VID) that you decided to use. You will notice that the VID for an unused VLAN is 0000.

  • Page 50: Configuring Vlan Port Attributes

    VLAN Membership : 0001u <Cmd> <Description> Change Port VLAN ID Add VLANs to Port Delete VLANs from Port Set Port Type (IEEE 802.1Q Trunk/ASANTE Trunk/Normal) Advanced Config Menu Vlan Group Static Config Menu Return to previous menu Command> Select U)nit...

  • Page 51: Displaying A Summary Of Vlan Groups

    To set the VLAN ID for the port (PVID), from the VLAN Port Configuration Menu, type c. Enter the number you are assigning (from 1- 4094). Press Enter when you are done. Adding and Deleting VLANs from the Port To add or delete VLANs assigned to a port, type a to add, or d to delete from the VLAN Port Configuration Menu.

  • Page 52: Ip Multicast Traffic Management

    IntraCore 3524 Unit 1 Port VLAN Info ======|======|====================|============|===========|================| Port | PVID | Vlan | Acceptable | Ingress | Port Number| | Membership | Frame Type | Filtering | Type ======|======|====================|============|===========|================| | 0001 | 0001u | All Frames | Disabled | Normal | 0001 | 0001u | All Frames | Disabled | Normal...
  • Page 53 Protocol-Independent Multicast (PIM), routers maintain forwarding tables that they use to forward multicast datagrams. Packets delivered to members of the multicast group are identified by a single multicast group address. Any host, regardless of whether it is a member of a group, can send to a group. However, only the members of a group receive the message.
  • Page 54 +--------------------+---------+-----------------------+ | Multicast IP Addr Action +--------------------+---------+-----------------------+ xxx.xxx.xxx.xxx 0001 Mgm Action xxx.xxx.xxx.xxx 0001 Mgm Action xxx.xxx.xxx.xxx 0001 Mgm Action xxx.xxx.xxx.xxx 0002 Mgm Action xxx.xxx.xxx.xxx 0002 Mgm Action End of Summary, Quit 4.5.2 IP Multicast Forwarding Database Configuration The Multicast Forwarding Database lists addresses of multicast groups, and assigns them to specific VLANs.

  • Page 55: Chapter 5. Web-Based Management

    Enter user name IntraCore and a password in the dialog box that opens. The password is the same as the current console password (The default password is Asante). Note: The user name and password are case-sensitive and must appear exactly as they are shown here.

  • Page 56: Front Panel Button

    The Web Browser Management Overview page contains a sidebar with ten management option buttons, and a view of the IntraCore front panel that displays real-time switch operating information, as well as contact information for Asanté Technologies, Inc. Note: The browser pages shown in this chapter are typical of those used for the IntraCore, and settings are given only as examples.

  • Page 57: Statistics Button

    The page has six sections, which are listed at the top of the page. To view another section, click a link at the top of the page or scroll down. The General Information parameters are described fully in “Viewing General Information” in Chapter 3. 5.3 Statistics Button This button opens the Statistics page, which presents a graphical image of the IntraCore statistics, as shown below.

  • Page 58: Port Config (Port Configuration) Button

    Rate Button – Displays the rate of the packets or bytes per port. Since Rst Button– Displays the packets/bytes switched since the management counters were last reset or cleared. Reset Button– Clears the counters for future samplings. Counters – Displays the statistical counters of the associated view, since up or since reset. Note: You may also view a summary of the frames per port by placing the cursor on the desired bar.

  • Page 59: Span Tree (Spanning Tree) Button

    Configure the variables by choosing the desired option from each drop-down menu. 5.5 Span Tree (Spanning Tree) Button This button opens the Spanning Tree Protocol (STP) Configuration page, which shows the STP Configuration of the IntraCore, as shown below. STP configuration is explained in Chapter 4. Advanced Management. Click the STP Port Configuration button to display the STP Configuration settings for each port (see the port configuration page below), or configure the ports all together (globally) from the right side of the page.

  • Page 60: Snmp Button

    Important! Do NOT configure any STP parameters unless you have knowledge of and experience with the IEEE 802.1d specification. 5.6 SNMP Button This button displays the SNMP (Simple Network Management Protocol) page, as shown below. See “SNMP Configuration” in Chapter 3 for an explanation of SNMP settings. 5.7 Addr (Address) Table Button The Addr Table button opens the MAC and IP Address Table page, which displays two tables, as shown below.

  • Page 61: Vlan Button

    The top table displays the counts of IP and MAC addresses for each port. The lower table displays IP and MAC addresses for either a particular port, or all ports. The activity status (Entry) and VLAN segment (VSEG) are also displayed for each device. To see the MAC and IP addresses, the activity status, and the VLAN segment for the devices connected to a particular port, click the port’s number in the top table.
  • Page 62 port attributes page to access the VLAN Groups page. In the VLAN Groups page, there is a panel that shows the VID of each VLAN on the current switch. To configure a VLAN, select the VID of the desired VLAN. To configure the ports for the selected VLAN, click the Ports button.
  • Page 63 5.8.2 VLAN Configuration To configure a VLAN, first select a VID in the VLAN Groups page, and then click the VLAN button. This opens the VLAN Group Configuration options page, shown below. Creating or Modifying a VLAN To create or modify the basic attributes of a VLAN group, click the Create or Modify button in the VLAN Group Configuration dialog box.
  • Page 64 In the right-hand panel you can select the option to show the ports that are in the untagged set or the tagged set of the VLAN. These ports appear in the unit simulation on the left. Darkened ports are not members. Ports with a green X are untagged members.

  • Page 65: Security Button

    5.9 Security Button This button opens the Security page, which provides a summary of the security of each port on each switch, as shown below. The configuration pages for individual ports are accessed by clicking on the associated blue number in the Unit-Port column.

  • Page 66: Duplicate Ip Button

    5.10 Duplicate IP Button The Duplicate IP button lights up if a Duplicate IP number has been detected on the system. Clicking the button opens the Duplicate IP Trap Log page, which, if the trap is enabled, displays a record of duplicate IP Addresses detected.

  • Page 67: Chapter 6. Snmp Management

    The Ethernet History Group The Alarm Group The Event Group ASANTE-SWITCH-MIB: Enterprise MIB for management of features specific to the 3524. The MIB file is available at Asanté’s website, http://www.asante.com. 6.2 The SNMP Protocol The SNMP protocol is an industry standard protocol communicating over the User Datagram Protocol, exchanging Protocol Data Units (PDUs).

  • Page 68: Community Name And Security

    6.3 Community Name and Security SNMP v.1 was not designed to be a secure protocol. There is no true password, although the string known as a community string does serve some of the same purposes. SNMP-aware devices, such as this switch, often ship with well-known community strings. For this reason, it is important that you change the default community strings before putting the switch on a network.
  • Page 69 The IP group -- This group contains counters for Internet Protocol Traffic. It contains as a sub- group the IP Net-to-Media table, which tracks MAC-to-IP address mappings The ICMP group -- keeps statistics for Internet Control Protocol datagrams The TCP group -- keeps statistics for the Transmission Control Protocol, including a table of established connections The UDP group -- keeps statistics for the User Datagram Protocol The EGP group -- keeps statistics on the Exterior Gateway Protocol...

  • Page 70: Chapter 7. Switching Concepts

    Chapter 7. Switching Concepts A bridge is a hardware device used to connect multiple networks into one big network. However, when a bridge receives a broadcast from one interface, it will forward the frame to all interfaces and flood the wire, easily overwhelming the network.

  • Page 71: Spanning Tree Protocol

    7.1.3 Port VLAN ID To allow untagged packets to participate in a VLAN, a Port VLAN ID (PVID) must be assigned in the relevant port(s). Each port on the switch has a default PVID of 1 (the default VLAN) and will receive both tagged and untagged frames.

  • Page 72: Full Duplex, Flow Control And Auto-Negotiation

    Forward Delay After a recalculation of the spanning tree, the Forward Delay parameter regulates the delay before each port begins transmitting traffic. If a port begins forwarding traffic too soon (before a new root bridge has been selected), the network can be adversely affected. The default value for Forward Delay is 15 seconds. Note: The above parameters (Hello Time, Maximum Age and Forward Delay) are constrained by the following formula: (Hello Time + 1) <= Maximum Age <= 2 x (Forward Delay –...
  • Page 73 7.3.2 Flow Control With a link operating at a high data rate, a switch may experience occasional limitations in the buffer space used to store Ethernet frames before forwarding them. In this situation, if the sending station continues to send frames, the switch will have no option but to discard the frames. This may quickly lead to unacceptable delays in upper-level protocols.

  • Page 74: Appendix A. Troubleshooting

    Appendix A. Troubleshooting In the unlikely event your switch does not operate properly, follow the troubleshooting tips below. If you still need help, contact Asanté’s technical support. Problem Possible Solutions Power LED is not lit. LED will turn off during system initialization. Check your power connection.

  • Page 75: Appendix B. Features And Specifications

    Appendix B. Features and Specifications The sections below list the features and product specifications for the IntraCore 3524 Gigabit Ethernet switches. B.1 Features The following is a summary of the management features of 3524 Series Gigabit Ethernet Switch: Graphical User Interface: HTML browser-based with password protection for local and remote management Command Line Interface: Menu-driven telnet or in-band (via front panel console port) Front Panel:...
  • Page 76 Capacity: Stack or cluster up to 8 units (208 ports) using any IC 3524 Gigabit module IC35 Modules: 2.19 x 3.63 x 1.19 (56 x 92 x 30 mm), 0.13 lbs (0.06 Kg) Environmental Range: Operating Temperature: 32º to 104º F (0º to 40º C) Relative Humidity: 10% to 90% non-condensing Power:...

  • Page 77: Appendix C. Fcc Compliance And Warranty Statements

    13. Do not attempt to service this product yourself, as opening or removing covers may expose you to dangerous voltage points or other risks. Refer all servicing to service personnel. IntraCare Warranty Statement Products: IntraCore 3524 Series switches: IC 3524, IC 3524-2G, IC 3524-2T IntraCore 3524 modules: IC35-1000T, IC35-1000SX, IC35-GBIC, IC35- 100MMFX, IC35-100SMFX Duration:...
  • Page 78 2. Asanté warrants that Asanté software will not fail to execute its programming instructions, for the period specified above, due to defects in material and workmanship when properly installed and used. If Asanté receives notice of such defects during the warranty period, Asanté will replace software media that does not execute its programming instructions due to such defects.

  • Page 79: Appendix D. Console Port Pin Outs

    Appendix D. Console Port Pin Outs The console port is used to connect with a terminal using a serial modem RS-232C cable (available from Radio Shack’s website, catalog # 26-117). The setting is 9600-N81. The table below lists the pin outs. Pin Number Signal Name...

  • Page 80: Appendix E. Online Warranty Registration

    Appendix E. Online Warranty Registration Before calling Asanté Technical Support, please register your switch online at www.asante.com/support/registration.html. By doing so, you’ll be entitled to special offers, up-to-date information and important product bulletins.

  • Page 81: Appendix F. Bootp Configuration

    Appendix F. BootP Configuration The IntraCore 3524 is shipped with BootP support. If your network contains a BootP server configured with available, valid IP addresses, BootP allows the switch to be configured automatically with an IP address when it is connected to the network and is powered on. Important! BootP configuration works only if switch does not have an IP address assigned to it.
  • Page 82 Loading Software Remotely To set the switch to download its software over the network from a remote server, use the following procedure: Open the Local Bootstrap Configuration Menu by typing b in Configuration Menu. Open the Remote Bootstrap Configuration Menu by typing r in the Local Bootstrap Configuration Menu.
