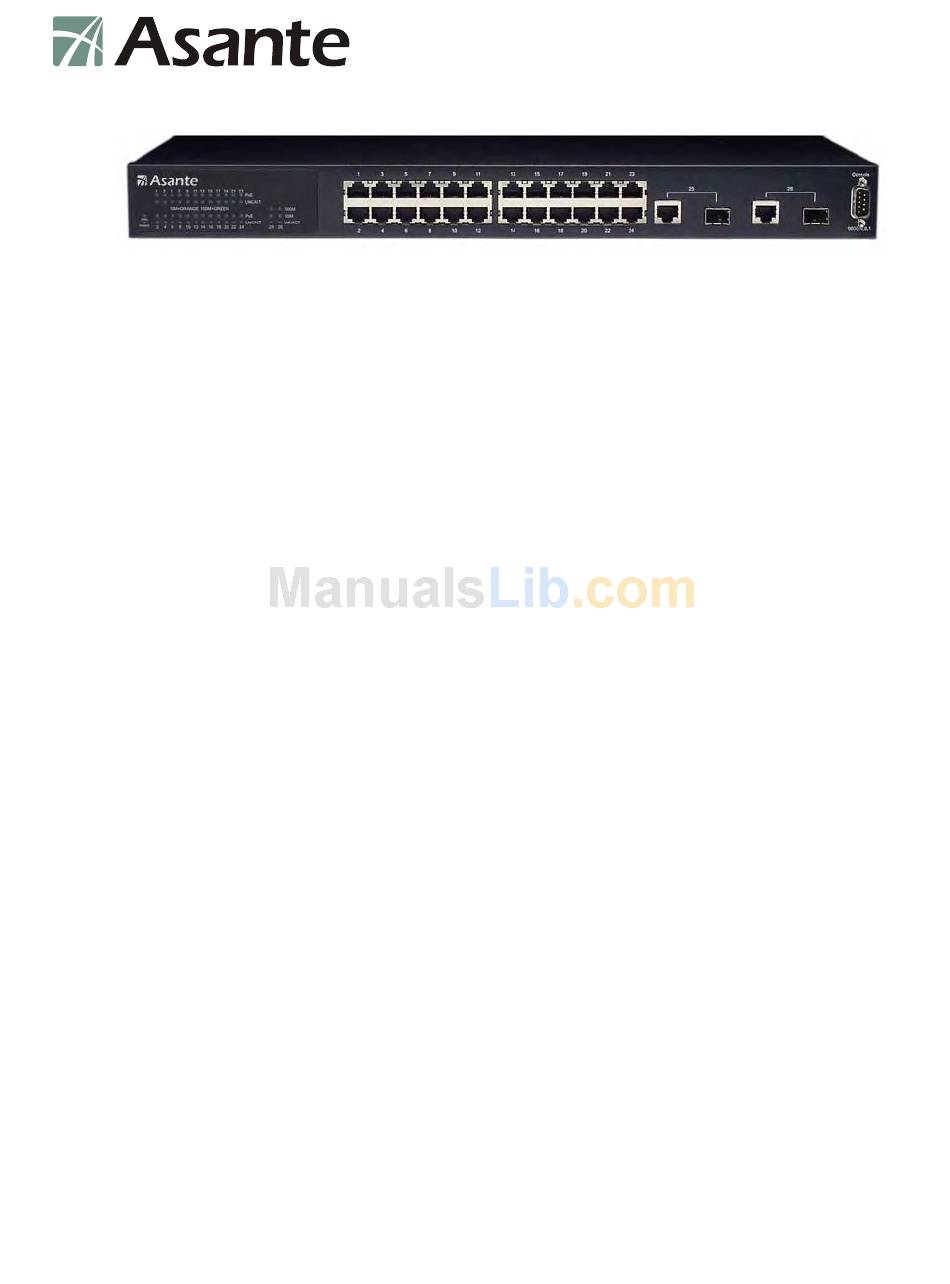

Asante IntraCore IC3624PWR Specifications

24-port 10/100 PoE L2
Building a "next generation" network is easier with the IntraCore
+
IC3624PWR L2 switch. With advanced features and Power over
Ethernet (802.3af) power management, deploying voice over IP (VoIP)
telephones, cameras and wireless access points has never been
simpler.
Power over Ethernet
Compared with conventional 24-port 10/100 Fast Ethernet L2
switches, the IC3624PWR L2
devices.
•
Meets IEEE 802.3af PoE standards
•
170 watts of total power (up to 15.4 watts per 10/100 port)
•
Ideally suited for high-quality VoIP traffic and other time-
sensitive, real-time applications due to its unique support of
+
L2 features: IEEE 802.1p prioritization, DiffServ and IP ToS.
Advanced Features
The switch supports all the services you'll need for your advanced
network.
•
Supports 802.1x authentication per port
•
Up to 255 VLANs with GVRP and GARP
•
4 class of service queues per port
•
IGMP v1 and v2 snooping support
•
6 groups of trunking for link aggregation and resiliency
•
IEEE 802.1d and 802.1s spanning tree support with rapid
reconfiguration and fast link option
The IC3624PWR can be managed via:
•
Web browser
•
Telnet (multiple sessions)
•
Console
•
SNMP v1 and v2c
Gigabit Performance
With a non-blocking switch fabric of 8.8 Gbps, the IC3624PWR delivers
up to 1,488,000 packets per second on each Gigabit port. On ports 25
and 26, choose from 10/100/1000BaseT copper or fiber (using optional
SFP modules, sold separately) connections.
®
IntraCore
+
Switch with Dual Gig
+
delivers power for all compatible
IC3624PWR
