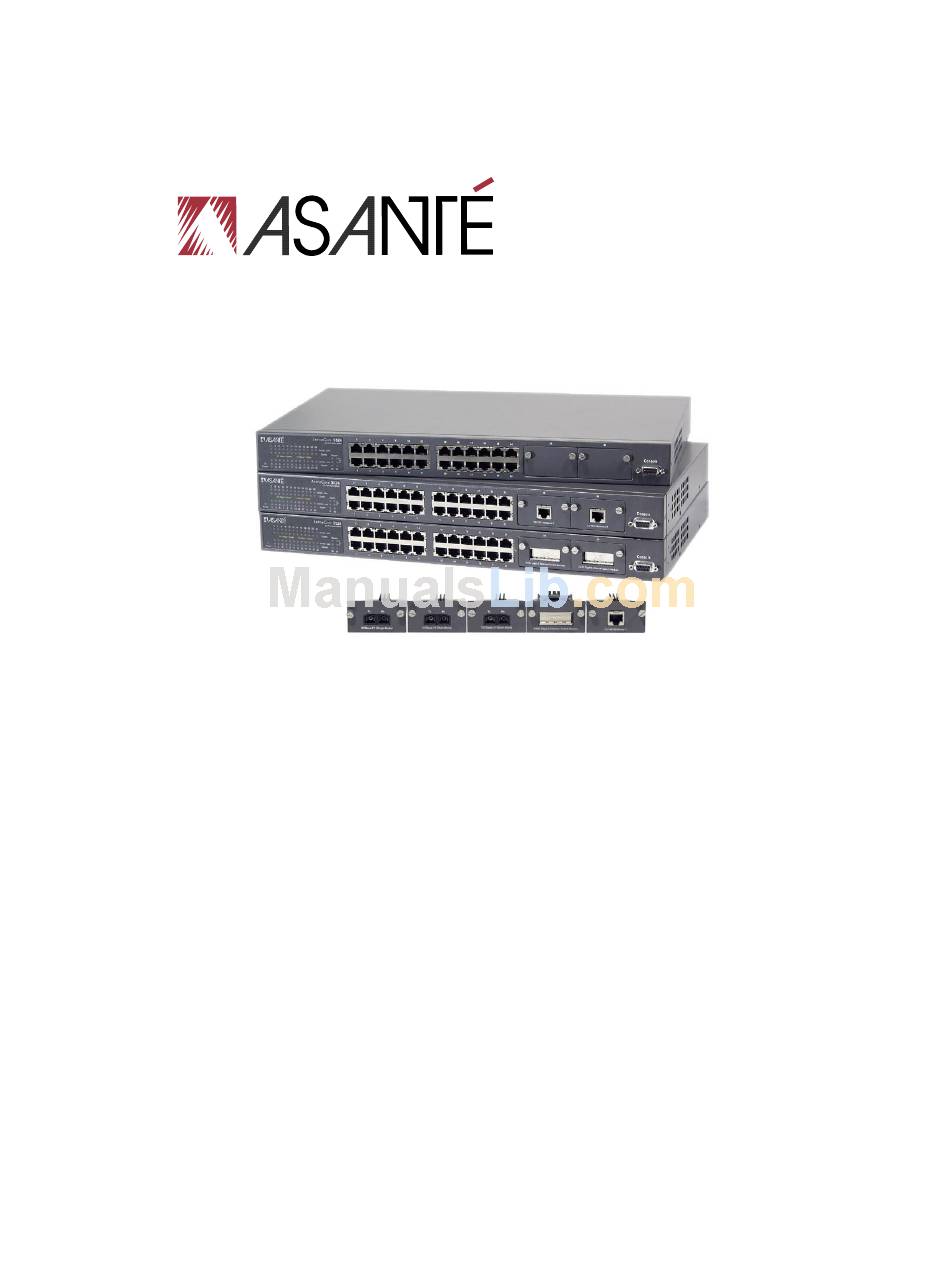

  • Page 1 IntraCore 3524 Series ™ Gigabit Ethernet Switches Getting Started Guide...

  • Page 2: Quick Start Guide

    Quick Start Guide Follow these steps to install your IntraCore switch: Open the box and check the contents. See Chapter 1.1 Package Contents for a complete list of the items included with your IntraCore switch. Install the switch in an equipment or wall rack, or prepare it for desktop placement.

  • Page 3: Table Of Contents

    Table of Contents Quick Start Guide 1. Introduction 1.1 Package Contents 1.2 LEDs 1.3 Front Panel Description 2. Installation and Setup 2.1 Safety Overview 2.2 Recommended Installation Tools 2.3 Power Requirements 2.4 Environmental Requirements 2.5 Cooling and Airflow 2.6 Installation Overview 2.7 Chassis Installation and Placement 2.8 Installing GBIC Interfaces 2.9 Installing Optional Hardware Modules...
  • Page 4 Getting Started Guide...

  • Page 5: Introduction

    • 10/100/1000BaseT • 1000BaseX GBIC • 1000BaseSX • 100BaseMMFX • 100BaseSMFX See the table below for a description of the 3524 series models that are available. Model 10/100 Optional Media Ports Modules IC 3524 Base Two IC35 slots available IC 3524-2T...

  • Page 6: Package Contents

    The system can operate as a stand-alone network or be used in combination with other IntraCore series switches in the backbone. 1.1 Package Contents The following items are included in your package: • Switch • AC power cord • Rack mount brackets with screws •...
  • Page 7 Port # Color Power/ Green System 10/100 Link Solid Green 1-24 (10/100) Solid Amber Duplex Solid Green 1-24 (10/100) Solid Amber Table 1-2—Ports 1-24 have two LEDs each Port # Color Gigabit Solid Green 25,26 (speed) 10/100 Link Solid Green 25,26 Solid Amber Duplex...

  • Page 8: Front Panel Description

    1.3 Front Panel Description From left to right, the front panel contains the following: Power and port LEDs; 24 10/100 ports; 2 optional module slots; and a console port. Front Panel IC 3524 Base The switch is field upgradeable for use with 1000BaseSX, 1000BaseX GBIC or 10/100/1000BaseT modules.

  • Page 9: Installation And Setup

    2 Installation and Setup This chapter explains how to install and connect the switch to your network. To configure the switch for management, refer to the User’s Manual on the CD-ROM. The following guidelines will help you prepare to install the switch in such a way that it has the proper power supply and environment.

  • Page 10: Recommended Installation Tools

    • Do not tamper with the internal components of your switch. This could void your warranty • Examine your work area for potential hazards (I.e. wet floors, ungrounded cables, etc.) and eliminate them before installing your switch For more safety information, please refer to the User’s Manual. 2.2 Recommended Installation Tools You will need the following tools and equip- ment (not included) to install the switch:...

  • Page 11: Cooling And Airflow

    Failure to observe these limits may cause damage to the switch and void the warranty. Avoid direct sunlight, heat sources, or areas with high levels of electromagnetic interference. 2.5 Cooling and Airflow The switch uses internal fans for air cooling. Do not restrict air flow by covering or obstructing air vents on the sides of the switch.

  • Page 12: Equipment Rack Guidelines

    To mount the switch onto an equipment rack: Place the switch on a flat, stable surface. Locate a rack-mounting bracket (supplied) and place it over the mounting holes on one side of the unit. Use the screws (supplied) to se- cure the bracket (with a Phillips screwdriver).

  • Page 13: Installing Gbic Interfaces

    Place the unit on a flat surface with a minimum area of 434.3 mm x 342.9 mm (17.1” x 13.5”) and support capacity of 10 kg (22 lbs ). Make sure there is enough ventilation space between the switch and surrounding walls or objects. 2.8 Installing GBIC Interfaces Instructions for installing, removing, and maintaining GBIC inter- faces are provided in this section.

  • Page 14: Installing Optional Hardware Modules

    2.8.3 GBIC Care and Handling Follow these GBIC maintenance guidelines: • Unnecessary removal and insertion of a GBIC can lead to its premature failure. A GBIC connector has a lifetime of 100 to 500 removals/insertions • GBICs are static-sensitive. To prevent ESD damage, follow your normal board and component handling procedures •...

  • Page 15: Connecting Power

    2.10 Connecting Power Use the following procedure to connect power to the switch: Important! Carefully review the power requirements (Chapter 2.3) before connecting power to the unit. Plug one end of the supplied power cord into the power con- nector on the back of the unit. Plug the other end into a grounded AC outlet.
  • Page 16 Note: There is no uplink port on this switch. All 10/100 ports on this switch are auto-sensing MDI/MDI-X. This advanced feature means that the 10/100 ports will automatically determine whether the de- vice at the other end of the link is a hub, switch or workstation, and adjust its signals accordingly.

  • Page 17: Gigabit Ethernet Ports Cabling Procedures

    2.11.2 Gigabit Ethernet Ports Cabling Procedures Cabling requirements for the Gigabit Ethernet modules depend on the type of GBIC interface that has been installed. Use the following guidelines to determine the cabling requirements for your GBIC: • 1000BaseSX GBIC: Cables with SC-type fiber connectors; 62.5-micron multimode fiber (MMF) media up to 275 meters (902 feet) long, or 50-micron MMF media up to 550 meters (1805 feet) long...
  • Page 18 • All stacked units are managed through connection to the master switch, via console, telnet or web interfaces Note: While the user may manage the stack via console, telnet or web interface, the initial formation of the stack may only be done by connection to a console. •...
  • Page 19 console connection to the first unit. Type k in the Configuration Menu to access the Stacking Management menu, shown be- low. Type t to toggle the switch from “disabled” to “enabled”. Repeat for all remaining units. IntraCore 3524 Configuration Menu <Cmd>...
  • Page 20 After all units have had stacking enabled, connect the console to the first unit (the Master unit). Power cycle the whole stack, or, if the units are to be powered up separately, power the Master last. Go to the Master’s Stack Management menu and type s to be- gin the automatic formation of the stack.

  • Page 21: Appendix A Troubleshooting

    Appendix A Troubleshooting In the unlikely event your network does not operate properly, follow the troubleshooting tips below: CHECK YOUR POWER CONNECTION. Is the Power LED on? If not, plug the power cord into another known working AC out- let. CHECK YOUR NETWORK CABLES.
  • Page 22 Getting Started Guide...

  • Page 23: Appendix B Safety And Regulatory Com- Pliance

    Appendix B Safety and Regulatory Com- pliance FCC Compliance Statement This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commer- cial environment.
  • Page 24 Getting Started Guide...

  • Page 25: Appendix C Features And Specifications

    Appendix C Features and Specifications The IntraCore 3524 Series is Asanté’s most powerful, flexible work- group switch. See the User’s Manual for detailed specifications. Features • Two IC35 option slots for configuring Gigabit Ethernet (copper of fiber) or Fast Ethernet (fiber) ports •...
  • Page 26 Getting Started Guide...

  • Page 27: Appendix D Serial Port Pin Outs

    Appendix D Serial Port Pin Outs The console port is used to connect with a terminal using a DB-9 female connector. The setting is 9600-N81. See the table below for a list of pin outs. Pin Number Signal Asanté IntraCore 3524 Name Carrier Detect Receive Data...
  • Page 28 Getting Started Guide...

  • Page 29: Appendix E Warranty And Support

    Appendix E Warranty and Support ™ The IntraCore switch is covered by Asanté’s 3-year IntraCare product warranty and advanced technical support. An additional 2 ™ year warranty is available through AsantéCare . See the User’s Manual for more detailed information. If your switch is still not operating properly, contact Asanté...
  • Page 30 Getting Started Guide...
  • Page 31 Asanté IntraCore 3524...
  • Page 32 IntraCore 3524 Series Gigabit Ethernet Switches Getting Started Guide Asanté Technologies, Inc. 821 Fox Lane San Jose, CA 95131 ALES 800-662-9686 Home/Office Solutions 800-303-9121 Enterprise Solutions 408-435-8388 ECHNICAL UPPORT 801-566-8991 Worldwide 801-566-3787 FAX www.asante.com support@asante.com Copyright © 2001 Asanté Technologies, Inc. Asanté is a registered trademark of Asanté Technologies, Inc. The Asanté...
