Valcom V-1090 Flexhorn Instruction Manual

INTRODUCTION

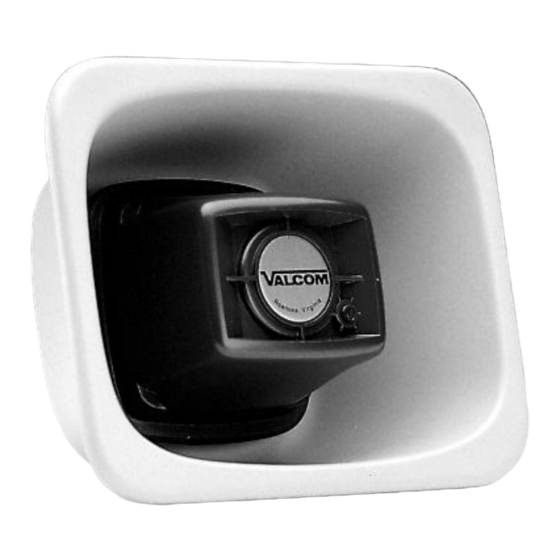

The Valcom V-1090 Flexhorn is a 45 Ohm
Talkback Horn designed to be used with Valcom
"handsfree" talkback control units. This horn is
weather proof and can be used indoors or outside
in environments ranging from -20 to +55 °C.
Model V-1090-GY
Model V-1090-BG
Model V-1090-W

CONNECTIONS

White - Tip/A
Black - Ring/B

DIMENSIONS/WEIGHT

6.8"H x 8.3"W x 3.3"D
(17.3cm H x 21.1cm W x 8.4cmD)
2 lbs. (.91 kg)

MOUNTING

FLUSH MOUNT
Using the template packaged with the speaker,
draw the speaker outline on the wall to be cut.
Make appropriate wiring connections and test the
speaker for operation. Using appropriate
mounting screws (not furnished) drill and mount
the flange as shown.
UNIVERSAL BRACKET
Loosen or separate the universal bracket leaves
by loosening or removing the handle and
hardware. Using the back leaf as a template,
mark the wall through the mounting holes, drill
and mount to the wall using appropriate screws
(not furnished) or mount directly to a junction box.
Mount the T-bracket to the back of the horn as
shown using the (2) ½" screws provided.
"C" CLAMP FOR "I" BEAM MOUNTING
A "C" clamp is provided with the horns to allow
mounting to a beam. Place the bolt through the
hole in the bottom of the base to secure the "C"
clamp to the beam. It is suggested that the horn
be mounted to the underside of the "I" beam to
V-1090 FLEXHORN
45 OHM TALKBACK HORN
Gray
Beige
White
provide the maximum of positioning adjustments.
Mount "C" clamp with (2) 1/2" screws provided.

TECHNICAL ASSISTANCE

When trouble is reported, verify the unit is properly
connected and there are no broken connections
leading to this unit. Ascertain volume control is
turned up.
Assistance in troubleshooting is available from the
factory. When calling, you should have a VOM
and a test set and call from the job site. Call
(540) 563-200 and press 1 for Technical Support,
or visit our website at http://www.valcom.com.
Valcom equipment is not field repairable. Valcom,
Inc. maintains service facilities in Roanoke, VA.
Should repairs be necessary, attach a tag to the
unit clearly stating company name, address,
phone number, contact person, and the nature of
the problem. Send the unit to:
Repair and Return Dept.
5614 Hollins Road
Roanoke, VA 24019-5056
1
Issue 4
Valcom, Inc.
947790
