FEATURES:
WEATHER-PROOF
ALL STAINLESS STEEL HARDWARE
FLEXIBLE MOUNTING: RECESSED & SURFACE
MOUNTING BRACKET INCLUDED
FACEPLATE AND VANDAL RESISTANT
MOUNTING BOX AVAILABLE SEPARATELY
DESCRIPTION:

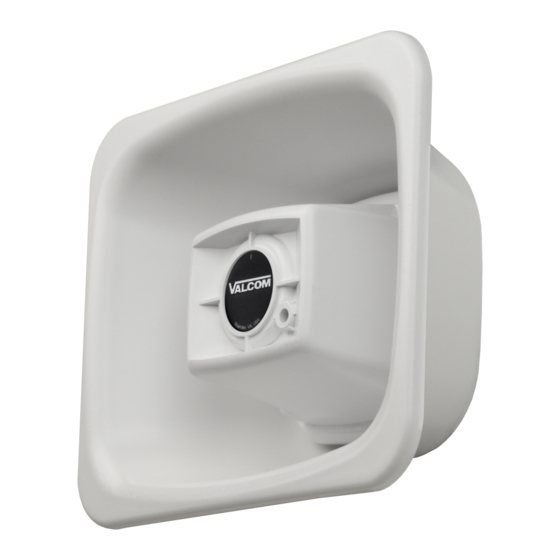

The Flexhorn is a talkback horn speaker. The horn is weather proof and can be used indoors or outdoors in
environments ranging from -4 to +131 °F (-20 to +55 °C). The flexhorn may be mounted to walls using the supplied
universal bracket, mounts to steel "I" beams using the supplied "C" clamp or flush mounted in a wall.
SPEAKER
3.5" (8.9 cm)
FREQUENCY RESPONSE
300 Hz - 11 kHz
VOICE COIL
.75 dia. (1.9 cm), 45 Ohm
DISPERSION ANGLE
120° Horizontal
90° Vertical
5614 Hollins Road
Roanoke, Virginia 24019
E-Mail: support@valcom.com
TALKBACK FLEXHORN
MODEL V-1090
SPECIFICATIONS:
Phone: 540-563-2000
TECHNICAL
SPECIFICATIONS
TM
HOUSING AND FINISH
Constructed with filled polypropylene
Available in White (W), Gray (GY) Beige (BG)
Bracket fabricated with 16 AWG CRS and finished with
Black weather resistant E coat.
All hardware is stainless steel.
ENVIRONMENT
Temperature: -4 to +131 °F (-20 to +55 °C)
Humidity: 0 to 85% Non-Precipitating
DIMENSIONS AND WEIGHT
6.8" (17.3 cm) H x 8.3" (21.1 cm) W x 3.3" (8.4 cm) D
2.75 lbs (1.25 kg)
ACCESSORY PRODUCTS
V-9805 Vandal Resistant Mounting Box and Faceplate
V-9806 Faceplate
Fax: 540-362-9800
www.valcom.com
