2.3.4 Power supply cable

A cable, included in the package shall be used for power supply connection.
The wires are marked as follows:
Cable : 1 wire
Ame : tinned copper 24x0.2 mm
Section : 0.75 mm
Connector Molex Micro-Fit 3.0
Side view
-
+
- +
Wavecom WMO2 Modem
GUIDE
2
Cables stripped over 200 mm,
protected by their own sheath
T M

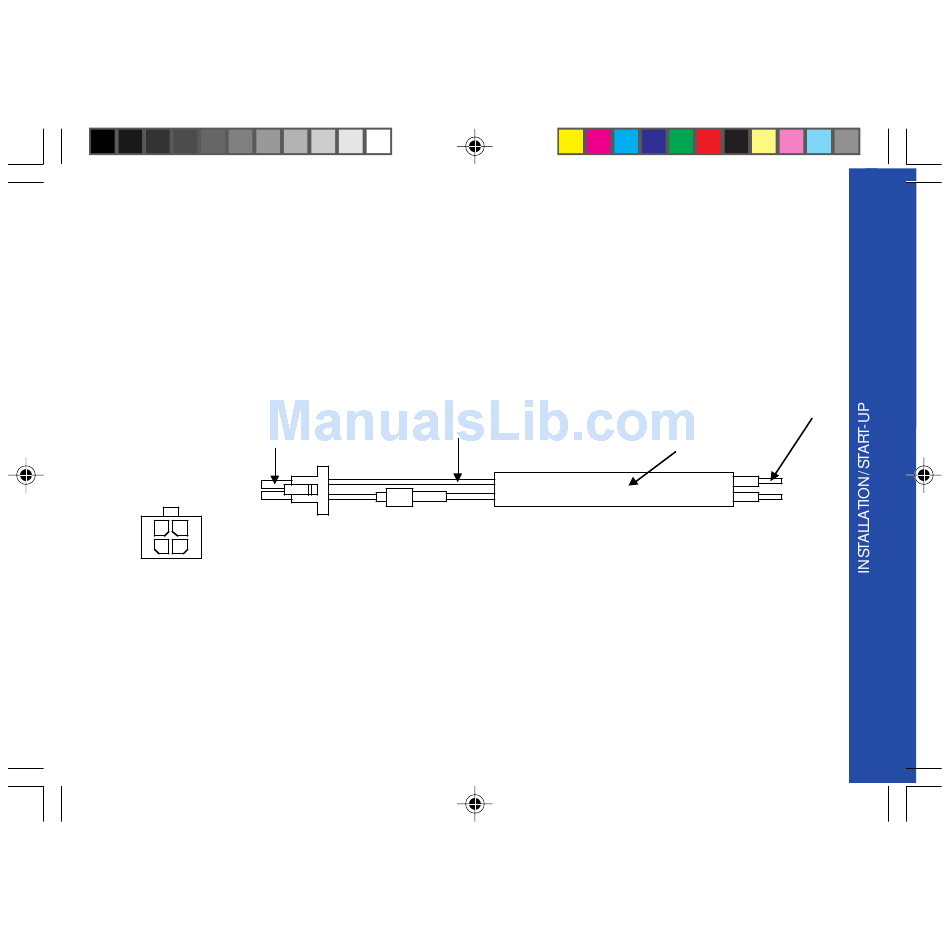

Figure 3
Power supply cable
8
Stripped wire, tinned over 5 mm
Standard cable sheath
5
