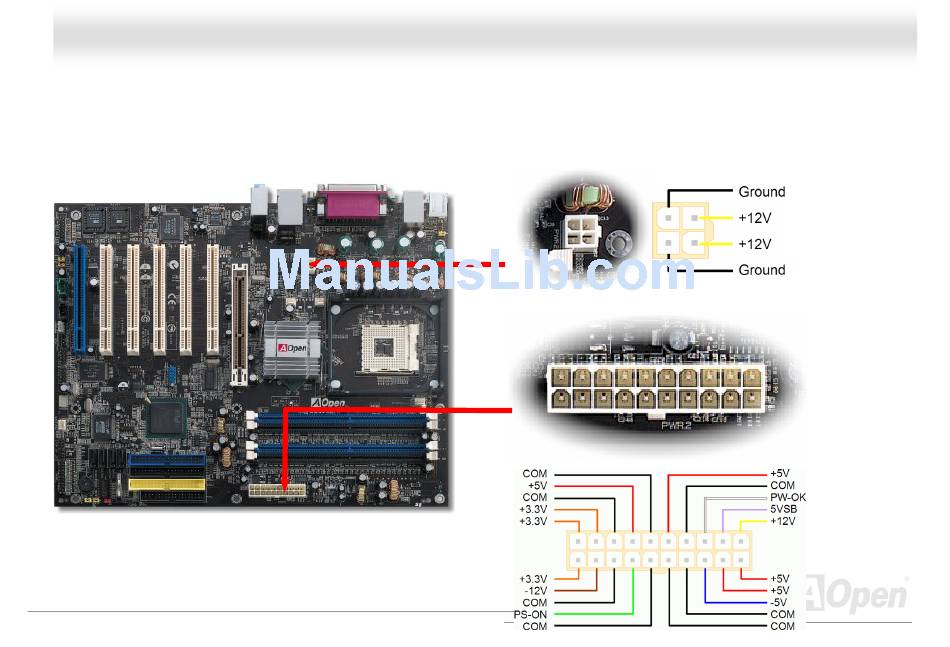

This motherboard comes with a 20-pin and 4-pin ATX power connector. Make sure you plug in the right direction. We strongly
recommend you to connect the 4-pin 12V ATX connector before connecting the 20-pin ATX power connector and use standard
power supply specially designed for Pentium 4 system.
n
e
c
t
o
r
n
e
c
t
o
r
4-Pin 12V ATX Power Connector
20-Pin Power Connector
