AOpen AX4PE Max Easy Installation Manual

AOpen AX4PE Max Easy Installation Manual

Hide thumbs Also See for AX4PE Max:
1
2
3
4
5
6
7
8
Table of Contents

Advertisement

Quick Links

Download this manual

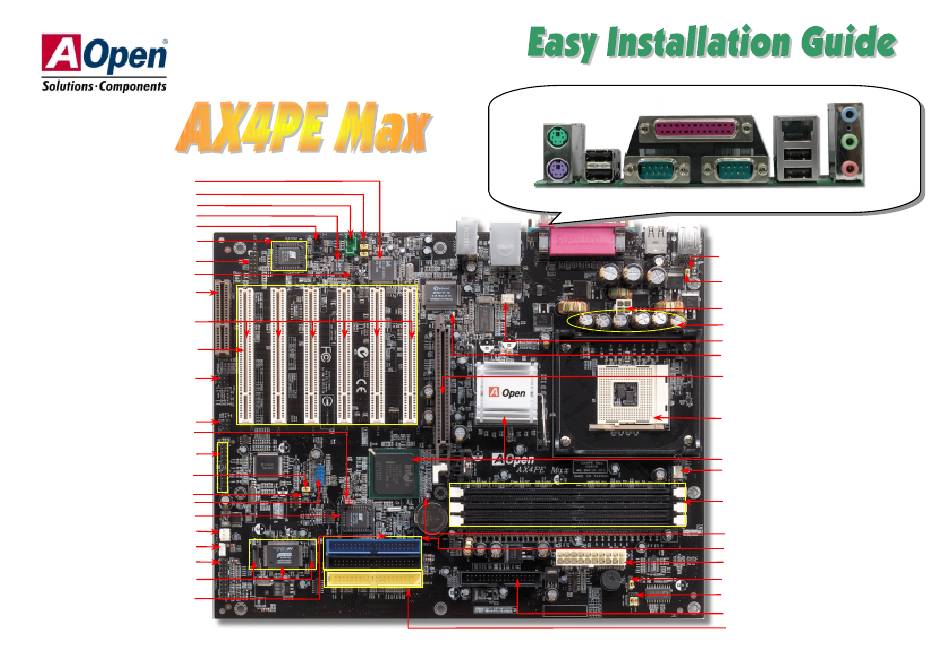

RealTek RTL8100BL
Front Audio Connector
AUX-IN Connector
Onboard AC'97 CODEC
CD-IN Connector
Die-Hard BIOS (BIOS 2)
(User Upgrade Optional)
JST-MIDI
S/PDIF Connector
CNR Expansion Slot
32-bit PCI Expansion Slot x6
(PCI 6 supports slave mode PCI
card only)
IrDA Connector
Dr. LED Connector
JP14 CMOS Clear Jumper
IEEE 1394 Connectors
(Hot Plug-In on headers is not allowed)
JP30 Die-Hard BIOS
Rescue Jumper
STBY LED
nd
Supports 2
USB (2.0) Connector
Die-Hard BIOS (BIOS 1)
SYSFAN3 Connector
WOL (Wake on LAN) Connector
Front Panel Connector
Serial ATA Controller
Serial ATA Connectors
Chassis Intrusion Connector
AOpen reserves the right to revise all the specifications and information contained in this documentation, which are subject to change without notice.
SPP/EPP/ECP
Parallel Port
PS/2 Mouse
Connector
PS/2 Keyboard
USB Port
COM 1 Port
Connector
(2.0)
RJ45 LAN Jack
Line-In
Speaker Out
MIC-In
USB Port
COM 2 Port
(2.0)
JP28 Keyboard/Mouse Wakeup
Enable/Disable Jumper
Resetable Fuse
4-pin 12V. ATX Power Connector
3300
μ
F Low ESR Capacitors
SYSFAN2 Connector
AGP LED
AGP slot
(For 1.5V AGP card only)
478-pin CPU socket with Voltage and
Frequency Auto-detection that supports
®
®
Intel
Pentium
4 1.4~2.8GHz+ CPU
®
Intel
845PE chipset
CPUFAN1 Connector with H/W
Monitoring Function
184-pin DIMMx3 supports
DDR333/DDR266
(Max. to 2GB)
BOOT LED
ATA33/66/100 IDE Connector x2
ATX Power Connector
JP2 Dr. Voice Output Select Jumper
Dr Voice II (JP15, JP16)
FDD Connector
ATA133 IDE Connector x1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AX4PE Max and is the answer not in the manual?

Questions and answers

Related Manuals for AOpen AX4PE Max

Summary of Contents for AOpen AX4PE Max

  • Page 1 JP2 Dr. Voice Output Select Jumper Serial ATA Connectors Dr Voice II (JP15, JP16) Chassis Intrusion Connector FDD Connector ATA133 IDE Connector x1 AOpen reserves the right to revise all the specifications and information contained in this documentation, which are subject to change without notice.

  • Page 2: Jp14 Clear Cmos

    1. JP14 Clear CMOS You can clear CMOS to restore system default setting. To clear the CMOS, follow the procedure below. 1. Turn off the system and unplug the AC power. Everything you need to boot this 2. Remove ATX power cable from connector PWR2. motherboard is included in this Easy Installation Guide.

  • Page 3: Connecting Front Panel Cable

    3. Installing CPU & System Fan 5. Setting CPU Voltage & Frequency CPU Core Voltage Auto Detectable Plug in the CPU fan cable to the 3-pin CPUFAN1 connector. If you have chassis fan, you This motherboard supports CPU VID function. The CPU core voltage will be automatically can also plug it on SYSFAN2 or SYSFAN3 connector.

  • Page 4: Serial Ata Supported

    This motherboard comes with one BIOS ROM, you may contact our local distributor or reseller to “Serial ATA 1” header as a master disk. for purchasing the extra BIOS ROM. Please visit our website: http://english.aopen.com.tw/ details. BIOS 2 BIOS 1...
  • Page 5 12. Installing Memory Modules 10. S/PDIF (Sony/Philips Digital Interface) Connector S/PDIF (Sony/Philips Digital Interface) is a newest audio transfer file format, which provides Although Intel claims that 845GE Chipsets only support two DIMM sockets (four banks), we overcome this obstacle with special circuit design in order to provide better adaptability for impressive audio quality through optical fiber and allows you to enjoy digital audio instead of different combinations of various RAM modules.
  • Page 6 BIOS Setup, press <Del> during POST (Power On Self Test). upgrading. Choose "Load Setup Defaults" for recommended optimal performance. Download the new version of BIOS package zip file from AOpen official web site. (ex: http://english.aopen.com.tw) Unzip the download BIOS package (ex: WAX4PEM102.ZIP) with WinZip (http://www.winzip.com) in Windows environment.

  • Page 7: Part Number And Serial Number

    IDE cable. The problem should be caused by the Check if the system can IDE cables or HDD itself. reboot successfully. Re-install Windows 95, Windows 98 or Windows NT. AX4PE Max is model name of motherboard; R1.02 is BIOS version...
  • Page 8 Dear Customer, Thanks for choosing AOpen products. To provide the best and fastest service to Test Report: We recommend choosing board/card/device from the our customer is our first priority. However, we receive numerous emails and compatibility test reports for assembling your PC.
