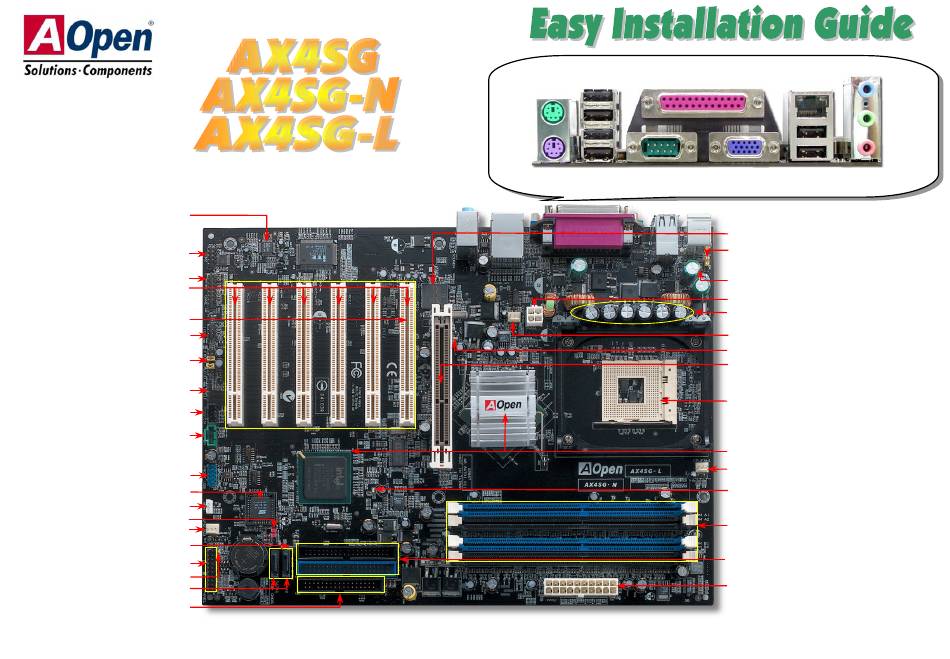

Onboard AC'97 CODEC
COM2 Connector
GAME Port Connector
32-bit PCI Expansion Slot x6
(for AX4SG-N and AX4SG-L, PCI 1
supports slave mode PCI card only)
IrDA Connector
Front Audio Connector
S/PDIF Connector
CD-IN Connector
AUX-IN Connector
USB 2.0 Connector
4Mb Flash ROM BIOS
WOL (Wake on LAN) Connector
JP14 CMOS Clear Jumper
SYSFAN3 Connector
Chassis Intrusion Connector
Front Panel Connector
STBY LED
Serial ATA Port x2
FDD Connector
AOpen reserves the right to revise all the specifications and information contained in this documentation, which are subject to change without notice.
SPP/EPP/ECP
Parallel Port
PS/2 Mouse
Connector
USB 2.0
COM 1 Port
PS/2 Keyboard
Port
Connector
RJ45 LAN Jack
(for AX4SG-N
and AX4SG-L)
Line-In
Speaker Out
MIC-In
USB 2.0
VGA Port
Port
1 GbE LAN (for AX4SG-L)
10/100 Mb LAN (for AX4SG-N)
JP28 Keyboard/Mouse Wakeup
Enable/Disable Jumper
Resetable Fuse
4-pin 12V. ATX Power Connector
3300
μ
F Low ESR Capacitors
SYSFAN2 Connector
AGP Protection LED
8X AGP slot
(For 1.5V AGP card or ADD card)
478-pin CPU socket with Voltage and
Frequency Auto-detection that supports Intel®
Pentium4 1.6~3.06GHz+ CPU (Northwood)
®
Intel
Springdale-G chipsets
CPUFAN1 Connector
BOOT LED
184-pin DIMMx4 supports Dual
Channel mode DDR 266/333/400
(Max to 4GB)
ATA33/66/100 IDE Connector x2
ATX Power Connector
