Everything you need to boot this
motherboard is included in this
Easy Installation Guide. For more
information, a complete
User's Manual can be found in the
Bonus Pack CD Disc. Thanks for
the help of saving our earth.
Motherboard x1
40-wire IDE Cable x1
Floppy Disk Drive Cable x1
80-wire IDE Cable x1
Chassis I/O Bracket x1
RIMM Terminator (C-RIMM) x2
Bonus Pack CD Disk x1
NORTON AntiVirus CD x1
AX4T EIG x1
PART NO: 49.89F01.004 DOC. NO: AX4T-EG-E0105B

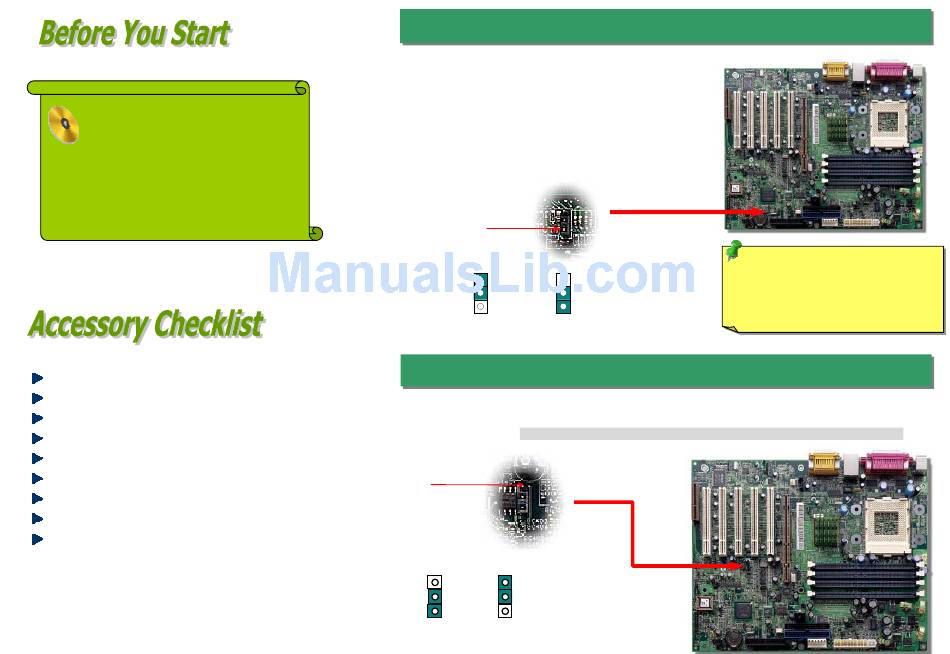

You can clear CMOS to restore system default setting. To
clear the CMOS, follow the procedure below.
1. Turn off the system and unplug the AC power.
2. Remove ATX power cable from connector PWR2.
3. Locate JP14 and short pins 2-3 for a few seconds.
4. Return JP14 to its normal setting by shorting pins 1 & pin2.
Online
5. Connect ATX power cable back to connector PWR2.
The CNR interface provides four solutions for users: audio, modem, LAN and Home LAN. Hence, if you
desire to use the LAN solution of CNR, you should power off system and short pin 1 & pin 2 of JP17 by
jumper cap, then run BIOS setup program > Integrated Peripherals > Onboard/CNR LAN Selection to
disable the onboard LAN EPROM.
Pin 1
1
Enable
(Default)

1. JP14 Clear CMOS

Pin 1
1 1
Clear CMOS
Normal Operation
(Default)
2. Enable/Disable Onboard LAN
1
Disable
Tip: When should I Clear CMOS?
1. Boot fail because of overclocking...
2. Forget password...
3. Troubleshooting...
