Online Manual
CD-IN Connector
AUX Fan Connector
Front Panel Audio Connector
MODEM-IN Connector
WOM Connector
CNR Expansion Slot
IrDA Connector
JP17 Enable/Disable Onboard LAN
AGP Pro External Power Connector
Dr. LED Connector (Upgrade Optional)
4Mbit Programmable Flash ROM
JP9 FSB Select Jumper
Front Panel Connector
ATA/33/66/100 IDE Connector x2
JP14 CMOS Clear Jumper
nd
Supports 2
USB Connector
JP15 & JP16 USB2/CNR
Select Jumper
FDD Connector
SPP/EPP/ECP Parallel Port
PS/2 Mouse
Connector
PS/2 Keyboard
COM 2 Port
COM 1 Port
Connector
Chassis Fan Connector
RJ45 10/100
MIDI/Game Port
LAN Jack
USB Port
MIC-In
Line-In
Speaker Out
Resettale Fuse
32-bit PCI Expansion Slot x5
AGP 4x/Pro Expansion Slot
423-pin CPU socket with Voltage and
Frequency Auto-detection that supports
®
®
Intel
Pentium
4 1.30~1.50GHz+ CPU
CPU Fan Connector (2-pin w/o H/W
Monitoring Function)
184-pin RIMM Socket x4 supports
PC-600/800 RDRAM maximum up to
2GB
®
Intel
850 chipset with MCH, ICH2
and FWH that supports LAN, Ultra
ATA/100, RDRAM Solution
Low ESR Capacitors
24-pin ATX Power Connector
Extra Power Connector for 5V & 3.3V
Advertisement
Table of Contents
Related Manuals for AOpen AX4T
Summary of Contents for AOpen AX4T

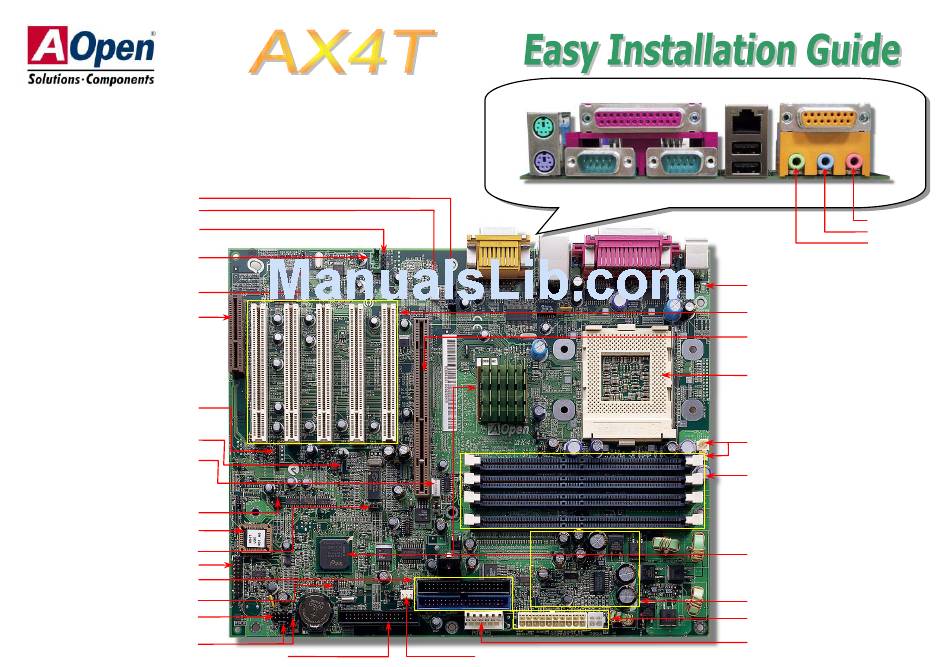

- Page 1 RJ45 10/100 SPP/EPP/ECP Parallel Port PS/2 Mouse MIDI/Game Port LAN Jack Connector PS/2 Keyboard COM 2 Port COM 1 Port USB Port CD-IN Connector Connector AUX Fan Connector MIC-In Front Panel Audio Connector Line-In Speaker Out MODEM-IN Connector Resettale Fuse WOM Connector 32-bit PCI Expansion Slot x5 CNR Expansion Slot...
-
Page 2: Jp14 Clear Cmos
80-wire IDE Cable x1 disable the onboard LAN EPROM. Chassis I/O Bracket x1 RIMM Terminator (C-RIMM) x2 Pin 1 Bonus Pack CD Disk x1 NORTON AntiVirus CD x1 AX4T EIG x1 PART NO: 49.89F01.004 DOC. NO: AX4T-EG-E0105B Enable Disable (Default) -
Page 3: Installing Cpu
3. Installing CPU 5. Setting CPU Voltage & Frequency Setting CPU Core Voltage CPU socket lever Pull up the CPU socket lever and up This motherboard supports CPU VID function. The CPU core voltage will be automatically to 90-degree angle. detected. - Page 4 9. Connecting Front Panel Connector This motherboard has four 184-pin RIMM sockets that allow you to install PC600, PC700 and PC800 RDRAM up to 2GB. AX4T will detect the RDRAM speed SPWR automatically while system is in the process of POST, but it still allows you to select the RDRAM type manually by BIOS setup program.
- Page 5 13. Connecting CD / MODEM Connector 11. Connecting 2 USB Port This motherboard provides 4 USB connectors to connect USB devices such as mouse, The CD-IN connector is used to connect CD Audio MODEM-IN (Green) cable from CDROM or DVD drive to onboard sound. keyboard, modem and printer.
-
Page 6: Bios Upgrade
16. AOpen Bonus Pack CD 18. BIOS Upgrade AOpen Easy Flash is very user-friendly. The BIOS binary file and flash routine are You can install the autorun menu of Bonus CD disc. Choose the utility and driver and combined together and you simply run a single file to complete the flash process. -
Page 7: Part Number And Serial Number
IDE cable. The problem should be caused by the Check if the system can IDE cables or HDD itself. reboot successfully. Re-install Windows 95, Windows 98 or Windows NT. AX4T is model name of motherboard; R1.00 is BIOS version... - Page 8 Dear Customer, Test Report: We recommend to choose board/card/device from the Thanks for choosing AOpen products. To provide the best and fastest service to compatibility test reports for assembling your PC. our customer is our first priority. However, we receive numerous emails and http://www.aopen.com.tw/tech/report/default.htm...
