MODEM-CN Connector
Front Audio Connector
CD-IN Connector
4Mbit Flash ROM BIOS
IrDA Connector
CNR Expansion Slot
32-bit PCI Expansion Slot x5
AGP Expansion Slot
Front Panel Connector
FDD Connector
JP14 CMOS Clear Jumper
nd
Supports 2
USB Connector
FAN2 Connector
Chassis Intrusion Detector
PS/2 Mouse
RJ-45 LAN Connector
SPP/EPP/ECP
Parallel Port
Connector
(AX4T II-533N only)
PS/2 Keyboard
USB Port
COM 1 Connector
Connector
MIDI/Game Port
COM2 Connector
Resetable Fuse
4-pin 12V ATX Power Connector
JP28 USB and PS/2
Keyboard/Mouse Wakeup
CPU Fan Connector
478-pin CPU socket with
Voltage and Frequency
Auto-detection that supports
®
®
Intel
Pentium
4
1.4GHz~2.4GHz CPU
Low ESR Capacitors
184-pin RIMM Socket x4
supports PC-600/800/1066
RDRAM maximum up to 2GB
®
Intel
850E chipset with MCH, ICH2
and FWH that supports LAN, Ultra
ATA/100, RDRAM Solution
FAN3 Connector
ATX Power Connector
ATA33/66/100 IDE Connector x2
MIC-In
Line-In
Speaker-Out
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for AOpen AX4T 2-533
Summary of Contents for AOpen AX4T 2-533

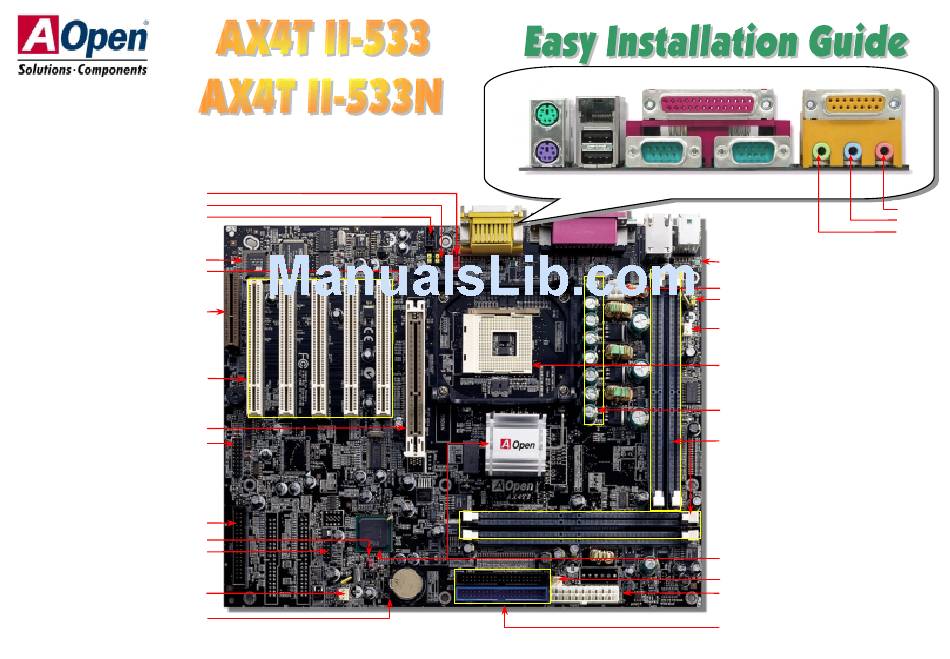

- Page 1 PS/2 Mouse RJ-45 LAN Connector SPP/EPP/ECP MIDI/Game Port Parallel Port Connector (AX4T II-533N only) PS/2 Keyboard USB Port COM 1 Connector COM2 Connector Connector MODEM-CN Connector Front Audio Connector MIC-In CD-IN Connector Line-In Speaker-Out 4Mbit Flash ROM BIOS Resetable Fuse IrDA Connector 4-pin 12V ATX Power Connector JP28 USB and PS/2...
-
Page 2: Jp14 Clear Cmos
1. JP14 Clear CMOS You can clear CMOS to restore system default setting. To clear the CMOS, follow the procedure below. 1. Turn off the system and unplug the AC power. 2. Remove ATX power cable from connector PWR2. Everything you need to boot this motherboard is included in this 3. - Page 3 3. JP28 Keyboard/Mouse Wakeup Select Jumper 5. Setting CPU Voltage & Frequency This motherboard provides keyboard / mouse wake-up function. You can use JP28 to Setting CPU Core Voltage enable or disable this function, which could resume your system from suspend mode with This motherboard supports CPU VID function.
-
Page 4: Irda Connector
6. IrDA Connector 8. Connecting RIMM Sockets The IrDA connector can be configured to support wireless infrared module. This This motherboard has four 184-pin RIMM sockets that allow you to install PC600, PC800 connector supports HPSIR (115.2Kbps, 2 meters) and ASK-IR (56Kbps). and PC1066 RDRAM up to 2GB. - Page 5 10. Connecting ATX Power Connector 12. Intel® PRO/100 Network Connection(For AX4T II-533N) The ATX power supply uses a 20-pin connector shown below. Make sure you plug in This motherboard has a fast Ethernet controller on chip. On the strength of LAN chip onboard, it the right direction.
- Page 6 STRONGLY RECOMMMANDED to close all the applications before you start the model name. upgrading. Download the new version of BIOS package file from AOpen official web site. (ex: http://www.aopen.com) Unzip the download BIOS package (ex: WAX4T2533102.ZIP) with WinZip (http://www.winzip.com) in Windows environment.
-
Page 7: Part Number And Serial Number
It is very possible that your keyboard press Del to see if the is defective. system reboots. AX4T II-533N R1.00 Mar. 01. 2002 AOpen Inc. Award Plug and Play BIOS Extension v1.0A During system rebooting, press Del to enter BIOS Setup. Choose “Load Setup Default". - Page 8 Dear Customer, Test Report: We recommend you to choose board/card/device from the Thanks for choosing AOpen products. To provide the best and fastest service to compatibility test reports for assembling your PC. our customer is our first priority. However, we receive numerous emails and http://www.aopen.com/tech/report/default.htm...
