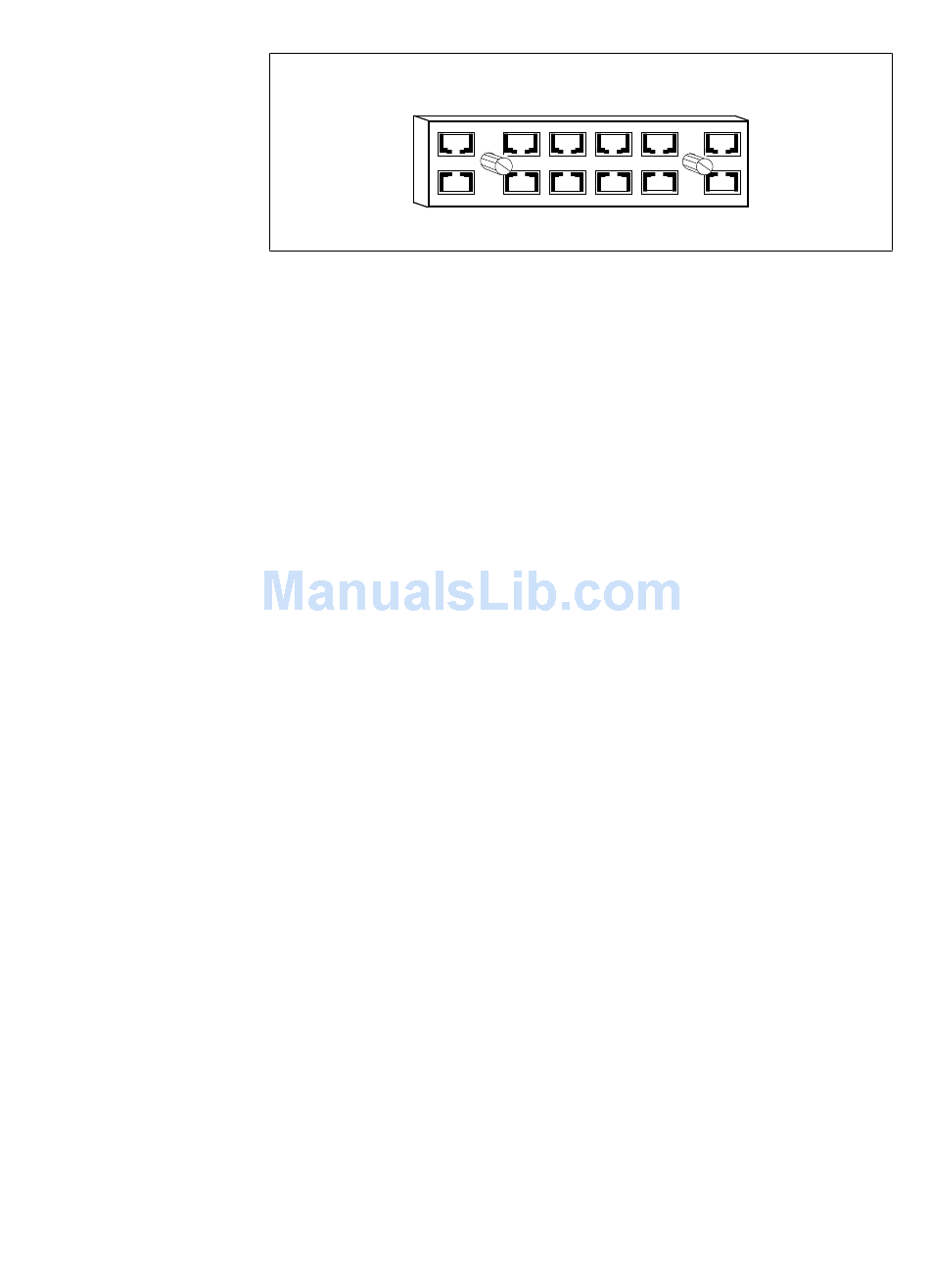

Figure 13: Harmonica Adapter
for AT-3624TS
50-Pin Telco-to-Punch-Down Block (For Model AT-3624TS).
Connecting the AT-3624TS directly to a punch-down block may be
accomplished with a Telco-connector-to-25-pair-UTP-cable bundle. Refer
to Table 5 for the direct wiring pin-out. Adapter patch panels have a built
in punch-down block for maximum flexibility. Patch panels allow for easy
configuration and reconfiguration of house wiring requirements.
