Port Configurations

Network Ports

AUI Port

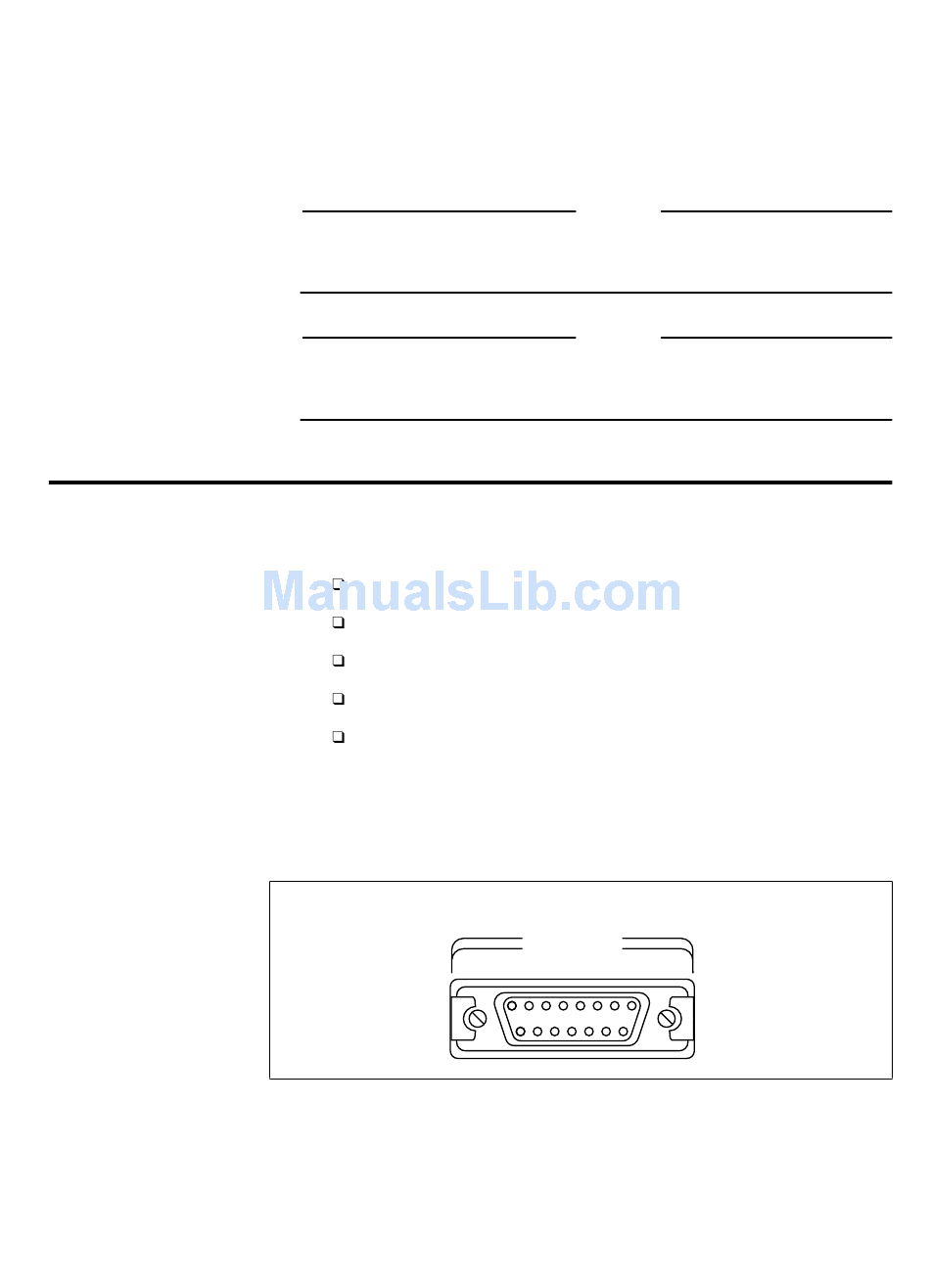

Figure 8: AUI Network Port

The AT-3600 Series slave module is now active in the chassis as a
component of a network concentrator.
For confirmation, you can obtain hub and port status information via
network management. To enable management from a PC monitor, the PC
must be connected to the Master unit through the Master's RS232 port.
Upon initial power-up, the LEDs (including the red Fault lights) on all
units connected through a chassis backplane will activate. This is a normal
cycling function and is not any indication of a problem.
If you need to reinstall or update the network management software in a
hub module, refer to the CentreCOM 3600 Series and AT-S4 Firmware
Module Network Operations Guide.
AT-3600 Series slave models feature a variety of port counts and support a
variety of media, including:
Fiber optic (FOIRL, 10BASE-FL), using ST connectors.
Fiber optic (FOIRL, 10BASE-FL), using SMA connectors.
Thinnet (10BASE2), using BNC connectors.
UTP/STP (10BASE-T), using Telco RJ21 or RJ45 connectors.
Thick Ethernet (10BASE5), using the AUI connector.
Manageable AT-3600 Series slave modules have a fixed AUI port,
illustrated in Figure 8. The AUI port is located on the back panels of the
AT-3624TS and AT-3624TRS modules and on the front panels of hub
modules with management capability.
CentreCOM AT-3624TS/AT-3624TRS Repeaters
Attention
Attention
AUI PORT
