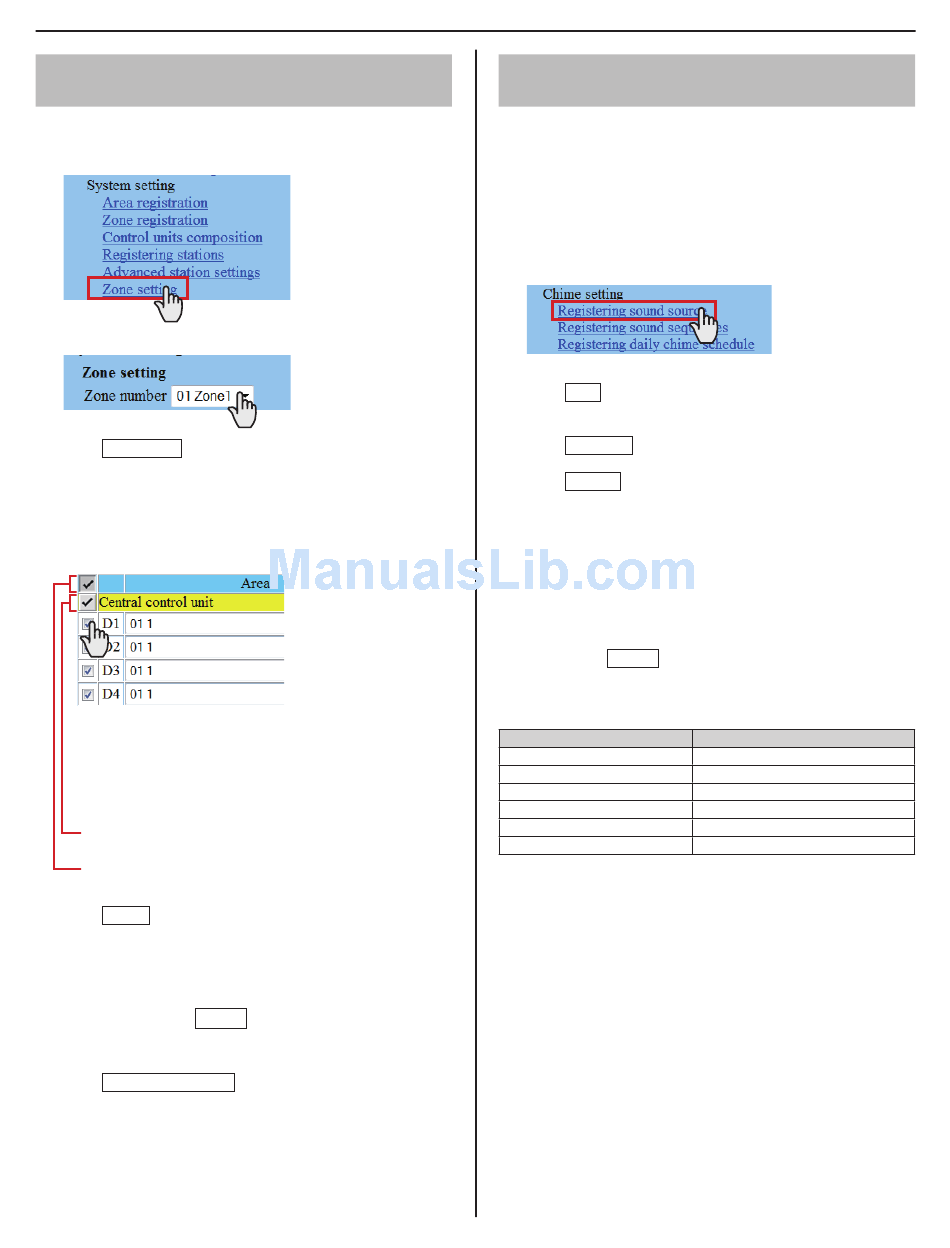

Registering stations and PA outputs to zones
[System setting – Zone setting]
Assign stations and PA outputs to the registered zones.
1
Click
Zone setting in the table of contents.
2
Select a zone from the pull-down menu.
3
Click
to display all the stations registered
Reference
to the system.
Another window opens and the registered stations are
displayed in the list.
4
Check to select the target stations.
Select stations in the following ways.
Select stations by checking one by one.
All stations of the same type can be selected by
clicking the corresponding button under [Select all by
type].
By clicking the button for the control unit, all the
stations connected to it are checked or canceled.
By clicking the button on the top of the list, all the
stations are checked or canceled.
5
Click
after you have fi nished selecting the
Close
stations.
In the previous window, the selection results are displayed
in the list.
When canceling a registered station, check the station in
*
the list, then click Delete .
*
Register PA outputs in the same way as the stations.
6
Click
Temporarily stored
results temporarily.
If you wish to cancel the setting results you have made,
*
click a title in the table of contents or "Refresh" in the
web browser menu.
to save the current setting
Registering sound fi les for chime
[Chime setting – Registering sound source]
Register sound data as the source of each chime. Copy MP3-
format sound fi les onto the PC in advance. (Only MP3 fi les can
be registered in the system.)
* Up to 3MB of the total amount of fi les can be registered.
* Use sound fi les compliant with the specifi cations below.
1
Click
Registering sound source in the table of
contents.
2
Click
.
Add
Another window opens.
3
Click
and select a sound fi le on the PC.
Browse...
4
Click
to save.
Upload
When uploading the fi le is completed successfully, the
current window closes. In the previous window, the
selection result is displayed in the list.
If a small-size sound fi le is registered, a fi le size different
*
from the actual one may be displayed.
5
Repeat step
2 to 4 to register more sound fi les.
*
If you wish to delete a sound fi le, check it in the list, and
then click Delete .
Sound fi le specifi cations
Item
File name
File format
Bit rate
Sampling frequency
Channels
Maximum total data size
1
*
: MP3-format sound fi les with tags may not be played with this
system. Before registering an MP3-format sound fi le, delete the tag
from the fi le.
Recommended value
Up to 24 alphanumeric characters
1
MP3*
64 kbps
44.1 kHz
1 ch (monaural)
3MB in total, 2MB/fi le
17
