Front panel indicators

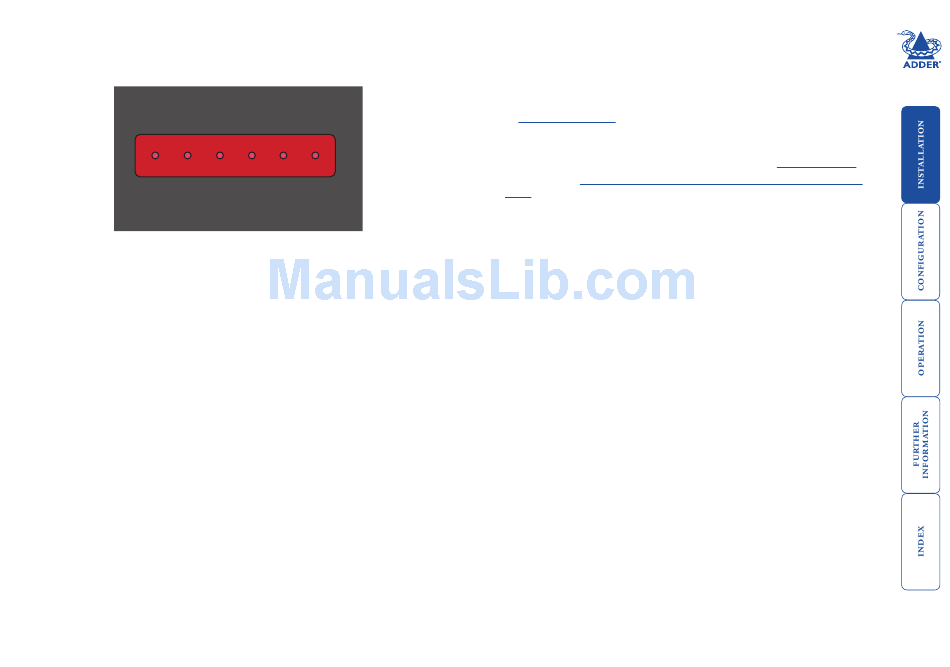

To assist with operational checks and troubleshooting, the front panel provides
the following indicators:
ADM USR
ADM USR
• ADM On when an administrator is logged in. Flashes when an
administrator is accessing the system.
• USR On if there are any connections between channels/receivers. Flashes
when a user is accessing the system.
• UNC Unconfigured RX or TX units are online
• ETH1 On when connected, flashes with network activity
• ETH2 On when connected, flashes with network activity
• PWR On when power is applied
UNC ETH1 ETH2 PWR
UNC ETH1 ETH2 PWR

Installation requirements

• AIM requires that all AdderLink Infinity units that it controls have firmware
version 1.9 or greater.
• When configuring the installation for multicasting (and to improve overall
performance), the network switch(es) being used must support a minimum
of IGMP v2 snooping. For faster performance use switches that support
IGMP v3.
• In order to display video resolutions that use a horizontal video resolution of
2048 pixels, the network switch must have support for
• Please also see Appendix A - Tips for success when networking ALIF
units.
