Installation

Connections

The AIM server unit is supplied fully pre-loaded and permits no local user
interaction. All configuration takes place remotely via the network connections
and as a result only two connections are required: Network and power.

Network connections

The AIM server has two network connections on the rear panel, labelled
and 2. These allow the unit to be connected to internal and external network
connections as required. The external network connection allows admin users
located away from the internal network to be able to login.

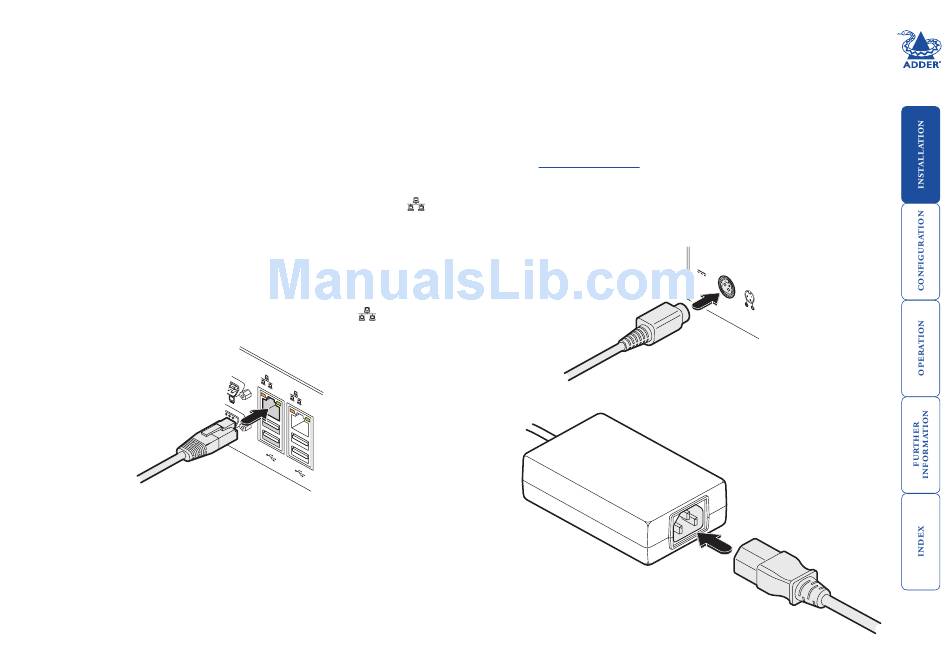

To connect the internal IP network port
1 Run a category 5, 5e or 6 link cable from the appropriate hub or router to
the AIM server unit.
2 Connect the plug of the link cable into the IP port labelled
panel of the AIM server unit.
Category 5, 5e or 6 cable
from LAN / network switch
1 on the rear
C O
M
3
1
2

Power supply connection

Important: Please read and adhere to the electrical safety information given
within the Safety information
unearthed power socket or extension cable.
To connect the power supply
1
1 Attach the output connector of the power supply (country specific power
supplies are available) to the power input socket on the left side of the rear
panel.
2 Connect the main body of the power supply to a nearby earthed mains outlet.
The unit has no power switch so it will
begin its booting process as soon as power
is applied. Allow 3 minutes for the booting
process to complete.
