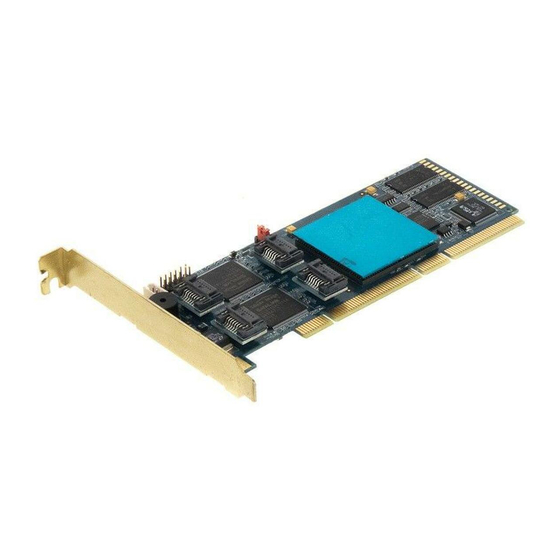

- Page 1 ICP RAID Controller GDT8546RZ and GDT8586RZ Four-port Low Profile Serial ATA RAID Controller Hardware Installation and User’s Guide, Version 1.2 November 2003 Preliminary...
- Page 2 IMPORTANT NOTICE - READ BEFORE MAKING USE OF THE INFORMATION CONTAINED HEREIN This information is provided “as is.” Information in this document is provided solely to enable use of ICP products. Except as provided in ICP vortex’s Terms and Conditions of sale ICP vortex and/or its suppliers assume no liability whatsoever, and ICP vortex and/or its suppliers disclaim any express or implied warranty, relating to this information including liability or warranties relating to fitness for a particular purpose, merchantability, satisfactory quality or infringement of any patent, copyright or other intellectual property right.
-
Page 3: Table Of Contents
Contents Getting Started Using the User Documentation Set ....................5 1.1.1 Document Formats ...................... 6 About This Guide...........................6 Customer Support Contact Information ..................6 Regulatory and Certification Information ..................7 1.4.1 Product Regulatory Compliance .................. 7 1.4.2 Product Safety Compliance ..................7 1.4.3 Product EMC Compliance ...................7 1.4.4... - Page 4 Controller jumper Settings GDT8586RZ..................15 LED Description GDT8546RZ ....................16 LED Beschreibungen GDT8546RZ .................... 17 Beep Sequences ........................18 Hardware Architecture ........................ 19 Environmental Specifications ..................... 20 RAID Controller Drive Maximum Limitations (GDT8546RZ/GDT8586RZ) ......... 23 Hardware Installation and User’s Guide...
-
Page 5: Getting Started
Getting Started Getting Started Intended Audience This documentation is intended for users who are experienced in configuring computer systems with new add-in cards or have had previous experience with ICP RAID Controllers. Read and adhere to all warnings, cautions, and notices in this guide and the other documents in the user documentation set supplied with this product. -
Page 6: Document Formats
Getting Started the software and firmware For further information refer to the Optional Features section of the appropriate hardware guide since not all features are applicable to all ICP RAID controllers. Clustering Guide The ICP RAID Controller Clustering Guide, or Clustering Guide, describes how to set up clustering configurations using ICP RAID Controllers and ICP RAID controller software. -
Page 7: Regulatory And Certification Information
This controller is intended for use in UL Listed computers or equivalent, that have Note: instructions detailing installation. 1.4.1 Product Regulatory Compliance The GDT8546RZ and GDT8586RZ RAID controllers, when correctly integrated per this guide, complie with the following safety and electromagnetic compatibility (EMC) regulations. 1.4.2 Product Safety Compliance •... - Page 8 We, ICP vortex Computersysteme GmbH, declare under our sole responsibility that the products: ICP vortex GDT8546RZ and GDT8586RZ arein conformity with all applicable essential requirements necessary for CE marking, following the provisions of the European Council Directive 89/336/EEC (EMC Directive) and Council Directive 73/23/EEC (Safety/Low Voltage Directive).
-
Page 9: Warnings And Cautions
Getting Started Suomi Tämä tuote noudattaa EU-direktiivin 89/336/EEC & 73/23/EEC määräyksiä. Français Ce produit est conforme aux exigences de la Directive Européenne 89/336/EEC & 73/ 23/EEC. Deutsch Dieses Produkt entspricht den Bestimmungen der Europäischen Richtlinie 89/336/EEC & 73/23/EEC. Icelandic Þessi vara stenst reglugerð Evrópska Efnahags Bandalagsins númer 89/336/EEC & 73/ 23/EEC. -
Page 10: Hardware Installation
Hardware Installation Hardware Installation This chapter provides information on installing the ICP RAID controller, programming the Flash memory, setting jumpers, and using the LEDs and alarms to diagnose the controller. Installation Procedures Warning: Shock hazards may be present inside the computer in which this controller is being installed. -
Page 11: Icp Raid Controller Component Layout Gdt8546Rz
Hardware Installation Figure 2-1. ICP RAID Controller Component Layout GDT8546RZ Hardware Installation and User’s Guide... -
Page 12: Installing The Icp Raid Controller
Figure 2-2. ICP RAID Controller Layout GDT8586RZ LEDs on Reverse Side: = On in Recovery Mode LED Connectors for: = Internal Data Transfer green - SUM Activity Sum = Activity on any Port yellow - Activity Port A0 P66 = 66MHz PCI Clock - Activity Port A1 green - Activity Port B0... -
Page 13: Changing Jumper Settings
Table 2-1 (GDT8546RZ) and Table 2-2 (GDT8586RZ). See Figure 2-2 (GDT8586RZ) or Figure 2-4 (GDT8546RZ) for jumper locations and pin numbers, and see Appendix A for a detailed description of jumper J1 / FRU jumper. Hardware Installation and User’s Guide... -
Page 14: Jumper Locations And Pin Numbers (Gdt8546Rz)
Hardware Installation Figure 2-4. Jumper Locations and Pin Numbers (GDT8546RZ) IOP Mode Select (J1) PCI Bus Speed (J4) Recovery Mode (pins 1-2) Force 33 MHz (pins 1-2) Normal Mode (pins 2-3) Auto-negotiate 33 or 66 MHz (pins 2-3) Hardware Installation and User’s Guide... -
Page 15: Controller Jumper Settings Gdt8546Rz
Hardware Installation Table 2-1. Controller Jumper Settings GDT8546RZ Jumper Block Jumper Position Definition IOP is in reset mode with firmware recovery Jumper on pins [1-2] enabled. Jumper on pins [2-3] IOP is in normal run mode. No jumpers IOP is in normal run mode. -
Page 16: Diagnosis Functions
Diagnosis Functions The GDT8546RZ and GDT8586RZ have LED indicators, an 80db audible alarm, and boot-up beep sequences that can help diagnose the controller. 2.2.1 LED Indicators The LEDs on the controller indicate SATA activity, data transfer, power status, PCI bus frequency, and reset mode. -
Page 17: Audible Alarm
Stat = Disk failed (if Auto Hot Plug / Non-Int. Encl. configured) Tabelle 2-4. LED Beschreibungen GDT8546RZ Description A0, A1, B0, B1, C0, C1, Shows activity on SATA port A0 / A1 / B0 / B1 / C0 / C1 / D0 / D1. -
Page 18: Beep Sequences During System Boot
Hardware Installation If the cause of the event is resolved and/or removed, the audible alarm will cease. You can also turn off the audible alarm manually through ICPCON or ICP RAID Navigator. If you use these management tools to silence the alarm, it will only be disabled for the current event and will be ready to sound again at the next event. -
Page 19: Hardware Specifications And Features
Hardware Specifications and Features Hardware Specifications and Features This chapter covers all the hardware specifications associated with the ICP RAID controller and its components. The accompanying Software Guide covers all software features. ICP RAID Controller Hardware Features This section provides a summary of the key features, configuration options and support interface technology supported by the ICP RAID Controller. -
Page 20: Environmental Specifications
Meets Required Conditions Operating Temperature 0° C to +55° C Storage Temperature -40° C to +70° C Form Factor (physical dimensions) Height: 56mm GDT8546RZ Length: 167mm Form Factor (physical dimensions) Height: 73mm GDT8586RZ Length: 209mm Hardware Installation and User’s Guide... -
Page 21: Operating System Support
Hardware Specifications and Features Operating System Support The following operating systems are fully validated and supported: • Microsoft* Windows* XP Professional • Microsoft Windows 2000 Advanced Server, Windows 2003 (Enterprise) Server • Novell* NetWare* 6.0 • SCO* Openserver* 5.0.6a • Red Hat* Linux* 7.3 (2.4 Kernel) •... -
Page 22: Pci Hot Plug
(anything other than the GDT85x6RZ). Unpredictable behavior may include, but is not limited to, data loss or corruption. PCI Hot Plug The GDT8546RZ and GDT8586RZ adapter supports PCI Hot Plug under the following OS’s: • Windows 2000 Advanced Server SP2 •... - Page 23 (or logical drives). Therefore the maximum RAID array drive limitation for the GDT8546RZ and GDT8586RZ controller is the physical drive limit divided by two. Each RAID array drive (up to two) can contain up to a maximum of two host drives. This means that the GDT8546RZ and GDT8586RZ controller has a maximum limitation of four/eigth host drives.
-
Page 24: A Flash Memory Programming
Flash Memory Programming Flash Memory Programming About Firmware Files The firmware image that is stored in the flash memory of the RAID controller includes the controller BIOS and the ICP RAID Console (ICPCON) software. Refer to the Software Guide for more details about ICPCON. The current firmware file is on the RAID Software Suite CD-ROM. -
