Zibro R 617 E Operating Manual

Portable heaters
Hide thumbs Also See for R 617 E:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Manual
3
2
6
5
4
>
1

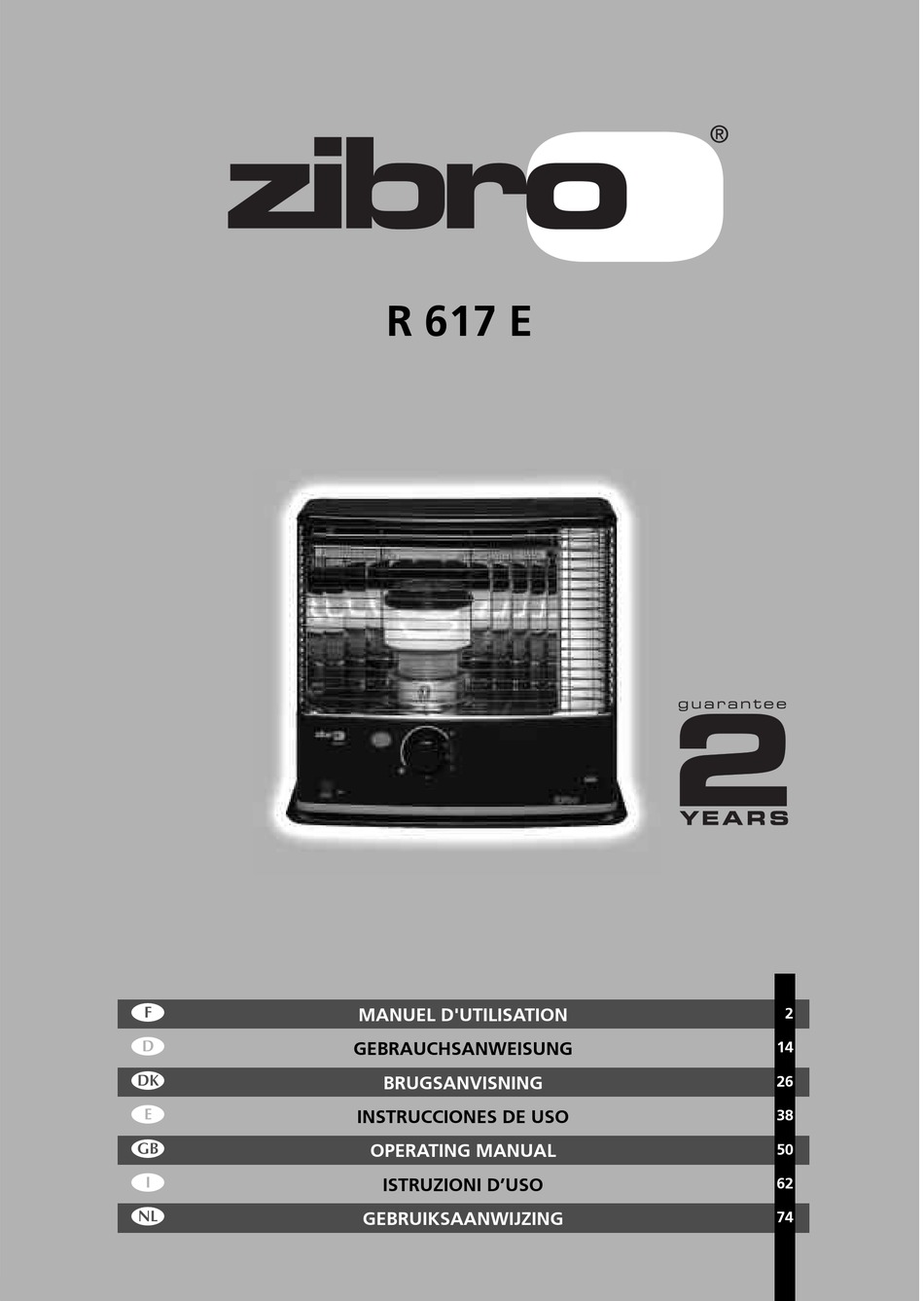

R 617 E
MANUEL D'UTILISATION
GEBRAUCHSANWEISUNG
BRUGSANVISNING
INSTRUCCIONES DE USO
OPERATING MANUAL
ISTRUZIONI D'USO
GEBRUIKSAANWIJZING
2
14
26
38
50
62
74

Advertisement

Table of Contents
loading

Related Manuals for Zibro R 617 E

Summary of Contents for Zibro R 617 E

  • Page 1 R 617 E MANUEL D'UTILISATION GEBRAUCHSANWEISUNG BRUGSANVISNING INSTRUCCIONES DE USO OPERATING MANUAL ISTRUZIONI D’USO > GEBRUIKSAANWIJZING...
  • Page 2 Dear Sir, Madam, Congratulations on your purchase of this Zibro heater, the number one brand amongst portable heaters. You have purchased a first-class quality product, which will serve you for many years to come. This, of course, provided you use the heater correctly.

  • Page 3: General Directions For Use

    • The right quality of fuel will be assured, when you system use Zibro Extra or Zibro Kristal for your heater. • If you change to another brand and/or type of paraffin oil, you must first finish up all the Information display remaining fuel in the heater.

  • Page 4: What You Need To Know In Advance

    Only use Class C1 paraffin fuel in accordance with BS2869 Part two, or equivalent. Your heater has been designed for use with high-quality water-free pure paraffin oil, such as Zibro Extra or Zibro Kristal. Only fuels of this kind will ensure clean and proper burning. Lower quality fuel may result in:...

  • Page 5: Installing The Heater

    MANUAL INSTALLING THE HEATER Carefully remove your heater from the box and check the contents. In addition to the heater you also need to have: a manual fuel pump a transportation cap a fuel cap cover these directions for use Keep the box and the packaging materials (Fig.

  • Page 6: Igniting The Heater

    Take the manual fuel pump and insert the smooth, most rigid tube into the jerrycan. Make sure that it is in a higher position than the removable tank (Fig. I). Insert the ribbed hose into the opening of the removable tank. Lock the valve on top of the pump (turn clockwise).

  • Page 7: Switching Off The Heater

    After having ignited the heater, always check whether the combustion chamber is level, by sliding it slightly to the left and the right by its handle (Fig. E). This should be a smooth movement. If the combustion chamber is not level, this will cause smoke and soot to develop.

  • Page 8: Malfunction, Causes And Solutions

    Take the plastic collar between your thumb and index finger and pull it out. Turn the collar up one step, to either position 2 or 3 (Fig. N). Carefully push the collar back, so the pin engages in the recess. Carefully reinstall the knurled wick adjustment knob.

  • Page 9: Maintenance

    Reinstall the wick height lock (Section F). Before you refilled the tank, the heater had burnt up almost all the fuel. After having refilled and replaced the removable tank, wait for 30 minutes before igniting the heater. You are using the incorrect type of fuel. Refer to THE RIGHT FUEL (See Section ’What you need to know in advance’).

  • Page 10: Specifications

    STORAGE (END OF THE HEATING SEASON) We recommend that you burn up all the fuel in the fuel tank at the end of the heating season and store the heater properly. Follow the procedure on the next page: Ignite the heater outside the living room and let it burn until all fuel is used. Let the heater cool down.

  • Page 11: Warranty Provisions

    WARRANTY PROVISIONS Your heater comes with a 24-month warranty starting on the date of purchase. Within this period all defects in material or workmanship will be repaired without any charge. The following provisions shall apply regarding this warranty: We expressly dismiss all other claims for damages, including consequential damages.

  • Page 12: Replacement Of The Wick

    REPLACEMENT OF THE WICK ENSURE THAT THE HEATER IS OFF AND COMPLETELY COOL BEFORE STARTING TO REPLACE THE WICK. Open the lid and remove the removable tank. Remove the batteries from the battery holder. Open the front grill. Remove the combustion chamber from the heater.
  • Page 13 Put the wick holder and the wick mechanism back into 1 1 2 2 1 1 1 1 position. Screw the four wing nuts hand tight. Place the knurled wick adjustment knob on the wick mechanism. Turn the knob as far to the right as possi- ble.
  • Page 16 +44 1606 837787 tel: +43 7434 44867 fax: +44 1606 837757 fax: +43 7434 44868 email: sales@scottmail.co.uk email: pvgaustria@zibro.com > ITALIA e BELGIË PVG Italy SRL PVG Belgium NV/SA Via Niccolò Copernico 5 Industrielaan 55 50051 CASTELFIORENTINO (FI) 2900 SCHOTEN tel:...
