Amana AGR3311WD Dimension Manual

®
Freestanding Gas Range
PRODUCT MODEL NUMBERS
AGR3311WD
Gas supply: Use 3/4" (1.9 cm) rigid pipe gas
supply line to the range location. A smaller size
pipe on longer runs may result in insufficient gas
supply. With L.P. gas, piping or tubing size can be
1/2" (1.3 cm) minimum. If local codes permit, it is
recommended that new flexible metal tubing,
design-certified by CSA, 4-5 feet (122-152.4 cm)
long, 1/2" (1.3 cm) or 3/4" (1.9 cm) I.D., be used
for connecting the range to the rigid gas supply
line. A 1/2" (1.3 cm) male pipe thread is needed for
connection to pressure regulator female pipe
threads. An individual manual shutoff valve must
be located in the same room, but external to the
range.
Electrical: 120-volt, 60-Hz, AC only, electrical
supply is required on a separate 15-amp circuit,
fused on both sides of the line. A time-delay fuse
or circuit breaker is recommended.
CABINET OPENING DIMENSIONS
Cabinet opening dimensions shown are for 25"
(64 cm) countertop depth, 24" (61 cm) base cabinet
depth and 36" (91.4 cm) countertop height.
NOTE: 24" (61 cm) minimum when bottom of
wood or metal cabinet is protected by not less
than 1/4" (0.64 cm) flame retardant millboard
covered with not less than No. 28 MSG sheet
steel, 0.015" (0.4 mm) stainless steel, 0.024"
(0.6 mm) aluminum or 0.020" (0.5 mm) copper.
30" (76.2 cm) minimum clearance between the
top of the cooking platform and the bottom of an
unprotected wood or metal cabinet.
If installing a range hood or microwave hood
combination above the range, follow the range
hood or microwave hood combination installation
instructions for dimensional clearances above the
cooktop surface.
Because Whirlpool Corporation policy includes a continuous commitment to improve
our products, we reserve the right to change materials and specifications without notice.

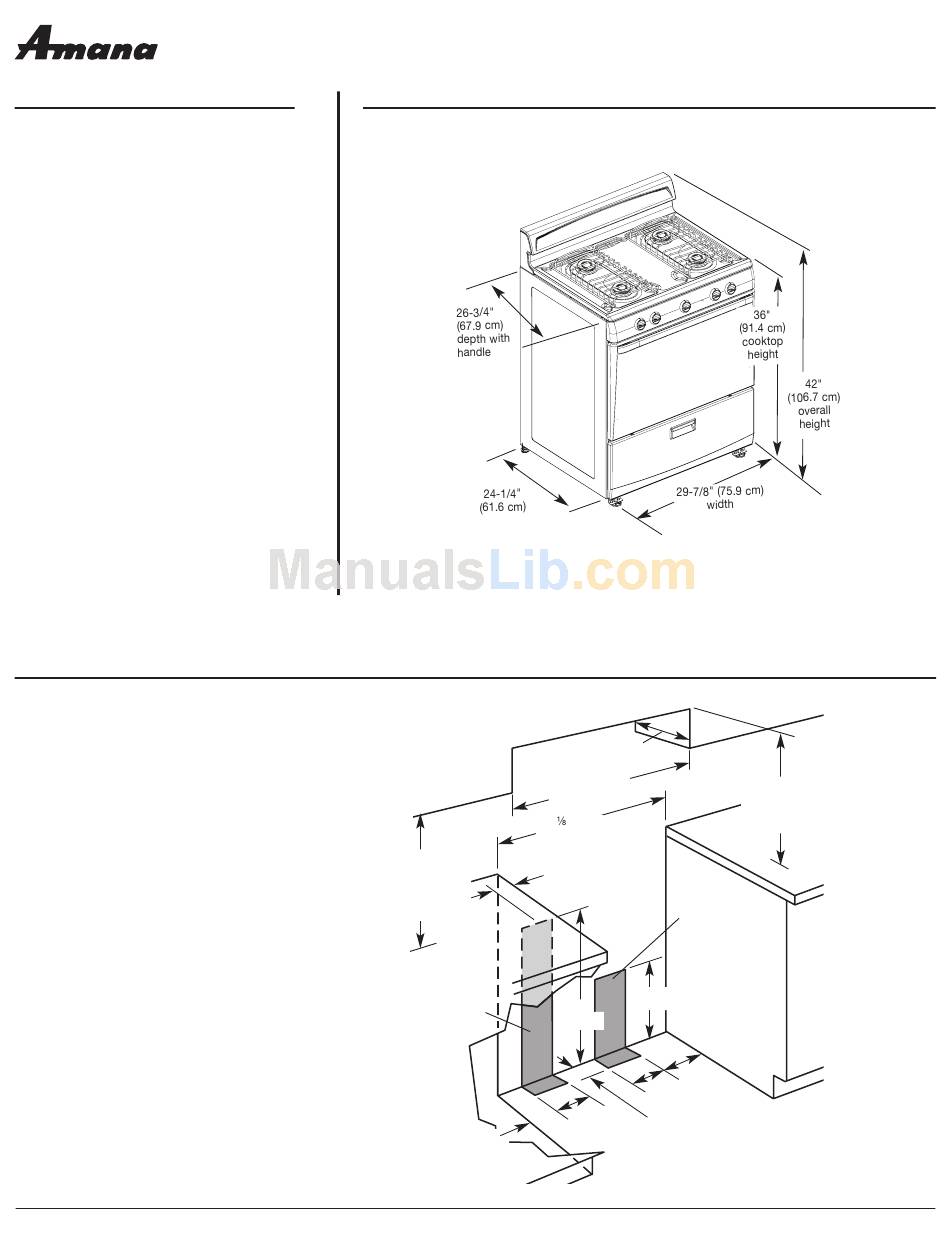

OVERALL DIMENSIONS
30" (76.2 cm) min.
cabinet opening width
30- " (76.5 cm)
opening width
18" (45.7 cm)
2" (5.1 cm) min.
min. clearance
countertop space to
upper side
side wall or other
cabinet to
combustible material
countertop
This shaded area
recommended for
electrical outlet.
3"
(7.6 cm)
Dimensions are for planning purposes only. For complete details, see Installation
Instructions packed with product. Specifications subject to change without notice.
13" (33.0 cm) max.
upper cabinet depth
This shaded area
recommended for
installation
of gas pipe.
10" (25.4 cm)
24"
(61.0 cm)
8"
(20.3 cm)
5"
(12.7 cm)
5"
2"
(12.7 cm)
(5.1 cm)
For minimum
clearance to
top of cooktop,
see NOTE.
Ref. W10130752
7-01-09
