Summary of Contents for ACV E-tech W 09

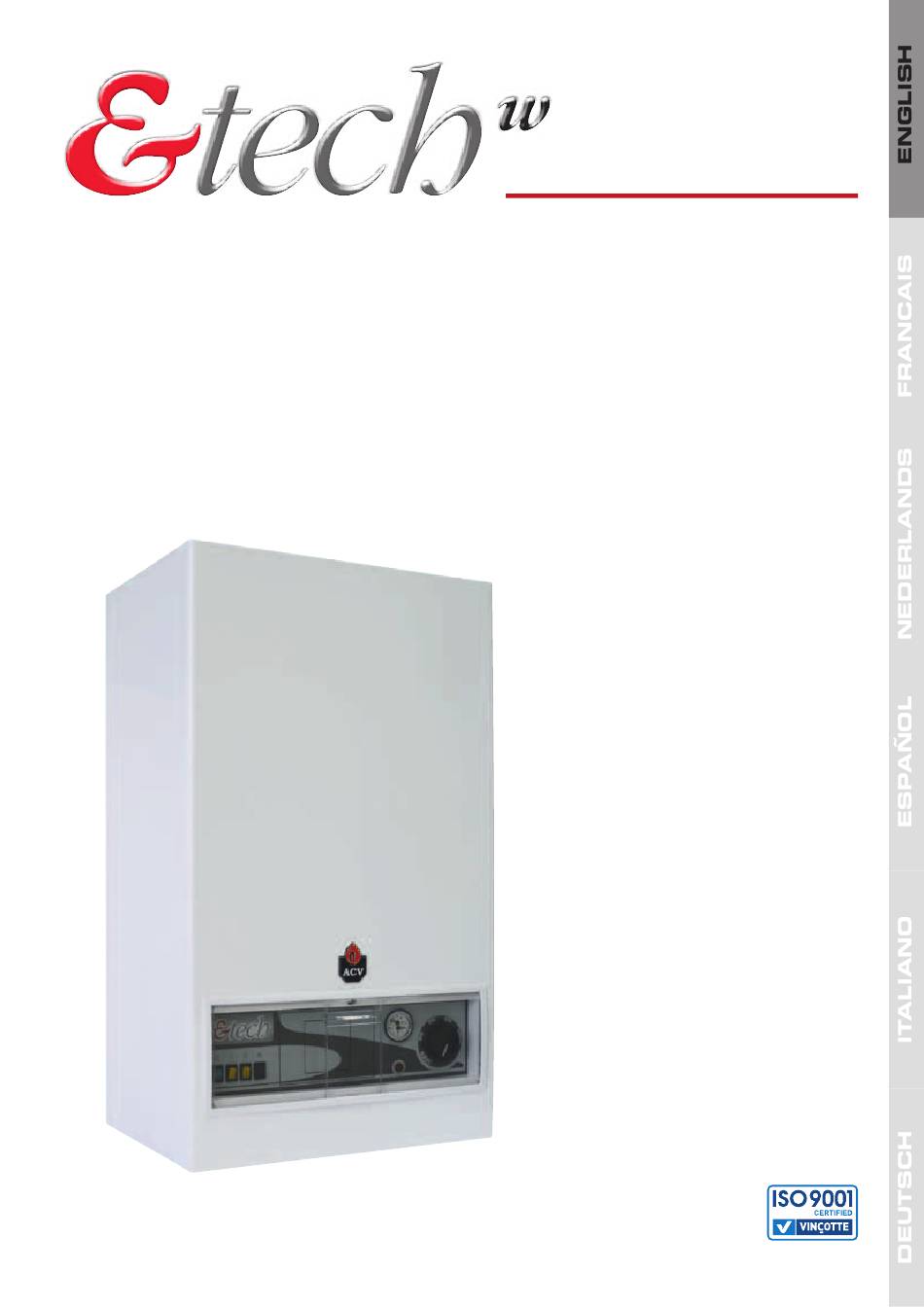

- Page 1 09 - 15 - 22 - 28 - 36 Single & Tri Phase Installation, operating and servicing instructions EN • 1 664Y4700 • D...
- Page 2 Electrical data of model 15 Single phase Electrical data of model 15 Tri Electrical data of model 22 Tri Electrical data of model 28 Tri Electrical data of model 36 Tri mountInG SpARe pARtS www.acv.com Dimensions Wall mounting Installation room InStAllAtIon Disassembling Heating connection Heating connection + DWL : “Y”...
- Page 3 WARNINGS Who Should ReAd theSe InStRuctIonS ImpoRtAntS noteS These instructions should be read by: These instructions are an integral part of the equipment to - the specifying engineer which they relate and must be handed to the user. - the installer - the user The product must be installed and serviced by qualified - the service engineer...
- Page 4 INTRoDuCTIoN deScRIptIon oF the SpecIFIcAtIonS: duAl StAGe theRmoStAt This wall hung electric boiler is available in 7 models: The temperature of the boiler is controlled by a dual stage • The models Single phase 09 and 15 are supplied with 230 V. thermostat which is set by the user to give the desired boiler • The models Tri phase 09, 15 , 22, 28 and 36 are supplied with 400 V.
- Page 5 INTRoDuCTIoN Top cover Automatic air vent Brass pocket Heating elements Heating body Hand side panel Cable gland Control panel Pressure safety valve Rear panel Expansion vessel Water pressure switch Valve of expansion vessel Expansion vessel connection Circulating pump Expansion vessel connection Heating flow Heating return Manual reset high limit pressure gauge...
-
Page 6: Optional Internal Timeclock
INSTRuCTIoNS uSeR dAtA • As with most boilers and heating appliances the casing and pipework can get hot during normal running so the boiler All user controls are situated on the front panel of the boiler, must not be covered and the surrounding area must be kept there are no user controls inside the boiler casing. -
Page 7: Technical Characteristics
TECHNICAL CHARACTERISTICS Models Single Single power 8.4 kW 14.4 kW 8.4 kW 14.4 kW 21.6 kW 28.8 kW 36 kW nominal supply voltage 1 x 230 V 1 x 230 V 3 x 400 V 3 x 400 V 3 x 400 V 3 x 400 V 3 x 400 V ohmic resitance of... - Page 8 TECHNICAL CHARACTERISTICS Electrical data of model 09 Single Phase StAGe 1 StAGe 2 totAl contRol teRmInAlS Single phase 8.4 kW (*) Terminal L1 Terminal N Power (kW) Single phase 5.6 kW (**) Terminal L1 Terminal N Power (kW) This values are based on standard supply voltage in Europe, that is 1 x 230V for single phase and 3 x 400 Volt for tri phase. (*) Factory configuration / (**) Remove the shunt 12 and 13 on control wiring in order to deactivate the relay.
- Page 9 TECHNICAL CHARACTERISTICS Electrical data of model 22 Tri Phase StAGe 1 StAGe 2 totAl contRol teRmInAlS tri phase 21.6 kW (*) Power terminal L1 20.8 10.4 31.2 Power terminal L2 20.8 10.4 31.2 Power terminal L3 20.8 10.4 31.2 Power (kW) 14.4 21.6...
-
Page 10: Frost Protection
MouNTING 332 mm 442 mm dImenSIonS 185 mm 105 mm 370 mm WAll mountInG InStAllAtIon Room The appliance must be positioned in such a way as to be easily accessible at all times. In addition, the following minimum distances around the appliance must be complied with. 48,4 mm 101,6 mm 101,6 mm... - Page 11 INSTALLATIoN dISASSemblInG Panel removal and access to hydraulic connections 1. Undo screws. 2. Tilt panel towards you and lift clear remove the top cover. 3. Loosen screws of the control panel. 4. Turn up the control panel. 5. Block the control panel with the screw. EN • 11 664Y4700 •...
-
Page 12: Heating Connection + Dhw : "Y" Plan
INSTALLATIoN heAtInG connectIon Limiting the maximum adjustable temperature Factory setting Floor heating 30 - 85°C 30 - 50°C heAtInG connectIon + dhW : “y” plAn Limiting the maximum adjustable temperature 60 - 85°C heAtInG connectIon + dhW : “S” plAn Limiting the maximum adjustable temperature 60 - 85°C EN •... -
Page 13: Electric Connection
• This appliance must be permanently connected to fixed wiring and must be earthed. • The wiring must be carried out by a competent person and in accordance with the current IEE Wiring Regulations. • Isolation device must be provided with a minimum contact clearance of 3 mm. • The MCB must be readily accessible and adjacent to the appliance. E-Tech 09 - 15 Single power supply 1 x 230 v The safety contactor is not supplied by ACV The safety contactor must be installed, outside the boiler and according to the local regulations. L3 L2 E-Tech 09 - 15 Tri power supply 3 x 400 v... - Page 14 • This appliance must be permanently connected to fixed wiring and must be earthed. • The wiring must be carried out by a competent person and in accordance with the current IEE Wiring Regulations. • Isolation device must be provided with a minimum contact clearance of 3 mm. • The MCB must be readily accessible and adjacent to the appliance. L3 L2 E-Tech 28 Tri power supply 3 x 400 v The safety contactor is not supplied by ACV The safety contactor must be installed, outside the boiler and according to the local regulations. E-Tech 36 Tri power supply 3 x 400 v The safety contactor is not supplied by ACV The safety contactor must be installed, outside the boiler and according to the local regulations.
- Page 15 INSTALLATIoN EN • 15 664Y4700 • D...
- Page 16 INSTALLATIoN EN • 16 664Y4700 • D...
- Page 17 INSTALLATIoN EN • 17 664Y4700 • D...
- Page 18 INSTALLATIoN EN • 18 664Y4700 • D...
- Page 19 INSTALLATIoN 2 x 2,5 mm 230 V ~ 50 Hz (3A) 230 V ~ 50 Hz CONTROL POWER Type 9 8.4 kW 5.6 kW SINGlE PHASE Type 15 14.4 kW 9.6 kW SINGlE PHASE EN • 19 664Y4700 • D...
- Page 20 INSTALLATIoN 2 x 2,5 mm 230 V ~ 50 Hz 400 V ~ 50 Hz (3A) POWER CONTROL EN • 20 664Y4700 • D...
- Page 21 INSTALLATIoN 4 mm 230 V ~ 50 Hz 400 V ~ 50 Hz (3A) POWER CONTROL Type 22 21.6 kW 14.4 kW PHASE EN • 21 664Y4700 • D...
- Page 22 INSTALLATIoN 2 x 4 mm 230 V ~ 50 Hz 400 V ~ 50 Hz (3A) POWER CONTROL Type 28 28.8 kW 21.6 kW 14.4 kW PHASE EN • 22 664Y4700 • D...
- Page 23 INSTALLATIoN 2 x 4 mm 230 V ~ 50 Hz (3A) 400 V ~ 50 Hz CONTROL POWER Type 36 36 kW 27 kW 18 kW PHASE EN • 23 664Y4700 • D...
-
Page 24: Honeywell Sundial Wiring Diagrams
HoNEyWELL SuNDIAL WIRING DIAGRAMS MOTOR MOTOR Honeywell Sundial Wiring Centre V4043H V4043H `S ` Plan HTG ZONE VALVE DHW ZONE VALVE T6306B ROOM STAT CYLINDER STAT Note: Earth wires not shown for clarity During installation the earth wires from each component connect to terminal 3 in the wiring centre CABLE COLOUR CODES bk- black... - Page 25 HoNEyWELL SuNDIAL WIRING DIAGRAMS V4073A MID POSITION ZONE VALVE Honeywell Sundial Wiring Centre `Y ` Plan T6306B ROOM STAT CYLINDER STAT Note: Earth wires not shown for clarity During installation the earth wires from each component connect to terminal 3 in the wiring centre CABLE COLOUR CODES bk- black br- brown...
-
Page 26: Commissioning And Maintenance
3. Switch on local isolator to boiler boiler, please refer to BS7593. If installing the boiler onto 4. Turn the boiler on using the ON/OFF switch an existing system, ACV recommend that an approved 5. Switch on the power levels switch stage 1, the first stage system cleaner is used. -
Page 27: Removal The Heating Elements
REMovAL THE HEATING ELEMENTS EN • 27 664Y4700 • D... - Page 28 EN • 28 664Y4700 • D...
