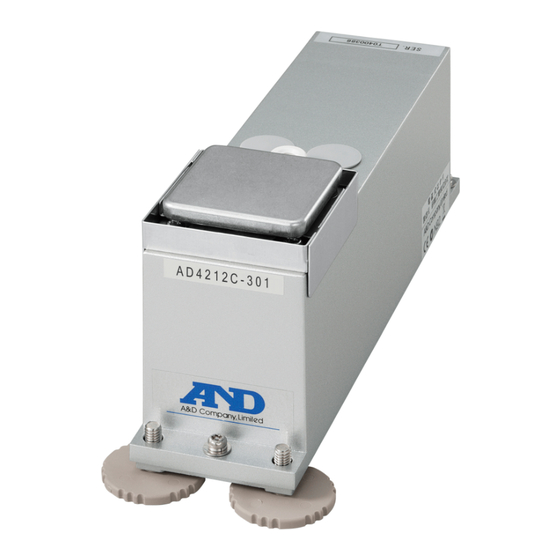

- Page 1 AD-4212C-300 AD-4212C-600 AD-4212C-3000 AD-4212C-6000 AD-4212C-301 AD-4212C-3100 Production Weighing Unit INSTRUCTION MANUAL 1WMPD4001992B...
- Page 2 © 2011 A&D Company, Limited. All rights reserved. No part of this publication may be reproduced, transmitted, transcribed, or translated into any language in any form by any means without the written permission of A&D Company, Limited. The contents of this manual and the specifications of the instrument covered by this manual are subject to change for improvement without notice.
-
Page 3: Table Of Contents
CONTENTS INTRODUCTION ..........................2 1.1. Features ............................2 1.2. Compliance ........................... 5 UNPACKING THE BALANCE .....................6 2.1. Unpacking............................6 2.2. Installing the Balance ........................8 PRECAUTIONS .........................10 3.1. Before Use ..........................10 3.2. When Building Into a System .......................11 3.3. During Use ..........................14 3.4. -
Page 4: Introduction
Minimum Weighing Model weighing Stabilization time capacity value AD-4212C-300 320 g 0.001 g 0.5 second (0 - 30 g), 1.0 second (30 - 320 g) AD-4212C-600 620 g 0.001 g 0.5 second (0 - 30 g), 1.0 second (30 - 620 g) - Page 5 Example 1 (Connecting to a personal computer or an AD-8922A) Accessory AD-4212C RS-232C cable (10 m) Communication software “ WinCT-AD4212C” USB converter (Option: AX-USB-9P) Personal computer USB port AD-8922A AD-4212C USB converter (Option: AX-USB-9P) Personal Accessory computer Communications cable RS-232C cable (10 m) (Option: AX-KO1786-200)
- Page 6 Example 2 (Connecting to a PLC) D-sub 9-pin (female) AD-4212C Accessory RS-232C cable (10 m) AD-8922A-01 BCD input Connection cable* AD-4212C AD-8922A BCD output board BCD cable (Option AD-8922A-01) (Fabricate locally) * Specify the AD-8922A-01 connection cable when ordering the AD-8922A-01. AX-KO3705-200 AX-KO3705-500 AX-KO3705-1000...
-
Page 7: Compliance
1.2. Compliance Compliance with FCC Rules Please note that this equipment generates, uses and can radiate radio frequency energy. This equipment has been tested and has been found to comply with the limits of a Class A computing device pursuant to Subpart J of Part 15 of FCC rules. These rules are designed to provide reasonable protection against interference when the equipment is operated in a commercial environment. -
Page 8: Unpacking The Balance
2. UNPACKING THE BALANCE 2.1. Unpacking The balance is a precision instrument. Unpack the balance carefully. Keep the packing material to be used for transporting the balance in the future. When unpacking, see the illustration below to confirm that everything is contained. AC adapter Weighing jack... - Page 9 ATTACHING THE AD-4212C SERIES WEIGHING UNIT DIRECTLY ON THE MOUNTING BASE When the AD-4212C series weighing unit is built into a system, remove the three leveling feet and use the screw holes to secure the weighing unit to the base. Attachment Procedure 1.
-
Page 10: Installing The Balance
2.2. Installing the Balance Install the balance as follows: 1. Refer to “3. PRECAUTIONS” for installing the balance. 2. Refer to "2-1 Unpacking" on page 6, to attach the pan support and the weighing pan on the weighing unit. 3. Insert the RS-232C cable into the jack located on the rear of the weighing unit. Rear of the weighing unit When confirming the performance... - Page 11 Status the weighing pan (g) Pan support is used (with weighing pan removed) 20 to 130 AD-4212C-300/301 Pan support boss is used (with the weighing pan 70 to 180 and pan support removed) Pan support is used (with weighing pan removed)
-
Page 12: Precautions
3. PRECAUTIONS To get the optimum performance from the balance and acquire accurate weighing data, note the following: 3.1. Before Use Install the weighing unit in an environment where the temperature and humidity are not excessive. The best operating temperature is about 20°C / 68°F at about 50% relative humidity. -
Page 13: When Building Into A System
Allowable eccentric load for each model Model Allowable eccentric load AD-4212C-300/600/301 0.1 Nm or less AD-4212C-3000/6000/3100 0.3 Nm or less AD-4212C-300/600/301 Example of a system where the total moment of the device and the object is 0.1 Nm or less: 200 g X 0.05 m... - Page 14 Errors due to a static charge and measures to take When the ambient humidity is less than 45% RH, insulators such as plastic or glass are prone to static electricity. When charged material comes close to the balance, a pulling force is generated by static induction between the charged material and the weighing pan.
- Page 15 Errors due to air flow and measures to take Where the influence of ambient air flow is great such as: close to an air conditioner, door or passage way. Even very subtle air flow that is hard to be detected may influence the weighing operation.
-
Page 16: During Use
3.3. During Use To minimize the affect by electrical noises, earth ground the weighing unit and the display unit (option). Do not drop things upon the weighing pan, or place a sample on the pan that is beyond the balance weighing capacity. -
Page 17: Operation Of Winct-Ad4212C
4. OPERATION OF WinCT-AD4212C The software has the following functions: - Set the weighing speed - Set the minimum display value - Calibration - Set the baud rate • The parameters set using these functions, are stored in non-volatile memory, and maintained, even if the AC adapter is removed,. -
Page 18: Changing The Weighing Speed Using Winct-Ad4212C
Model Usable calibration weight Calibration weight provided AD-4212C-300 50g, 100g, 200 g, 300g AD-4212C-600 50g, 100g, 200 g, 300g, 400 g, 500 g, 600 g 50g, 100g, 200 g, 300g, 400 g, 500 g, 1000 g,... -
Page 19: Calibration Procedure
Calibration procedure This function calibrates the balance using the calibration weight. (Display example: AD-4212C-300) Operation 1. Plug in the AC adapter and warm up the balance for 30 minutes or more with nothing on the pan. 2. Press the CAL button. Cal 0 is displayed. -
Page 20: Changing The Baud Rate Using Winct-Ad4212C
4.3. Changing the Baud Rate Using WinCT-AD4212C Operation 1. Click the [Settings] tab. 2. Select the baud rate to be used and click the Set button. (Factory setting: 2400) [Settings] tab Set button 3. “Completed” appears when the setting is complete. -
Page 21: Smart Range Function
5. SMART RANGE FUNCTION The AD-4212C-301/3100 are equipped with two ranges. The precision range has a higher resolution. The standard range has a normal resolution. The range switches automatically, depending on the value displayed. Sending the R command allows weighing in the precision range, regardless of the tare value. The range can be fixed to the standard range by changing the minimum weighing value using the SMP command. -
Page 22: Communication Specifications
6. COMMUNICATION SPECIFICATIONS The AD-4212C series can communicate interactively using RS-232C. The AD-4212C series can continuously transmit the weighing data. (Approx.10 times/second* to 50 times/second) The AD-4212C series is DCE. The AD-4212C series can connect directly to the RS-232C terminal of a personal computer by using the accessory RS-232C cable. - Page 23 2. Pin position Pin position of the RS-232C cable (D-Sub 9-pin side, female) Inch screw Pin No. Signal name Direction Description Internally used* (Power supply GND terminal for external (Vs) equipment) Output Transmit data Input Receive data N.C. Signal ground Internally used* Input Request to send...
-
Page 24: Command Example
4. Command The balance can be controlled by the following commands. When transmitting, add the terminator <CR><LF> to each command. Commands to query weighing data When the display is turned on, the AD-4212C series outputs the weighing data continuously. To use the Q or S command, send the C command to stop the continuous data output, then request the weighing data using the Q or S command. - Page 25 CAL command example External devices Time Weighing unit (PC, PLC) S T , + 0 0 0 0 . 0 1 2 CAL command C R L F @ R E ; @ D P ; 0 0 0 @ S T @ C H ;...
- Page 26 SMP command example Personal computer Time Weighing unit S T , + 0 0 0 0 . 0 1 2 SMP command S M P C R L F S T , + 0 0 0 0 0 . 0 1 R command example when the precision range is used ...
-
Page 27: Maintenance
7. MAINTENANCE Do not disassemble the balance. Contact the local A&D dealer if the balance needs service or repair. Use the original packing material for transportation. Do not use organic solvents to clean the balance. Clean the balance with a lint free cloth that is moistened with warm water and a mild detergent. -
Page 28: Troubleshooting
8. TROUBLESHOOTING 8.1. Checking the Balance Performance and Environment The balance is a precision instrument. When the operating environment or the operating method is inadequate, performing accurate weighing will not be possible. If the balance seems to have a problem with repeatability or to perform improperly, check as described below. Also, visit our website, http://www.aadd.co.jp/, for “Information Library”... -
Page 29: Asking For Repair
Sample and container Has the sample absorbed or lost moisture? Has the temperature of the sample, and the container if used, been allowed to equalize to the ambient temperature? Refer to “3-2 When Building into a System”. Is the sample charged with static electricity? Refer to “3-2 When Building into a System”. Is the sample of magnetic material such as iron? Use much care when weighing magnetic materials. -
Page 30: Specifications
9. SPECIFICATIONS AD-4212C-300 AD-4212C-600 AD-4212C-301 Weighing capacity 320 g 620 g 320 g / 51 g Maximum display 320.084 g 620.084 g 320.084 g / 51.0009 g Minimum weighing value 0.001 g 0.001 g 0.001 g / 0.0001 g (1 digit) Repeatability 0.001 g... - Page 31 AD-4212C-3100 AD-4212C-3000 AD-4212C-6000 Weighing capacity 3200 g 6200 g 3200 g / 510 g Maximum display 3200.84 g / 510.009 g 3200.84 g 6200.84 g Minimum weighing value 0.01 g / 0.001 g 0.01 g 0.01 g (1 digit) Repeatability 0.01 g / 0.002 g 0.01 g 0.01 g...
-
Page 32: External Dimensions
EXTERNAL DIMENSIONS - AD-4212C-300 / 600 / 3000 / 6000 / 301 / 3100 Pan support dimensions 48.8 91.9 1 4 - M 4 3 - M 6 46 0.2 When securing, 15.6 use the M5 screws. Unit: mm... -
Page 33: Options
11. OPTIONS AX-KO3590-200 RS-232C cable AX-KO3590-500 RS-232C cable AX-KO3590-1000 RS-232C cable 10 m (provided with the balance as a standard accessory.) AX-USB-9P: USB converter/Cable set USB converter (D-Sub 9 pin - USB) RS-232C cable (D-Sub 9 pin - D-Sub 9-pin) * This RS-232C cable is not used with the AD-4212C series. - Page 34 AD-1684: Electrostatic field meter This option measures the amount of the static charge on the sample, tare or peripheral equipment and displays the result. If those are found to be charged, discharge them using the AD-1683 DC static eliminator. AD-8121B Printer Compact thermal dot-matrix printer Statistical function, clock and calendar function, interval print function, graphic print function, dump print mode...
-
Page 35: Terms/Index
12. TERMS/INDEX Terms Stable value The weight value when the stabilization indicator appears. Environment Ambient conditions such as vibration, drafts, temperature, static electricity or magnetic fields which affect the weighing operation. Calibration Adjustment of the balance using the calibration weight so that it can weigh accurately. - Page 36 AX- KO3590-500 ........4, 31 AX- KO3590-1000 ........4, 31 I/O unit ...........28, 29 AX-USB-9P..........3, 31 Insulators .............12 LAN..............4 BCD............. 2, 4, 31 Leveling foot ..........6, 7 Breeze break ........6, 12, 26 LF.............20, 21, 22 Linearity ..........28, 29 C command ..........
- Page 37 Remote controller ........31 Repeatability......26, 28, 29, 33 U command ..........22 RE-ZERO button ......... 15 Unit ..............15 RS-232C..........3, 4, 20 USB ...............3 RS-232C cable ........6, 8, 31 USB converter..........3, 31 S command ..........22 Vibration............11 SAMPLE button........... 15 Sensitivity drift .........
