A&D AX-MC10KPAN Instruction Manual

Auto-Centering Pan（AX-MC10K/30KPAN）
Instruction manual
Read this manual thoroughly before using the Auto-Centering Pan and keep it at hand
for future reference.
1. Introduction
The auto-centering pans are used with the MC series Mass Comparator Balances,
the AX-MC10KPAN with the MC-10K and the AX-MC30KPAN with the MC-30K. The
balance can achieve more precise weighing, by using the auto-centering pan, which
aligns the center of gravity of the material to be weighed (a weight) with the pan
center automatically and reduces eccentric loading errors.
The breeze break provided with this option, when attached, reduces the influence of
external disturbances such as drafts.

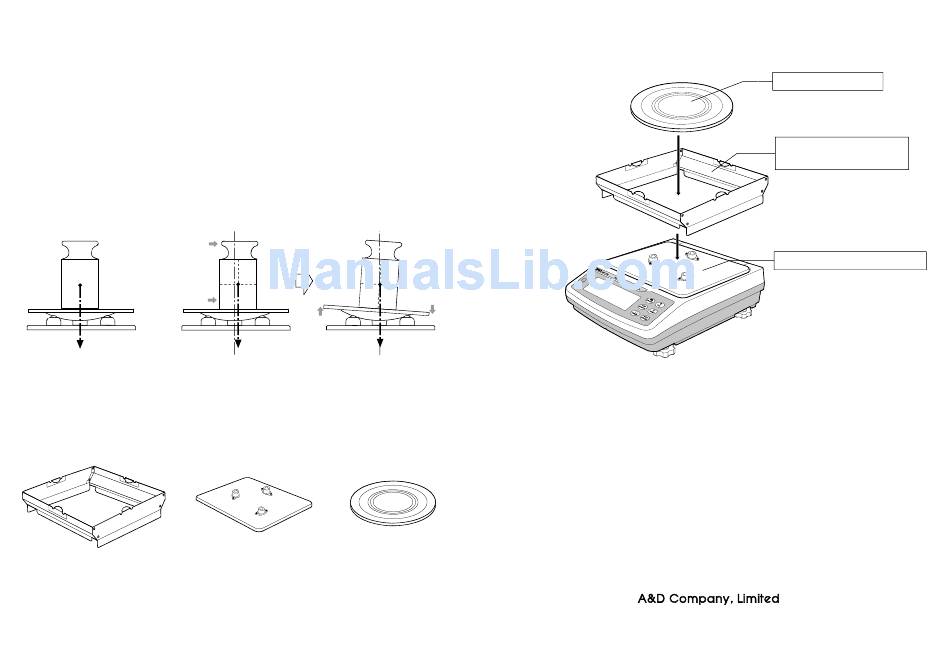

Center of gravity of When the center of
the weight and the gravity of the weight
pan aligned and the pan are not
aligned
2. Unpacking
Breeze break Auto-centering pan guide
for Auto-centering pan
(MC10K/30K)
1WMPD4002253
3. Installation procedure
The center of gravity of
the weight shifts to the
pan center
4. Precautions on using the auto-centering pan
Auto-centering pan
Place the auto-centering pan guide and the breeze break on the balance, and then
place the auto-centering pan on the guide.
Note: When replacing the standard weighing pan with the auto-centering
pan, be sure to calibrate the balance before weighing.
- Do not place a weight on the edge of the auto-centering pan.
The auto-centering pan may touch the breeze break and cause the weight to fall, or
the center of gravity of the weight may not shift to the pan center and cause a
weighing error.
- Place a weight on the auto-centering pan gently.
Dropping a weight onto the auto-centering pan, may damage the surface of the pan
where it contacts the auto-centering pan guide bearings, thus affecting the smooth
centering of the pan.
3-23-14 Higashi-Ikebukuro, Toshima-ku, Tokyo 170-0013 JAPAN
Telephone: [81] (3) 5391-6132 Fax: [81] (3) 5391-6148
http://www.aandd.co.jp/
Auto-centering pan
Breeze break
for Auto-centering pan
Auto-centering pan guide
