Summary of Contents for A&D AD-1654

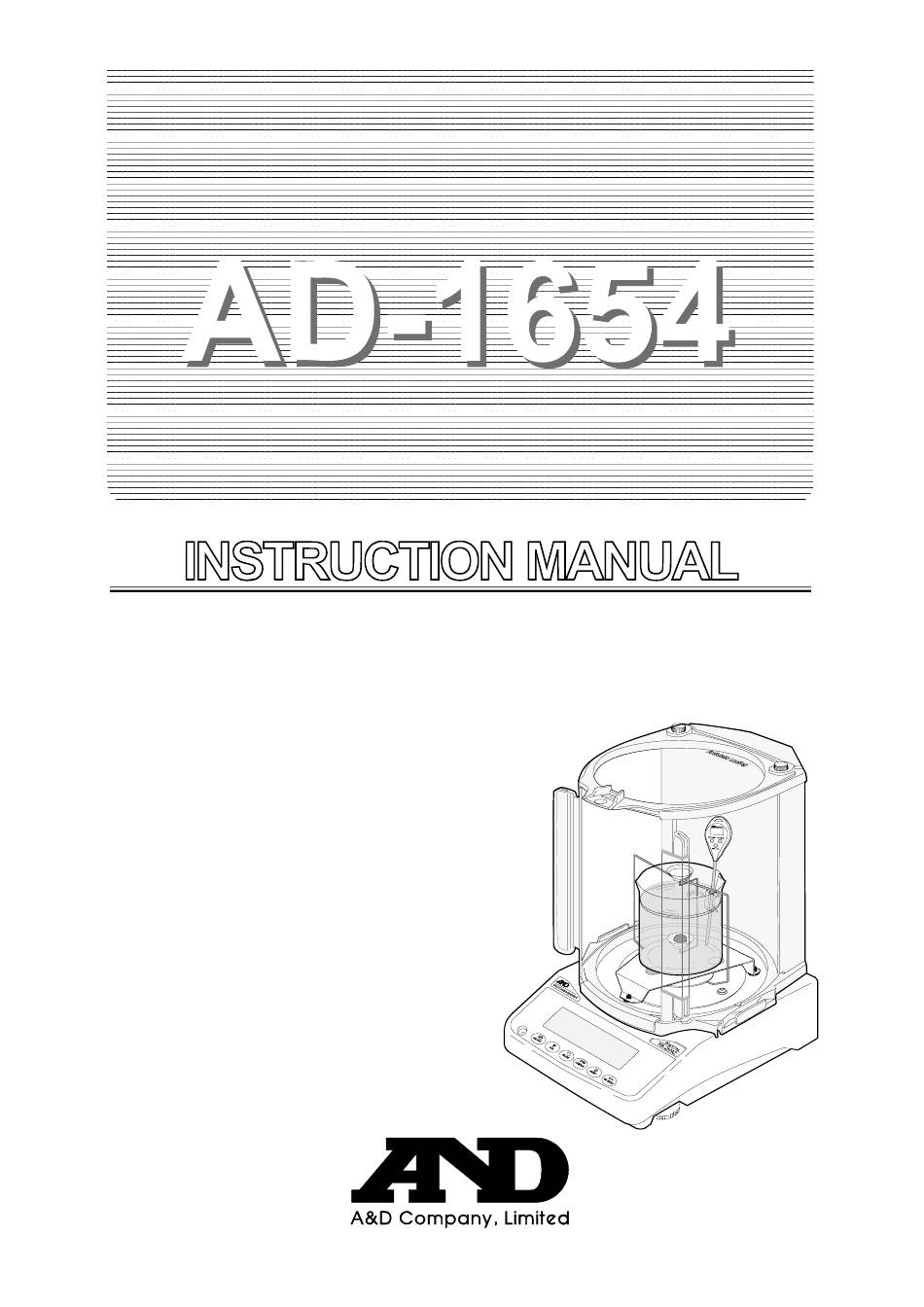

- Page 1 Purchase at www.scaleman.com DENSITY DETERNIMATION KIT HR-AZ series HR-A series F Z - i s e r i e s F X - i s e r i e s 1WMPD4002606...
- Page 2 Purchase at www.scaleman.com This Manual and Marks Product Safety Signs and Labels All safety messages are identified by the following, “WARNING” or “CAUTION”, of ANSI Z535.4 (American National Standard Institute: Product Safety Signs and Labels). The meanings are as follows: A potentially hazardous situation which, if not avoided, could WARNING result in death or serious injury.
-
Page 3: Table Of Contents
Purchase at www.scaleman.com Contents Introduction ..............................2 1-1. Precautions..............................2 Unpacking The Kit ............................2 Density Measurement Principles ........................3 3-1. Density.................................3 3-2. Specific Gravity............................3 3-3. Archimedes’ Principle Of Density Measurement ..................3 3-4. Density Of A Solid............................3 3-5. Density Of A Liquid ............................3 Error Factors ..............................4 4-1. -
Page 4: Introduction
Purchase at www.scaleman.com 1. Introduction Thank you for purchasing the AD 1654 density determination kit. The AD 1654, when combined with one of A&D electronic balances (HR-AZ / HR-A and FZ- / FX- series), allows the density of a solid and liquid to be measured easily. -
Page 5: Density Measurement Principles
(0.99997 g/cm 3-3. Archimedes’ Principle Of Density Measurement The AD-1654 is combined with an electronic balance to measure the density of a sample based on the Arichimedes’ principle. Arichimedes’ principle A body immersed in a liquid (or a gas) is subject to an upward force equal to the weight of the liquid (or the gas) it displaces. -
Page 6: Error Factors
Purchase at www.scaleman.com 4. Error Factors The results of measurements may be affected by various factors that could cause errors 4-1. Buoyancy Of Air A density measurement is influenced by an upward force of 0.0010 to 0.0014 g/cm (buoyancy of air). The density of air can be obtained by the equation below: d : Density of air (g/cm 0.0012932... -
Page 7: Influence Of Wire
Purchase at www.scaleman.com 4-4. Influence Of Wire In solid density measurement, the surface of the liquid rises when a solid sample is placed on the density pan, which is immersed in the liquid, At this time, the buoyancy corresponding to the weight of the raised liquid is exerted on the wire (diameter of 1 mm) connecting the upper and lower pans. -
Page 8: Measuring The Density Of A Solid
Purchase at www.scaleman.com 5. Measuring The Density Of A Solid Assemble the kit as described in the procedure below. Note that the assembly procedure depends on the balance model. 5-1. Assembling The Kit: HR-AZ / HR-A Series 1. Remove the weighing pan, pan support, breeze break Step 5. -
Page 9: Assembling The Kit: Fz-I / Fx-I Series
Purchase at www.scaleman.com 5-2. Assembling The Kit: FZ- / FX- Series 1. Remove the weighing pan, pan support and breeze break from the balance. 2. Fasten a proper balance weight and spring washer to the density pan stand with the cone boss. Mini. -
Page 10: Measuring The Density Of A Solid
Purchase at www.scaleman.com 5-3. Measuring The Density Of A Solid The density of a solid is obtained by averaging Sample in air Temperature the measured values. Step 2. 1. Start the measurement when water temperature The upper pan becomes stable. The lower pan Ex.: Display of HR-AZ Step 3. - Page 11 Purchase at www.scaleman.com Example of recording sheet Value A : Weight of sample in air (g) 4.8102 g Value B : | Weight of sample in air - Weight of sample in liquid | (g) 0.5946 g Temperature of liquid (°C) °C Density of liquid (g/cm 0.99678 g/cm...
-
Page 12: Measuring The Density Of A Liquid
Purchase at www.scaleman.com 6. Measuring The Density Of A Liquid Assemble the kit as described in the procedure below. 6-1. Assembling The Kit: 1. For the procedure up to the setting of the beaker stand, The volume of the float is printed. Ex:10.00 cm refer to the assembly procedure for each balance model described in "5.Measuring The Density Of A Solid". -
Page 13: Frequently Asked Questions
Purchase at www.scaleman.com Example of recording sheet Value A : | Weight of float in air - Weight of float in liquid | (g) 9.9704 g Temperature of liquid (°C) 25 °C Volume of float (g/cm 10.01 cm Density of air (g/cm 0.001 g/cm Weight of float - Weight of float 0.997 g/cm... -
Page 14: Water Resistant Digital Thermometer Ad-5625
Purchase at www.scaleman.com 8. Water Resistant Digital Thermometer AD-5625 Safety Use Consider the following notices when operating the thermometer. Caution Repair and Arrangement Authorized person can only repair the AD-5625. Do not open the case to repair the AD-5625. Attempting repairs yourself may cause damage to the AD-5625. - Page 15 Purchase at www.scaleman.com Precautions The thermometer includes a monitor battery. Refer to "Replacing the battery" before a measurement, open the battery cover and install the battery. When installing the battery, a current temperature is displayed. The accessory battery is for an operation monitor and may be short battery life. Replacing The Battery A coin battery (LR44) is used.
- Page 16 Purchase at www.scaleman.com Measuring The Temperature Follow the procedure below to measure the water temperature. 1. Remove the sheath folder form the sensor sheath. 2. Press the ON/FAST button to turn on AD-5625. Sensor sheath 3. Sink the sheath sensor into the liquid. 4.
- Page 17 Purchase at www.scaleman.com The Automatic Power-Off Function And Turing Off Thermometer The Automatic Power-Off Function The thermometer has an automatic power-off function. When pressing the AUTO-OFF button during the measurement display, the indicator "AUTO" is displayed and the automatic power-off function is performed. When no operation is performed for six or seven minutes, the thermometer is turned off automatically.
