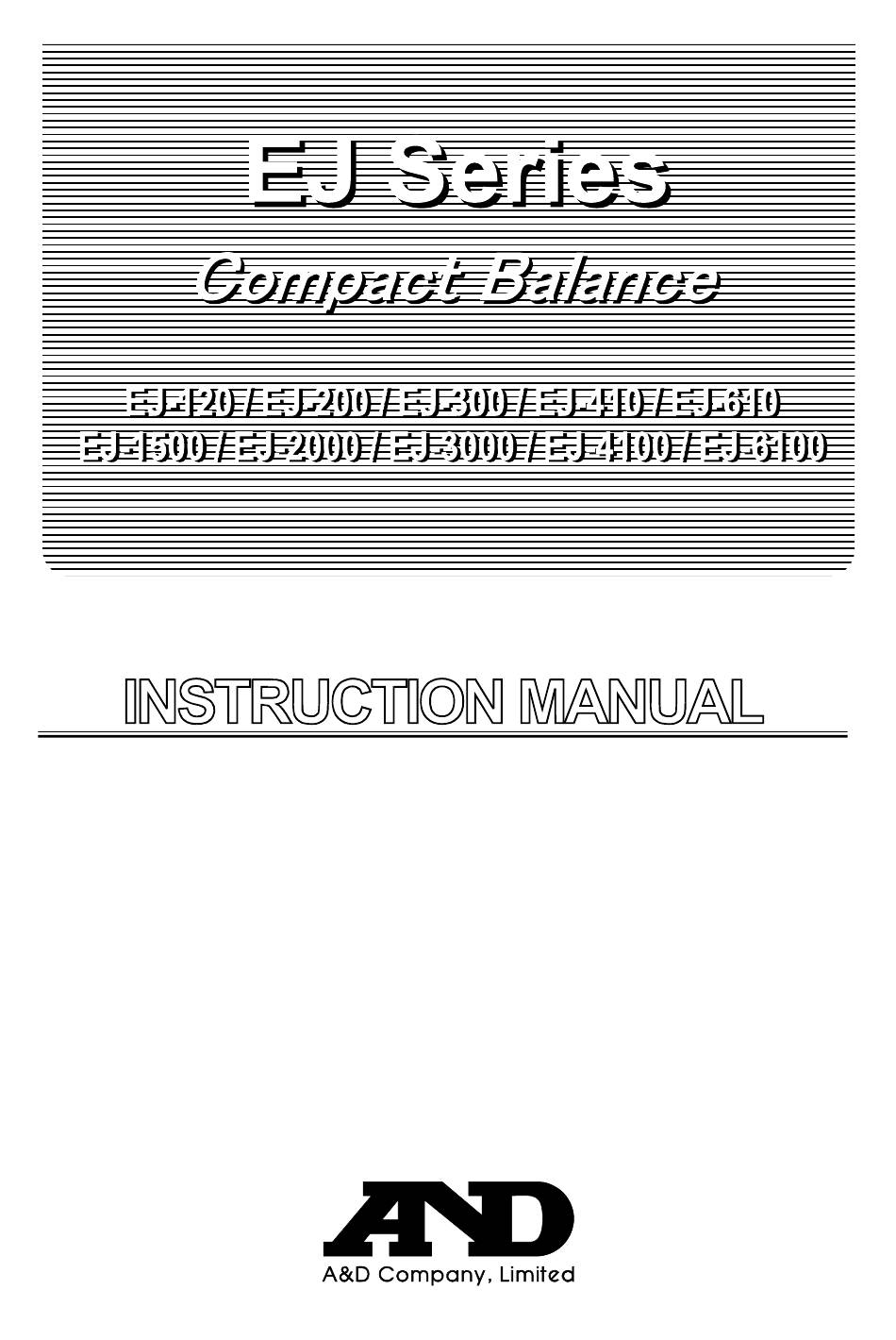

- Page 1 1WMPD4001917...
-
Page 2: Compliance With Fcc Rules
This manual and Marks All safety messages are identified by the following, “WARNING” or “CAUTION”, of ANSI Z535.4 (American National Standard Institute: Product Safety Signs and Labels). The meanings are as follows: A potentially hazardous situation which, if not avoided, could result WARNING in death or serious injury. -
Page 3: Table Of Contents
CONTENTS 1. INTRODUCTION ......................3 2. UNPACKING ........................3 3. PART NAMES AND FUNCTIONS ...................4 4. SETTING UP ........................5 4-1. Setting up your balance .........................5 4-2. Power source..........................5 4-3. Breeze break ..........................6 4-4. Storage ............................6 5. OPERATION........................7 5-1. Turn the power ON and OFF ......................7 5-2. - Page 4 11. MAINTENANCE ......................34 11-1. Notes on maintenance .......................34 11-2. Error codes ..........................34 12. SPECIFICATIONS .......................36 12-1. EJ series ............................36 12-2. Other weighing units ........................37 12-3. Options ............................38 12-4. Dimensions ..........................38 GRAVITY ACCELERATION MAP ..................39...
-
Page 5: Introduction
2. UNPACKING When unpacking, check whether all of the following items are included: Weighing pan Weighing pan Main unit Main unit EJ-120 / EJ-200 / EJ-300 EJ-1500 / EJ-2000 / EJ-3000 EJ-410 / EJ-610 EJ-4100 / EJ-6100 Instruction Manual... -
Page 6: Part Names And Functions
STABLE NET indicator Weighing units ZERO indicator ZERO Weighing pan ON:OFF key Round pan for EJ-120 / EJ-200 / EJ-300 / EJ-410 / EJ-610. Spirit level Leveling foot SAMPLE key Calibration switch cover PRINT key AC adapter jack (bottom) UNITS key... -
Page 7: Setting Up
4. SETTING UP 4-1. Setting up your balance 1. Place the weighing pan on the main unit as shown in “2. UNPACKING”. 2. Adjust the level of the balance using the leveling feet. Use the spirit level to confirm. The bubble should be in the center of the circle. 3. -
Page 8: Breeze Break
Remove batteries when the balance is not to be used for a long time. They may leak and cause damage to the balance. Damage due to battery leakage is not covered by the warranty. Installing batteries 1. Turn off the balance and disconnect the AC adapter if used. 2. -
Page 9: Operation
5. OPERATION 5-1. Turn the power ON and OFF 1. Press the ON:OFF key to turn the power ON. STABLE Weighing units ZERO All of the symbols are displayed as shown above. (About units: Only the units available will be displayed.) The display turns off except for a weighing unit and the decimal point. -
Page 10: Units
5-3. Units The most common unit of weight used around the world is the gram, but there is often a need to shift to alternative units specific to the country where the balance is used or to select modes such as counting or percent. The units and the order they appear in the display are as follows: Pound Ounce (avoir) -
Page 11: Selecting A Weighing Unit
5-4. Selecting a weighing unit Press the UNITS key to select a unit. The following sections are a description of the Each pressing switches the three common units: g (gram mode), pcs (counting units available in the order described on the previous mode), and % (percent mode). -
Page 12: Counting Mode (Pcs)
5-6. Counting mode (pcs) Weighs the sample pieces and calculate its unit weight. Using the sample unit weight, the scale counts the number of parts or items. As for the minimum unit weight acceptable, see the function setting “Umin”. Selecting the counting mode 1. -
Page 13: Percent Mode (%)
9. The balance re-calculates the unit weight while the ACAI indicator is blinking. Do not touch the balance or samples on the pan until the ACAI indicator turns off. 10. Counting accuracy is improved when the ACAI indicator turns off. Each time the above operation is performed, a more accurate unit weight will be obtained. -
Page 14: Comparator
= the smallest display division. e.g.: 4d = four display divisions The upper limit and lower limit numerical values are common to each of the weighing, counting and percent mode. The example for EJ-120/200/300/410/610 is as follows. Upper limit value “001010”: “10.10g” “1010pcs” “101.0%”... - Page 15 Entering the upper and lower limit values Cp Hi 6. With Cp Hi displayed, press the PRINT key. Enter the upper limit value using the following keys. SAMPLE key To select the digit blinking to change. RE-ZERO key To set the value of the digit 000000 selected.
-
Page 16: Calibration
7. CALIBRATION This function adjusts the balance for accurate weighing. Perform a calibration in the following cases. Calibration (CAL) switch When the balance is first used. When the balance has been moved. For regular calibration. Calibration (CAL) switch cover 7-1. Calibration using a weight Prepare the calibration weight (sold separately) in advance. - Page 17 5. At step 3, pressing the PRINT key to weigh the With nothing zero-point value. Do not touch the pan during on the pan weighing. To store Cal 0 5000. 0 6. Place the calibration weight with the same value as Calibration displayed on the pan.
-
Page 18: Gravity Acceleration Correction
7-2. Gravity acceleration correction When the balance is first used or has been moved to a different place, it should be calibrated using a calibration weight. But if the calibration weight cannot be prepared, the gravity acceleration correction will compensate the balance. Change the gravity acceleration value of the balance to the value of the area where the balance will be used. -
Page 19: Functions
8. FUNCTIONS 8-1. Key operation Cancels the operation and turns off the balance. Item key Selects a class and an item. In the weighing mode, press and hold the key to enter the function setting mode. Enter key Proceeds to the selected class. Stores the settings per class and goes to the next class. -
Page 20: Setting Example
8-3. Setting example To set auto power-off function to “Enabled”, and the ACAI function to “Disabled”. 1. Press and hold the SAMPLE key to display Press and hold func func 2. Press the PRINT key. The balance displays poff 0 . poff 0 Each pressing 3. -
Page 21: Storing Weighing Units
8-4. Storing weighing units It is possible to store the weighing units that will be actually used from the units available. For the units available, see “5-3. Units”. Select and store the weighing units as described below: Press and hold 1. -
Page 22: Function List
8-5. Function list Param- Class Item Description eter func poff Auto power-off disabled Automatically power off Auto power-off Auto power-off enabled Cond Fast / sensitive Software filtering Response Slow / stable st-b Stable when within ± 0.5d/0.5s Conditions to turn on the Stability band Stable when within ±... - Page 23 Param- Class Item Description eter func aCai ACAI disabled If “0” is set, no additional samples ACAI function ACAI enabled required. Umin d = the minimum display division Minimum unit 1/10 d weight total sample weight ≥5d smpl 10 pcs The number of samples shown Sample number...
-
Page 24: Options
EJ-12 Carrying case EJ-13 Density Determination Kit for EJ-120 / EJ-200 / EJ-300 / EJ-410 / EJ-610 9-1. EJ-02 USB Interface EJ-02 cannot be used together with EJ-03. The EJ-02 is installed to the same slot as EJ-03 and see “9-2. EJ-03 RS-232C serial interface”. -
Page 25: Interface Specifications
4. Secure the EJ-02 with the screws supplied with the EJ-03. Connector inside the option slot. EJ-03 Interface specifications Transmission system EIA RS-232C Transmission form Asynchronous, bi-directional, half-duplex Data format Baud rate: 1200, 2400, 4800, 9600 bps Data: 7 bits + parity 1bit (even or odd) or 8 bits (non-parity) Start bit: 1 bit... -
Page 26: Data Format
Data format Header Data Unit Terminator (“ ” shows a space.) Separator There are four types of headers: ST : Stable weighing data (including % data) QT : Stable counting data US : Unstable weighing data (including count and %) OL : Out of weighing range (Over) The data is normally 9 digits including a decimal point and a sign. -
Page 27: Command Mode
Key mode Set the function “prt 1, 2 or 3”. When the PRINT key is pressed while the weighing data is stable (the STABLE indicator is on), the balance transmits the data. When the data is transmitted, the display will blink one time. Auto-print mode A Set the function “prt 2”. -
Page 28: Ej-08 Underhook
9-3. EJ-07 / EJ-08 Underhook By attaching the underhook to the bottom of the balance, large objects that are difficult to load on the weighing pan can be weighed, and the density (specific gravity) of objects may be measured. Refer to the “9-6. EJ-13 Density Determination Kit” for the information about the density measurement. -
Page 29: Density Determination Kit
9-6. EJ-13 Density Determination Kit Using this option and calculation Fixing frame Weighing pan program, the balance can determine the density (specific gravity) of a sample. EJ-13 Installation Push the fixing frame out, and remove the weighing pan. Attach the beaker stand to the balance and fit the pan stand to the pan support of the balance. - Page 30 Change the function table Selecting a way to set the density of a liquid Select the liquid density input method from the function table below. The function table is available only when the density measurement mode is selected. Param- Class Item Description eter...
- Page 31 2. Place a sample on the upper pan. 3. Wait for the STABLE indicator to be displayed 20. 0 0 and press the SAMPLE key to store the weight in air. Measuring weight in water. 4. The display shows that blinks and the 20.
-
Page 32: Id Number And Glp
10. ID NUMBER AND GLP The ID number is used to identify the balance when Good Laboratory Practice (GLP) is used. The ID number is held in memory even if power to the balance is switched off. The following GLP data is transmitted to a printer or a computer using the optional RS-232C interface. -
Page 33: Output Example
10-2. Output example To print the GLP report, set the function “info 1” and use MODE 3 of the printer AD-8121B. To output the GLP report to a personal computer, set the function “info 2”. Data format for “calibration report” Perform calibration using a weight. -
Page 34: Calibration Test Using A Weight
“Title block” and “End block” When a weight value is recorded as the GLP data, “Title block” and “End block” are added at a group of weight values in the GLP report. To output the GLP report to the printer AD-8121B , use MODE 3 of it. 1. - Page 35 CC 0 2. CC 0 is displayed. 3. If necessary to change the weight value to check, press the SAMPLE key and change the weight value using the following keys. SAMPLE key To select the digit blinking to change. RE-ZERO key To set the value of the digit selected.
-
Page 36: Maintenance
Wind shield Raised portion Fixing frame Pan support Pan support EJ-120 / EJ-200 / EJ-300 EJ-1500 / EJ-2000 / EJ-3000 EJ-410 / EJ-610 EJ-4100 / EJ-6100 11-2. Error codes Overload error Warning to indicate that an object beyond the balance eeeeee capacity has been placed on the pan. - Page 37 the unit weight. Note: Pressing the PRINT key without adding 50 - samples may reduce counting accuracy. Starting from the 100 samples, 100 - be displayed when the sample weight is light. 100 - This is for your notice and press the PRINT key without adding any samples.
-
Page 38: Specifications
12. SPECIFICATIONS 12-1. EJ series MODEL EJ-120 EJ-200 EJ-300 EJ-410 EJ-610 Weight capacity 120 g 210 g 310 g 410 g 610 g Min. display “d” 0.01 g 0.01 g 0.01 g 0.01 g 0.01 g Repeatability 0.01 g 0.01 g 0.01 g... -
Page 39: Other Weighing Units
12-2. Other weighing units MODEL EJ-120 EJ-200 EJ-300 EJ-410 EJ-610 Capacity 4.233 7.408 10.935 14.462 21.517 Min. display 0.001 0.001 0.001 0.001 0.001 Capacity 0.2646 0.4630 0.6834 0.9039 1.3448 Min. display 0.0001 0.0001 0.0001 0.0001 0.0001 Capacity 3.858 6.752 9.967 13.182... -
Page 40: Options
Underhook for EJ-1500 / EJ-2000 EJ-11 Breeze break EJ-12 Carrying case EJ-13 Density Determination Kit for EJ-120 / EJ-200 / EJ-300 / EJ-410 / EJ-610 12-4. Dimensions Min. 59 Min. 59 φ115 EJ-120 / EJ-200 / EJ-300 EJ-1500 / EJ-2000 / EJ-3000... -
Page 41: Gravity Acceleration Map
GRAVITY ACCELERATION MAP Values of gravity at various locations Amsterdam 9.813 m/s Manila 9.784 m/s Athens 9.807 m/s Melbourne 9.800 m/s Auckland NZ 9.799 m/s Mexico City 9.779 m/s Bangkok 9.783 m/s Milan 9.806 m/s Birmingham 9.813 m/s New York 9.802 m/s Brussels 9.811 m/s... - Page 42 World map...
