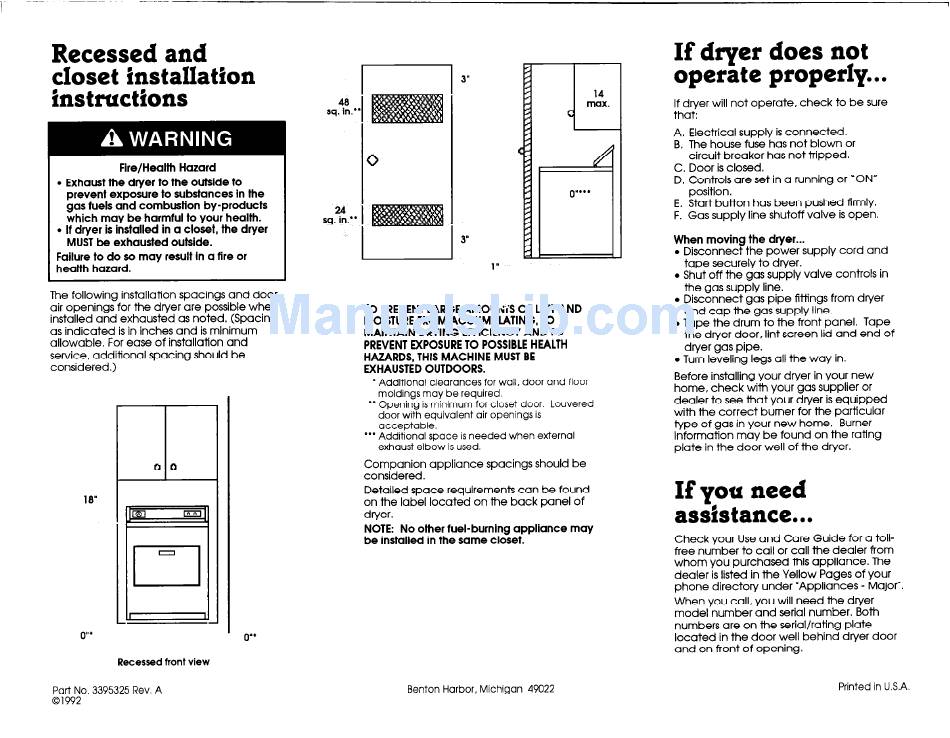

1
Recessed and
closet installation
instructions
Fire/Health
Hazard
l
Exhaust the dryer to the outside to
prevent
exposure
to substances
in the
gas fuels and combustion
by-products
which may be harmful to your health.
l
if dryer is installed
in a closet, the dryer
MUST be exhausted
outside.
Failure to do so may result in a tire or
health hazard.
The following
installation
spacings
and door
air openings
for the dryer are possible when
installed
and exhausted
as noted.
(Spacing
as indicated
is in inches and is minimum
allowable.
For ease of installation
and
service,
additional
spacing
should be
considered.)
48
sq. in.*
24
sq. in."
0
1 II
TO PREVENT LARGE AMOlKiS
OF LINT AND
MOISTURE FROM ACCUMULATING,
TO
MAINTAIN DRYING EFFICIENCY AND TO
PREVENT EXPOSURE TO POSSIBLE HEALTH
HAZARDS, THIS MACHINE MUST BE
EXHAUSTED OUTDOORS.
l
Additional clearances for wall, door and floor
moldings may be required.
" Opening
is minimum
for closet door.
Louvered
door with equivalent
air openings
is
acceptable.
l
** Additional
space
is needed
when external
exhaust
elbow
is used.
Companion
appliance
spacings
should be
considered.
Detailed
space
requirements
can be found
on the label located
on the back panel of
dryer.
NOTE: No other fuel-burning
appliance
may
be installed
in the same closet.
If dryer does not
operate properly...
If dryer will not operate,
check
to be sure
that:
A. Electrical
supply is connected.
B. The house fuse has not blown or
circuit breaker
has not tripped.
C. Door is closed.
D. Controls are set in a running or 'ON"
position.
E. Start button
has been pushed
firmly.
F. Gas supply line shutoff valve
is open.
When moving
the dryer...
l
Disconnect
the power supply cord and
tape securely
to dryer.
l
Shut off the gas supply valve controls
in
the gas supply line.
l
Disconnect
gas pipe fittings from dryer
and cap the gas supply line.
l
Tape the drum to the front panel.
Tape
the dryer door, lint screen lid and end of
dryer gas pipe.
l
Turn leveling
legs all the way in.
Before installing
your dryer in your new
home, check
with your gas supplier
or
dealer
to see that your dryer is equipped
with the correct
burner for the particular
type of gas in your new home.
Burner
information
may be found on the rating
plate in the door well of the dryer.
If you need
assistance...
Check
your Use and Care Guide for a toll-
free number
to call or call the dealer
from
whom you purchased
this appliance.
The
dealer
is listed in the Yellow Pages of your
phone
directory
under 'Appliances
- Major".
When you call, you will need the dryer
model
number
and serial number.
Both
numbers
are on the serial/rating
plate
located
in the door well behind
dryer door
and on front of opening.
Recessed
front view
Part No. 3395325 Rev. A
01992
Benton Harbor,
Michigan
49022
Printed in U.S.A.
