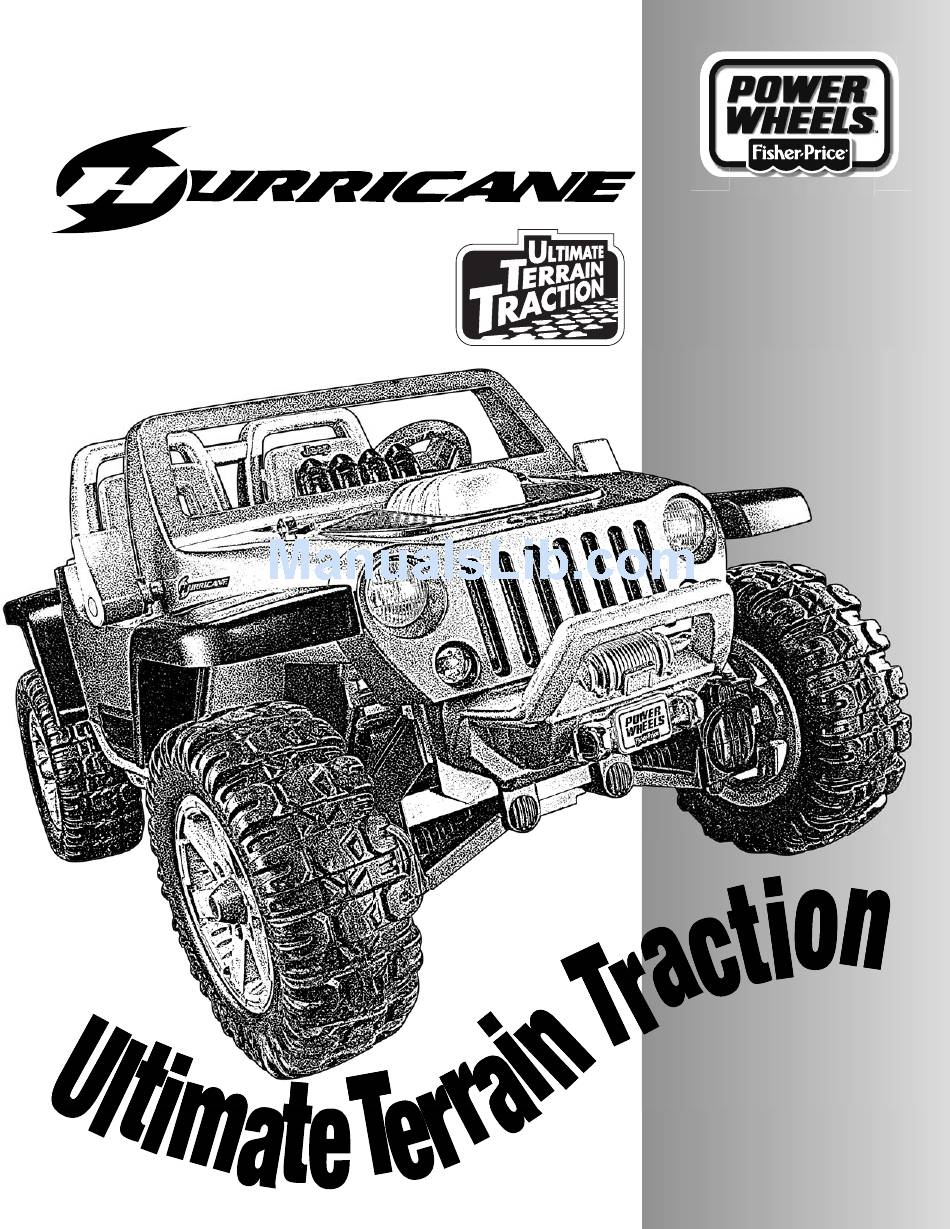

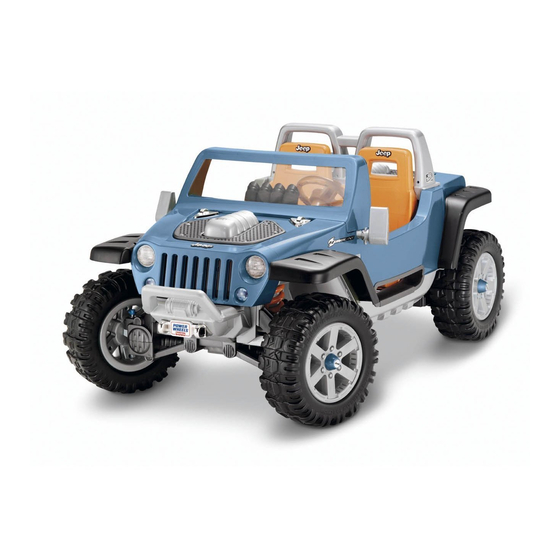

Fisher-Price J4394 Owner's Manual With Assembly Instructions

Ultimate terrain traction

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

Jeep

• Please read this manual

and save it with your original

sales receipt.

• Tools needed for assembly:

Phillips Screwdriver and Safety

Scissors (both not included).

• Use only with the included

Power Wheels

® ®

12 Volt Lead-

Acid, Rechargeable, orange

Battery with Built-in Thermal

Fuse and a Power Wheels

12 Volt Charger with type 12V

connector (both included).

• Requires four "C" (LR14)

alkaline

alkaline batteries for

batteries for

FM Radio/Digital Clock

operation (not included).

Owner's Manual

with Assembly Instructions

For Models J4394 and K7112

® ®

Table of Contents

Need help?

Do you have a question about the J4394 and is the answer not in the manual?

Questions and answers

Summary of Contents for Fisher-Price J4394

Page 1 (both included). • Requires four "C" (LR14) • Requires four "C" (LR14) alkaline alkaline batteries for batteries for FM Radio/Digital Clock FM Radio/Digital Clock operation (not included). operation (not included). Owner's Manual with Assembly Instructions For Models J4394 and K7112...
Page 2: Table Of Contents
• Use this vehicle ONLY outdoors. Most interior flooring can be damaged by riding this vehicle indoors. Fisher-Price responsible for damage to the floor if the vehicle is used indoors. • To prevent damaging the motors and gears, teach your child to stop the vehicle before switching direction.
Page 3: Warnings And Cautions
ELECTRICAL HAZARD • Battery can fall out and injure a child if vehicle tips over. Always use battery retainer. • PREVENT FIRE - Never modify the electrical system. Alterations could cause a fire resulting in serious injury and could also ruin the electrical system. - Use of the wrong type battery or charger could cause a fire or explosion resulting in serious injury.
Page 4: Parts
• If you experience a problem with this product, or are missing a part, please call us at 1-800-348-0751, rather than return this product to the store. • Please identify all parts before assembly and save all packaging material until assembly is complete to ensure that no parts are discarded. •...
Page 5 Steering Wheel Rear Grille Rear Axle 2 Wheel 4 Front Retainers Axle Caps Part Not Shown: Label Sheet - 2 Note: Tighten and loosen all screws with a Phillips screwdriver. Do not over-tighten the screws. Steering Wheel Cap Steering Column Steering Column Cap 12 Volt Charger...
Page 6: Parts Picture
Note: Some parts shown are assembled to both sides of the vehicle. Vehicle Front Grille Brush Guard Rear Clip Rear Bumper Rear Wheel - 2 Front Wheel - 2 Seat PARTS PICTURE Seat Bar Steering Column Rear Grille Taillights - 2 Fender - 4 Wheel Retainer - 2 Side Mirror - 2...
Page 7: Battery Charging
ELECTRICAL HAZARD WARNING • Battery can fall out and injure a child if vehicle tips over. Always use battery retainer. • PREVENT FIRE - Never modify the electrical system. Alterations could cause a fire resulting in serious injury and could also ruin the electrical system.
Page 8: Assembly
Orange Battery Charger Connector • Plug the charger connector into the battery • Plug the charger into a standard wall outlet Notes: - Use the charger only in a wall outlet. Do not plug the charger into a ceiling outlet. - If power flow to the wall outlet is controlled by a switch, make sure the switch is “ON”.
Page 9: Top View
Rear Clip • Fit the rear clip onto the rear end of the vehicle and over the rear bumper. • Make sure the tabs on each side of the rear clip fit into the sides of the vehicle. • “Snap” the sides of the rear bumper into the openings on each side of the rear clip.
Page 10 Taillights • “Snap” both taillights to the rear clip. Short Seat Belt Seat Long Seat Belt • Insert the fastener end of a short seat belt strap through the slot near the outer edge of the seat. Make sure the side of the seat belt with the fastener faces the outer edge of the seat.
Page 11: Inside View
TOP VIEW TOP VIEW TOP VIEW Note: The seat is adjustable and has three positions. You can move the seat back as your child grows. • Insert the tabs on the front edge of the seat into one of the sets of slots inside the vehicle.
Page 12: Front View
Front Grille • Fit the front grille to the grooves in the top of the brush guard, as shown. • Inset three screws through the front grille and into the brush guard. Tighten the screws. FRONT VIEW • Fit the front grille assembly to the vehicle. •...
Page 13: Front Bottom View
Steering Column INSIDE VIEW • Wipe the steering column with a paper towel to remove any excess lubricant. • Insert the curved end of the steering column down through the opening in the dash and then down through the hole in the vehicle floor.
Page 14 Wheel Well Fender • Insert a screw through each wheel well and into each fender. Tighten the screws. Front Axle Slot Front Axle • Turn both front axles torward the front end of the vehicle until they drop into the axle slots. Front Axle Post...
Page 15: Rear & Bottom View
Front Axle Cap • Fit a front axle cap onto the end of the front axle. • Insert a screw through the large opening in the front axle cap and the hole in the front axle. Tighten the screw. • Repeat this procedure to attach the other front wheel to the other front axle.
Page 16 • Fit a wheel retainer onto the end of the rear axle. • Insert a screw through the large opening in the wheel retainer and the hole in the rear axle. Tighten the screw. • Push the axle into the wheel as far as it will go. •...
Page 17 Steering Wheel Cap • Fit the steering wheel cap onto the center of the steering wheel. • Insert two screws into the steering wheel cap and tighten. • Pull up on the steering wheel to be sure it is assembled correctly. If you can remove the steering wheel, you have not inserted the pin properly.
Page 18 • “Snap” the key into the dash. • Using safety scissors, cut the plastic tie holding the hood in place. • Locate the simulated equalizer on the dash. • Loosen two screws in the simulated equalizer and remove it. • Insert four “C” (LR14) alkaline batteries. Hint: We recommend using alkaline batteries for longer battery life.
Page 19: Decoration
DECORATION • Before applying the labels, wipe the surface of the vehicle with a clean, dry cloth to remove any dust or oils. • Place the labels exactly as shown in the illustrations. For best results, avoid repositioning a label once it has been applied to the vehicle. •...
Page 20 BACK VIEW SIDE VIEW J4394pr-0921...
Page 21: Battery Installation
IMPORTANT! Use only a Power Wheels ® 12 volt orange lead-acid rechargeable battery with built-in thermal fuse. Use of any other battery will damage your vehicle. Make sure that you charge the battery for at least 18 hours using the enclosed Power Wheels volt charger before operating your vehicle for the first time.
Page 22: Battery Care And Disposal
BATTERY CARE AND DISPOSAL Care If a battery leak develops, avoid contact with the leaking acid and place the damaged battery in a plastic bag. See information below for proper disposal. If acid comes in contact with skin or eyes, flush with cool water for at least 15 minutes and call a physician.
Page 23: Safe Driving Rules
RIDING HAZARD WARNING • Prevent Injuries and Deaths • Direct Adult Supervision Required. • Never Ride at Night. • Keep Children Within Safe Riding Areas. These areas must be: - away from swimming pools and other bodies of water to prevent drownings - generally level to prevent tipovers - away from steps, steep inclines, cars, roads and alleys.
Page 24: Vehicle Operation
As assembled, your vehicle is ready to roll in low speed (2 understands the rules for safe driving, it’s time to remove the high speed lock-out screw to allow the vehicle to operate in low or high speed. See the instructions on this page to remove the high speed lock-out screw. Low Speed •...
Page 25: Charge Indicator
CHARGE INDICATOR 12 VOLT BATTERY CHARGE INDICATOR • Press the 12 volt battery charge indicator button to check the power level of your battery: All four lights means the 12 volt battery is 100% (fully) charged. Three lights means the 12 volt battery is 75% (mostly) charged. Two lights means the 12 volt battery is 50% charged.
Page 26 FM RADIO/DIGITAL CLOCK USE Minute Adjust Hour Adjust Scan Scan Reset Power/Volume • Press the power button to turn on or off. • Turn the volume dial to adjust to a comfortable listening level. Hint: The FM Radio will turn off automatically after several minutes of non-use. FM Radio •...
Page 27: Problems And Solutions Guide
PROBLEMS AND SOLUTIONS IMPORTANT! If you experience a problem with your vehicle, first check the Problems and Solutions Guide below. If you still experience a problem, please contact Power Wheels Consumer Relations, toll-free at 1-800-348-0751 between 9 AM - 7 PM (EST) Monday through Friday ®...
Page 28 PROBLEM POSSIBLE CAUSE Vehicle was running but Loose wire or loose connectors suddenly stopped Tripped thermal fuse Short run time (Less than Undercharged battery 1 - 3 hours per charge) Overcharged battery Battery is old and will not accept full charge Tripped thermal fuse SOLUTION Check all wires and connectors.
Page 29 PROBLEM POSSIBLE CAUSE Vehicle runs sluggishly Undercharged battery Battery needs charging Battery is old and will not accept full charge Vehicle is overloaded Driving conditions are too stressful Vehicle runs in low speed, but High speed lock-out not disconnected does not run in high speed. Please note: The vehicle is designed to operate in low speed only in reverse...
Page 30 PROBLEM POSSIBLE CAUSE Loud clacking or grinding noise Broken gears from a motor-gearbox Charger gets warm during use It is normal for some chargers to get warm during use and is not reason for concern. Battery makes a sizzling or It is normal for some batteries to make gurgling noise when charging noise and swell slightly while charging...
Page 31: Fcc Statement
FCC STATEMENT (United States Only) This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
Page 32 Jeep and the Jeep grille design are registered trademarks of DaimlerChrysler Corporation. ® Jeep Hurricane and its trade dress are used under license from DaimlerChrysler. ©DaimlerChrysler Corporation 2006 ® Fisher-Price, Inc., a subsidiary of Mattel, Inc., East Aurora, New York 14052 U.S.A. PRINTED IN MEXICO PRINTED IN CHINA 18 hours! is not used or stored.
