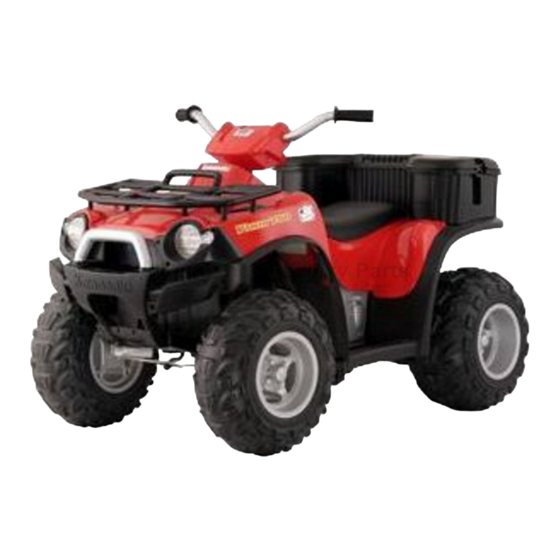

Summary of Contents for Fisher-Price POWER WHEELS Kawasaki BRUTE FORCE ULTIMATE TERRAIN TRACTION
- Page 1 This Owner's Manual is provided and hosted by Appliance Factory Parts. FISHER PRICE J5248 Owner's Manual Shop genuine replacement parts for FISHER PRICE J5248 Find Your FISHER PRICE Ride On Parts - Select From 999 Models -------- Manual continues below --------...
- Page 2 • Please read this manual • Please read this manual and save it with your original and save it with your original sales receipt. sales receipt. • Tool needed for assembly: Phillips Screwdriver (not included). ® ® • Use only with a Power Wheels 12 Volt Lead-Acid Rechargeable Battery and a Power Wheels ®...
-
Page 3: Table Of Contents
1-800-348-0751. • Use this vehicle ONLY outdoors. Most interior flooring can be • To register your vehicle, please visit us on-line at damaged by riding this vehicle indoors. Fisher-Price ® will not be www.powerwheels.com. responsible for damage to the floor if the vehicle is used indoors. -
Page 4: Warnings And Cautions
ELECTRICAL HAZARD WARNING • Battery can fall out and injure a child if vehicle tips over. Always use battery retainer. • PREVENT FIRE - Never modify the electrical system. Alterations could cause a fire resulting in serious injury and could also ruin the electrical system. - Use of the wrong type battery or charger could cause a fire or explosion resulting in serious injury. -
Page 5: Parts
PARTS • If you experience a problem with this product, or are missing a part, please call us at 1-800-348-0751, rather than return this product to the store. • Please identify all parts before assembly and save all packaging material until assembly is complete to ensure that no parts are discarded. •... -
Page 6: Parts Picture
PARTS PICTURE Vehicle Steering Column Cap Parts Not Shown Label Sheet Handlebar Front End #8 x 2" Screw - 2 Seat 12 Volt Charger " #8 x Screw - 13 12 Volt Battery Clip " #8 x Washer - 2 Base Plate #10 x 1"... -
Page 7: Battery Charging
BATTERY CHARGING ELECTRICAL HAZARD WARNING CAUTION • Battery can fall out and injure a child if Use the charger in dry locations only. vehicle tips over. Always use battery retainer. • PREVENT FIRE About Thermal Fuses - Never modify the electrical system. Your Power Wheels ®... -
Page 8: Assembly
ASSEMBLY WARNING Children can be harmed by small parts, sharp edges and sharp points in the vehicle's unassembled state, or by electrical items. Care should be taken in unpacking and Battery assembly of the vehicle. Children should not handle parts, including the battery, or help in assembly of the vehicle. - Page 9 Front End Slot #8 x " Screw • Fit another #8 x " screw through the hole shown in the front end and into the vehicle. Tighten the screw. Hint: You may need to adjust the front end to align the holes. Base Plate Steering Linkage •...
- Page 10 Steering Column Cap BOTTOM VIEW • While holding the handlebar in place, carefully turn the vehicle over. • Make sure the end of the steering column is through the hole in the • Fit a " washer onto the #8 x 2" screws. steering linkage.
-
Page 11: Decoration
DECORATION • Before applying the labels, wipe the surface of the vehicle with a clean, dry cloth to remove any dust or oils. • Place the labels exactly as shown in the illustrations. For best results, avoid repositioning a label once it has been applied to the vehicle. -
Page 12: Battery Installation
BATTERY INSTALLATION IMPORTANT! Use only a Power Wheels ® 12 volt lead-acid rechargeable battery. Use of any other battery will damage your vehicle. Make sure that you charge the battery for at least 18 hours Battery Retainer using the enclosed Power Wheels 12 volt charger before operating ®... -
Page 13: Battery Care And Disposal
BATTERY CARE AND DISPOSAL Disposal Care If a battery leak develops, avoid contact with the leaking acid and • Your Power Wheels ® battery is a non-spillable, sealed lead-acid place the damaged battery in a plastic bag. See information below battery. -
Page 14: Safe Driving Rules
SAFE DRIVING RULES Teach Safety Rules to Children RIDING HAZARD While children can quickly develop the skill necessary to drive this vehicle, it is important to remember that their judgment skills are still WARNING very immature. Unsupervised driving by children can lead to serious injury. -
Page 15: Vehicle Operation
VEHICLE OPERATION As assembled, your vehicle is ready to roll in low speed (2 mph, maximum). It has been pre-set so it will only operate in low speed. After your child has mastered the basic skills of driving and understands the rules for safe driving, it’s time to remove the high speed lock-out screw to allow the vehicle to operate in low or high speed. -
Page 16: Vehicle Care
CHARGE INDICATOR VEHICLE CARE • Check all screws, cap nuts and their protective coverings regularly and tighten as required. Check plastic parts on a regular basis for cracks or broken pieces. • During snowy or rainy weather, the vehicle should be stored inside or under a protective cover. -
Page 17: Problems And Solutions Guide
PROBLEMS AND SOLUTIONS IMPORTANT! If you experience a problem with your vehicle, first check the Problems and Solutions Guide below. If you still experience a problem, please contact Power Wheels ® Consumer Relations, toll-free at 1-800-348-0751 between 9 AM - 7 PM (EST) Monday through Friday and 11 AM - 5 PM (EST) Saturday. - Page 18 PROBLEM POSSIBLE CAUSE SOLUTION Short run time (Less than Undercharged battery Charge the battery. A new battery should have been charged for at 1 - 3 hours per charge) least 18 hours before using the vehicle for the first time. After first- time use, recharge the battery for at least 14 hours after each use.
- Page 19 PROBLEM POSSIBLE CAUSE SOLUTION Vehicle runs in low speed, but High speed lock-out not disconnected. The vehicle was pre-set to run only in low speed. To allow the does not run in high speed. vehicle to run in low and high speed, you must disconnect the High Speed Lock-Out.
-
Page 20: Fcc Statement
FCC STATEMENT LIMITED WARRANTY (United States Only) Bumper-to-Bumper* This equipment has been tested and found to comply with the limits Limited Warranty for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against One year limited warranty from the date of purchase harmful interference in a residential installation. - Page 21 For the location nearest you, visit us on-line at www.powerwheels.com. Fisher-Price and Power Wheels are U.S. trademarks of Mattel, Inc. Fisher-Price, Inc., a subsidiary of Mattel, Inc., East Aurora, New York 14052 U.S.A. ©2006 Mattel, Inc. All Rights Reserved. PRINTED IN MEXICO...
