- Page 1 This Owner's Manual is provided and hosted by Appliance Factory Parts. FISHER PRICE 78457 Owner's Manual Shop genuine replacement parts for FISHER PRICE 78457 Find Your FISHER PRICE Ride On Parts - Select From 999 Models -------- Manual continues below --------...

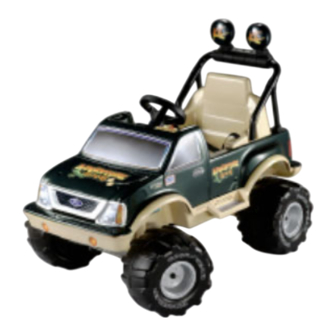

- Page 2 ® Product features and decoration may vary from the picture above. Ford, F-150 and associated trademarks used under license from Ford Motor Company. Goodyear (and winged foot design) and Wrangler (for tires) are trademarks of The Goodyear Tire & Rubber Company, used with permission. Fisher Price, Power Wheels and Power Stick are U.S.
-
Page 3: Table Of Contents
Table of Contents Important Information ..............2 Warnings and Cautions . -
Page 4: Electrical Hazard
Warnings and Cautions ELECTRICAL HAZARD WARNING • Battery can fall out and injure a child if vehicle tips over. Always use battery clamp. • PREVENT FIRE - Never modify the electrical system. Alterations could cause a fire resulting in serious injury and could also ruin the electrical system. -
Page 5: Parts
Parts • If you experience a problem with this product, or are missing a part, please call us at 1-800-348-0751, rather than return this product to the store. • Please identify all parts before assembly and save all packaging material until assembly is complete to ensure that no parts are discarded. - Page 6 Parts Hood Seat Vehicle Body KC™ Light Rack, Rear Tailgate KC™ Light Rack, Front Knob Light Cover – 2 Steering Wheel Steering Column Part Not Shown: Label Sheet #6 x 1 " Screw – 2 .354 Cap Nut – 2* #8 x 1"...
-
Page 7: Parts Diagram
Parts Diagram Note: Some parts shown are assembled on both sides of the vehicle. Parts Hood Left Taillight Sport Bar Microphone Right Taillight KC™ Light Rack, Front Steering Column Vehicle Body KC™ Light Rack, Rear Steering Wheel Grille Light Cover - 2 Steering Wheel Cap 6 Volt Battery Parts Not Shown:... -
Page 8: Battery Charging
Battery Charging ELECTRICAL HAZARD CAUTION WARNING Use the charger in dry locations only. • Battery can fall out and injure a About Thermal Fuses child if vehicle tips over. Always use Your Power Wheels ® battery is equipped with a built-in battery clamp. - Page 9 Battery Charging A-Style Charger Connector A-Style Battery Connector NO GAP Incorrect Correct • Plug the charger into a standard 120 volt wall outlet. • Plug the charger and battery connectors together. Push firmly to make sure the two connectors are Note: If power flow to the wall outlet is controlled by a completely joined.
-
Page 10: Assembly
Assembly Battery Tips WARNING • Do not mix old and new batteries. • Do not mix different types of batteries: alkaline, standard Children can be harmed by small parts, (carbon-zinc) or rechargeable (nickel-cadmium). sharp edges and sharp points in the vehi- •... -
Page 11: Bottom View
Assembly Tabs “T” End Slot Knob Dash Cover Microphone • Position the dash cover as shown. Make sure the three tabs are upright. Hole • Fit the knob into the hole in the right side of the “T” End dash cover. •... - Page 12 Assembly Hole Steering Wheel Steering Column Cap Nut Front Axle Steering Column “UP” Bottom View • Fit the curved end of the steering column into the hole in • Hold the steering column in place and gently lower the the front axle. vehicle body.
- Page 13 Assembly Seat Belt Straps Second T-tab First Position Bottom T-tab Second Second PUSH T-tab Position HERE Slot Seat • Make sure the two seat belt straps are fastened together. If they are not fastened together, connect the fasteners to form one seat belt. •...
- Page 14 Assembly Light Rack - Rear ™ Tabs #6 x 1 " Screws Center Hole Sport Bar Light Rack - ™ Front • Position the sport bar with the ends on a flat surface, as shown. Holes • Fit and hold the front and back halves of the KC ™...
- Page 15 Assembly Sport Bar Sport Bar PUSH HERE Sport Bar Bracket Sport Bar Support PULL UP HERE • Using safety scissors, remove the sport bar brackets from the plastic connector. Dispose of the plastic connector. • Push down firmly on one side of the sport bar while pulling up on the side fender to secure the sport bar in •...
- Page 16 Assembly Right Taillight Lens Left Taillight Lens Slots Left Right Inner Holes Outer Rear Front • Using safety scissors, remove the taillight lenses from Hole Bumper Bumper the plastic connector. Dispose of the plastic connector. • Face the rear of the vehicle. •...
- Page 17 Assembly Top Tabs Side Tab Hood Pegs Side Tab Bottom Openings Tabs Grille • Face the front of the vehicle. • Insert the two tabs at the top of the grille into the slots in Note: If you have already charged your Power Wheels ®...
-
Page 18: Back View
Label Decoration Proper label application will help to keep the labels looking their best! When applying labels, keep the following guidelines in mind: • Wash your hands before applying the labels. • Before applying the labels, wipe the surface of the vehicle with a clean, dry cloth to remove any dust or oils. -
Page 19: Battery Installation
Battery Installation IMPORTANT! Use only a Power Wheels ® 6 volt battery Battery Connector with A-style connector and built-in thermal fuse. Use of any other battery can damage your vehicle. Make sure that you charge the battery for at least 18 hours using the enclosed Power Wheels ®... -
Page 20: Battery Care And Disposal
Battery Care and Disposal Care Disposal If a battery leak develops, avoid contact with the leaking • Your Power Wheels ® battery is a sealed lead-acid acid and place the damaged battery in a plastic bag. See battery. It must be recycled or disposed of in an environ- information below for proper disposal. -
Page 21: Riding Rules
Rules for Safe Driving RIDING HAZARD WARNING Prevent Injuries and Deaths • Direct Adult Supervision Required • Keep Children Within Safe Riding Areas These areas must be: Use vehicle on generally level ground ONLY! - away from swimming pools and other bodies of water to prevent drownings 7. -
Page 22: How To Operate Your Vehicle
How to Operate Your Vehicle To Drive To Back Up Note: To avoid damaging the motors and gears, stop • Make sure the Power Stick™ shifter is in the forward the vehicle before shifting from forward to reverse position • Press down on the foot pedal . -
Page 23: Caring For Your Vehicle
Caring For Your Vehicle • Check all screws, cap nuts and their protective coverings • The vehicle can be wiped down with a soft, dry cloth. regularly and tighten as required. Check plastic parts on For a shiny finish, you can wipe plastic parts with a a regular basis for cracks or broken pieces. -
Page 24: M Statement Of Limited Warranty
Bumper - to - Bumper* Limited Warranty *One year limited warranty from date of purchase on Power Wheels ® vehicle. Six month limited warranty on 6 volt battery. For the original purchaser, this one year limited warranty covers the Power Wheels ®... -
Page 25: Problems And Solutions Guide
Problems and Solutions Guide IMPORTANT! If you experience a problem with your vehicle, first check the Problems and Solutions Guide below. If you still experience a problem, please contact Power Wheels ® Consumer Relations, toll-free at 1-800-348-0751 between 8 AM and 6 PM (EST) Monday through Friday. Or, contact your local Power Wheels authorized service center. - Page 26 Problems and Solutions Guide Problem Possible Cause Solution Vehicle was running but Loose wire or loose connectors Check all wires and connectors. Make sure the battery suddenly stopped connector is tightly plugged into the motor harness connector, and that there are no loose wires around the motor.
- Page 27 Problems and Solutions Guide Problem Possible Cause Solution Vehicle runs sluggishly (cont.) Battery is old and will not accept Even with proper care, rechargeable batteries do not last full charge forever. Average battery life is 1 to 3 years depending on the vehicle use and use conditions.
-
Page 28: Authorized Service Centers
Authorized Service Centers We are continually expanding our Authorized Service Center Network. Please check this list- ing for the Authorized Service Center nearest you. If there is not one in your area, please call Power Wheels ® Consumer Relations at 1-800-348-0751. ALABAMA SKY FOREST - Sky Forest Electrical, 26870 Highway 18, POMPANO BEACH - Authorized Appliance, 2171 North... - Page 29 Authorized Service Centers ROCKFORD - Sun Appliance Sales & Service, 3112 N. METAIRIE - Le Jouet Inc., 1700 Airline Hwy, 70001, MINNESOTA Rockton Avenue, 61103, (815) 964-3866 (504) 837-0533 BLAINE - Barness #1, 8701 Central Ave. NE, 55434, SPRINGFIELD - Rexx Battery Co. Inc., 2505 South Grand MORGAN CITY - Sam's Sales &...
- Page 30 Authorized Service Centers TOMS RIVER - South Jersey TV Service, 1171 Fischer NORTH DAKOTA PITTSBURGH - Ferry Electric Service Co., 140 Clairton Road, 08753, (732) 506-9400 Blvd., 15236, (412) 653-6004 FARGO - General Parts & Supply Co., 10 S. 18th Street, TRENTON - Tattersall Inc.
- Page 31 Authorized Service Centers FT. WORTH - Ft. Worth Shaver and Appliance, UTAH WEST VIRGINIA 1012 West 7th Street, 76102, (817) 335-9970 OREM - The Mending Shed, 1735 South State Street, BECKLEY - Jerry’s Detectors, Vacuum & Appl., HOUSTON - Brand Appliance Service Center, 84058, (801) 225-8012, (800) 339-9297 411 Second Street, 25801, (304) 253-3521 1970 FM 1960 W, 77090, (281) 537-7795...
-
Page 33: Consumer Relations
Authorized Service Center list in this manual. Fisher-Price and Power Wheels by Fisher-Price are U.S. trademarks of Mattel, Inc. Fisher-Price, Inc., a subsidiary of Mattel, Inc., East Aurora, New York 14052 U.S.A. ©2000 Mattel, Inc. All Rights Reserved. Printed in the U.S.A.
