" Sony Color CCD
1
3
6mm lens
53° viewing angle
Up to 100' (30m) range
Note: Model numbers that end with "Q" or that have a round green "Q" sticker signify RoHS-compliant products.
36 IR LED

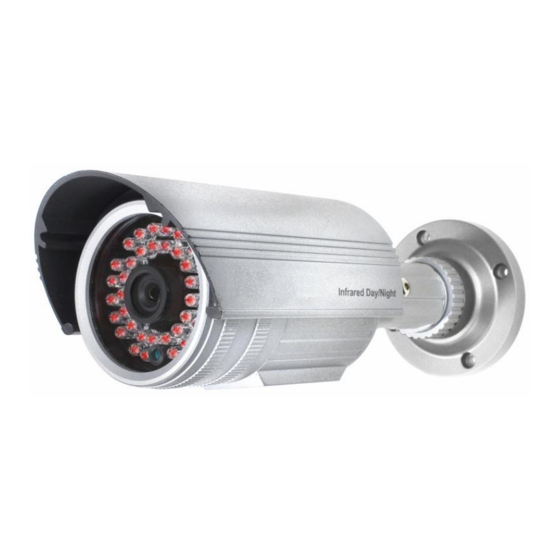

Day/Night Bullet Camera
EV-1146-N6SQ
EV-1646-N6SQ
Manual
480 TV Lines
600 TV Lines
Weatherproof (IP66) construction
Concealed wiring for added security
Split glass design eliminates IR
reflection.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for SECO-LARM EV-1146-N6SQ
Summary of Contents for SECO-LARM EV-1146-N6SQ
- Page 1 36 IR LED Day/Night Bullet Camera Manual EV-1146-N6SQ 480 TV Lines 600 TV Lines EV-1646-N6SQ ” Sony Color CCD Weatherproof (IP66) construction 6mm lens Concealed wiring for added security 53° viewing angle Split glass design eliminates IR Up to 100’ (30m) range reflection.
-
Page 2: Specifications
SECO-LARM 36 IR LED Day/Night Bullet Cameras Specifications: EV-1146-N6SQ EV-1646-N6SQ Type IR bullet camera ” Sony Super HAD 600 TV lines Resolution 480 TV lines Pickup elements 510x492 pixels 768x494 pixels Sync Internal Video output 1.0Vp-p composite video, 75Ω Video output format... - Page 3 SECO-LARM 36 IR LED Day/Night Bullet Cameras Overview: Adjustment screw Adjustment ring Adjustment screw Sunshield Adjustment screw Female BNC connector Important: Do not cut DC jack or female IR LEDs BNC connector as warranty Mounting screw will be voided. Camera base Important: Do not remove label or open case as warranty will be voided.
-
Page 4: Troubleshooting
SECO-LARM 36 IR LED Day/Night Bullet Cameras Troubleshooting: Check that the camera is powered up. Check that the power supply’s polarity is correct. The screen is blank. Check that the monitor is powered up. Check that the video cable connecting the camera to the monitor is connected properly.
