SECO-LARM Enforcer E-37EV Manual

SECO-LARM Enforcer E-37EV Manual

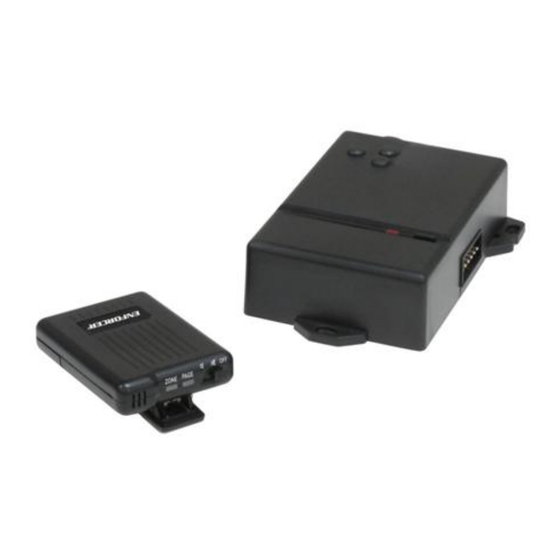

Alarm pager system
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
 Monitors up to three zones per
premises or vehicle, plus
manual paging.
 One positive and two negative
instant trigger inputs.
 Low-battery indicator.
 Red LED transmission indicator.
NOTE: Antenna required. See page 3 for more details. Antenna not included.

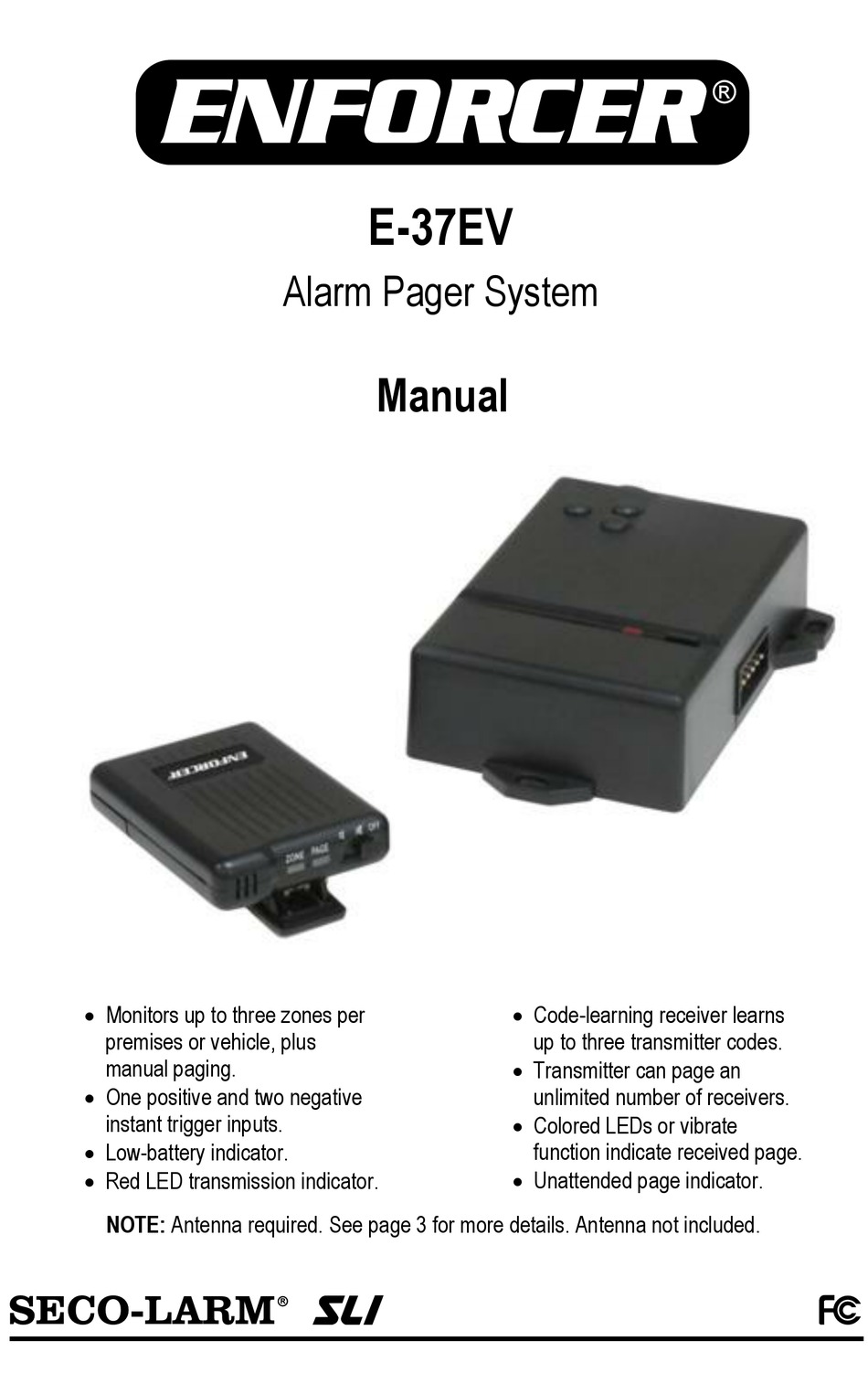

E-37EV
Alarm Pager System
Manual
 Code-learning receiver learns
up to three transmitter codes.
 Transmitter can page an
unlimited number of receivers.
 Colored LEDs or vibrate
function indicate received page.
 Unattended page indicator.

Advertisement

Table of Contents
loading

Related Manuals for SECO-LARM Enforcer E-37EV

Summary of Contents for SECO-LARM Enforcer E-37EV

  • Page 1 E-37EV Alarm Pager System Manual  Monitors up to three zones per  Code-learning receiver learns premises or vehicle, plus up to three transmitter codes. manual paging.  Transmitter can page an  One positive and two negative unlimited number of receivers. instant trigger inputs.

  • Page 2: Table Of Contents

    ENFORCER E-37EV Alarm Pager System Table of Contents Introduction ......................... 2 Parts List ..........................2 Dimensions ........................2 Specifications ........................3 Installation ........................3-4 Wiring ..........................4 Connection Diagram ......................5 Programming ........................5 Audible and Visual Signals Chart..................6 Operation ........................

  • Page 3: Dimensions

    ENFORCER E-37EV Alarm Pager System Specifications Number of codes Over 2 million (factory pre-set) Power 12VDC RF output power 4W max. Standby 10mA Current drain Active Frequency 27MHz Antenna impedance 50 Ω Range Up to mile in open air Dimensions ”x3...

  • Page 4: Wiring

    ENFORCER E-37EV Alarm Pager System TYPE 2: CB antenna (A Position) 1. Connect the male antenna plug of an optional CB antenna into the transmitter jack marked “ANT.” 2. Place the antenna selection switch in the “A” position. TYPE 3: Standard radio antenna (B Position) 1.

  • Page 5: Connection Diagram

    ENFORCER E-37EV Alarm Pager System Connection Diagram E-37ANT (Optional) Antenna Selection Antenna Switch Antenna (“ANT”) Manual Page Radio Radio (“RADIO”) Diode IN4004 White (Short): Radio Switched Power Lead White (Long): Power Antenna Fuse (2A) +12 VDC Red: Constant +12V to Fuse...

  • Page 6: Audible And Visual Signals Chart

    ENFORCER E-37EV Alarm Pager System Audible and Visual Signals Chart Receiver Display Transmitter Input Audible / Vibrator Page LED Zone LED Indicator Positive Trigger Green Green Groups of 9 Negative Trigger #1 Green Groups of 9 Green Negative Trigger #2...

  • Page 7: Warning

    ENFORCER E-37EV Alarm Pager System Alarm Paging  When triggered by either the purple (+), green (-), or blue (-) triggers, the receiver will beep (or vibrate) continuously for 1 minute in groups of 9.  The Page LED will indicate which transmitter is sending the signal (Green, Red, or Orange).

  • Page 8: Troubleshooting

    ENFORCER E-37EV Alarm Pager System Troubleshooting  Check that all connections are securely made No page signal  Check that the antenna is securely fastened  Check the receiver batteries  Possibly out of range – Move antenna to better position ...
