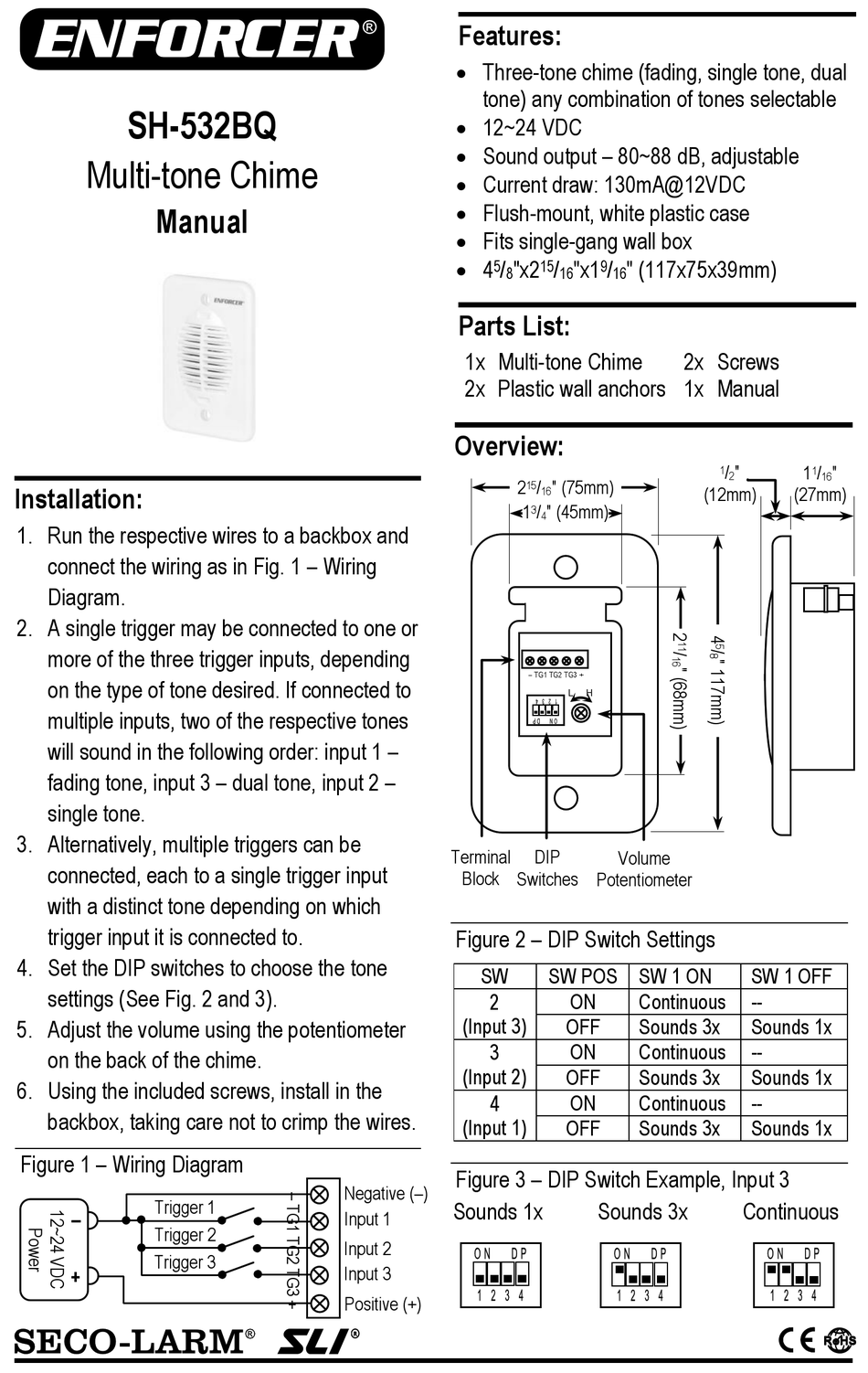

SECO-LARM ENFORCER SH-532BQ Manual

SH-532BQ
Multi-tone Chime
Manual
Installation:
1. Run the respective wires to a backbox and
:
connect the wiring as in Fig. 1 – Wiring
Diagram.
2. A single trigger may be connected to one or
more of the three trigger inputs, depending
on the type of tone desired. If connected to
multiple inputs, two of the respective tones
will sound in the following order: input 1 –
fading tone, input 3 – dual tone, input 2 –
single tone.
3. Alternatively, multiple triggers can be
connected, each to a single trigger input
with a distinct tone depending on which
trigger input it is connected to.
4. Set the DIP switches to choose the tone
settings (See Fig. 2 and 3).
5. Adjust the volume using the potentiometer
on the back of the chime.
6. Using the included screws, install in the
backbox, taking care not to crimp the wires.
Figure 1 – Wiring Diagram
Trigger 1
–
Trigger 2
Trigger 3
+
Features:
 Three-tone chime (fading, single tone, dual
tone) any combination of tones selectable
 12~24 VDC
 Sound output – 80~88 dB, adjustable
 Current draw: 130mA@12VDC
 Flush-mount, white plastic case
 Fits single-gang wall box
 4
/
5
8

Parts List:

1x Multi-tone Chime
2x Plastic wall anchors 1x Manual
Overview:
:
Terminal
Block
Figure 2 – DIP Switch Settings
SW
2
(Input 3)
3
(Input 2)
4
(Input 1)
Figure 3 – DIP Switch Example, Input 3
Negative (–)
Sounds 1x
Input 1
Input 2
Input 3
Positive (+)
®
"x2 / "x1 / " (117x75x39mm)
15 9
16 16
2 / " (75mm)
15
16
1 / " (45mm)
3
4
– TG1 TG2 TG3 +
L H
DIP
Volume
Switches Potentiometer
SW POS SW 1 ON
ON Continuous
OFF Sounds 3x
ON Continuous
OFF Sounds 3x
ON Continuous
OFF Sounds 3x
Sounds 3x
2x Screws
/ " 1 / "
1 1
2 16
(12mm) (27mm)
SW 1 OFF
--
Sounds 1x
--
Sounds 1x
--
Sounds 1x
Continuous
