Glass Break / Audio Discriminator
ENFORCER 190
Installation Manual

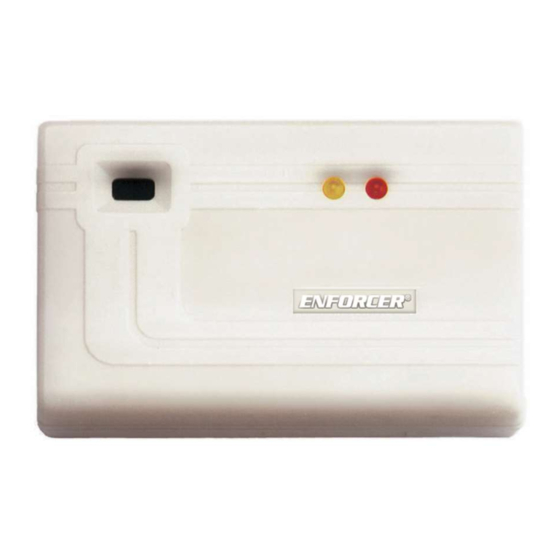

The ENFORCER 190 is the most convenient audio glass break detector for glass break protection
on the market today. Designed with the latest technology, it is the installer's answer to the problem
of sensitivity setting and false alarms. A single convenient ENFORCER 190 is enough to protect all
the windows and doors within a 15ft radius when mounted on the ceiling, eliminating the need to
install unsightly individual detectors on each pane of glass. Sensitivity setting is extremely simple
with SECO-LARM's yellow turbulence LED (patented) which eliminates the need for external test
meters. The relay output is programmed for a 2-second reset.
 Yellow turbulence led (patented) allows fast and easy sensitivity adjustment without external
test meter
 Yellow LED gives pinpoint sensitivity adjustment to eliminate false alarms
 Detects the high-frequency sound of glass breaking
 Wide 25ft radius protection area if ceiling-mounted, 45ft if wall-mounted
 Red trigger LED
 Tamper proof case
 Installs without RF-shielded cable
 Compact size and attractive appearance allow installation anywhere
Protected by US Patent 4700332, UK Patents 2177797 and 1041888, and Taiwan Patent 50612

Advertisement

loading
Need help?

Need help?

Do you have a question about the ENFORCER 190 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for SECO-LARM ENFORCER 190

  • Page 1 Designed with the latest technology, it is the installer's answer to the problem of sensitivity setting and false alarms. A single convenient ENFORCER 190 is enough to protect all the windows and doors within a 15ft radius when mounted on the ceiling, eliminating the need to install unsightly individual detectors on each pane of glass.
  • Page 2 3 – Relay N.O.* 2 – Relay COM* 1 – Relay N.C.* " (27mm) (Drawings not to scale) " (115mm) Sensitivity adjustment *For N.O. output, use terminals 2 and 3. potentiometer For N.C. output, use terminals 1 and 2. SECO-LARM U.S.A., Inc.
  • Page 3 5. Use either terminals 2 and 3 for N.O. output or 1 and 2 for N.C. output, but not both. Setting the Sensitivity The ENFORCER 190 includes SECO-LARM's unique patented yellow turbulence LED. This LED flashes when environmental noise is high enough to cause false alarms, thereby allowing instant sensitivity setting without the use of a special external test meter.
  • Page 4 SECO-LARM’s obligation is limited to the repair or replacement of any defective part if the unit is returned, transportation prepaid, to SECO-LARM. This Warranty is void if damage is caused by or attributed to acts of God, physical or electrical misuse or abuse, neglect, repair or alteration, improper or abnormal usage, or faulty installation, or if for any other reason SECO-LARM determines that such equipment is not operating properly as a result of causes other than defects in material and workmanship.
